Technical Specifications
| Parameter | Specification |
|---|---|

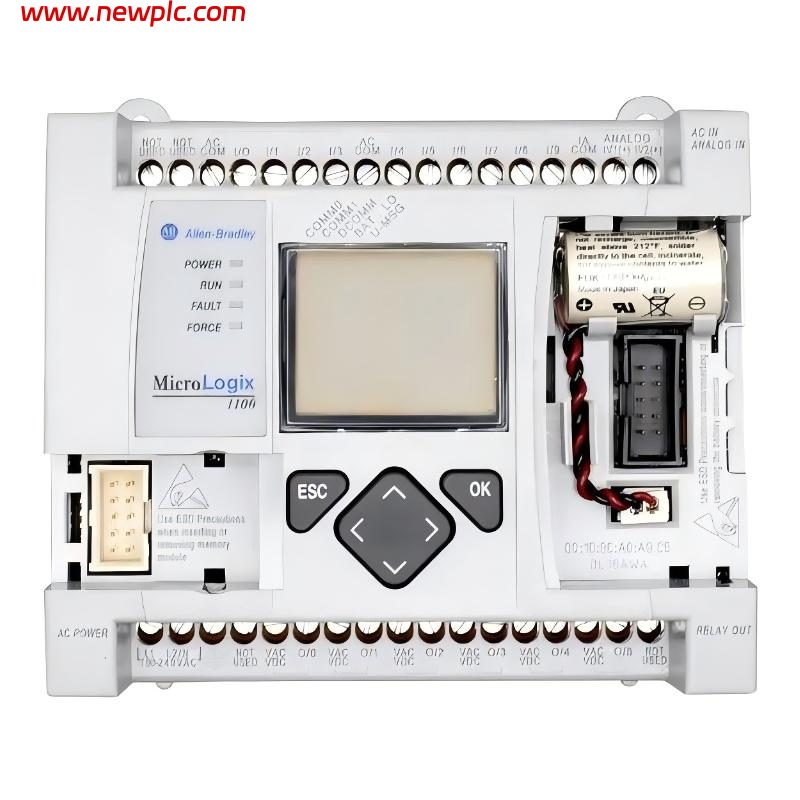

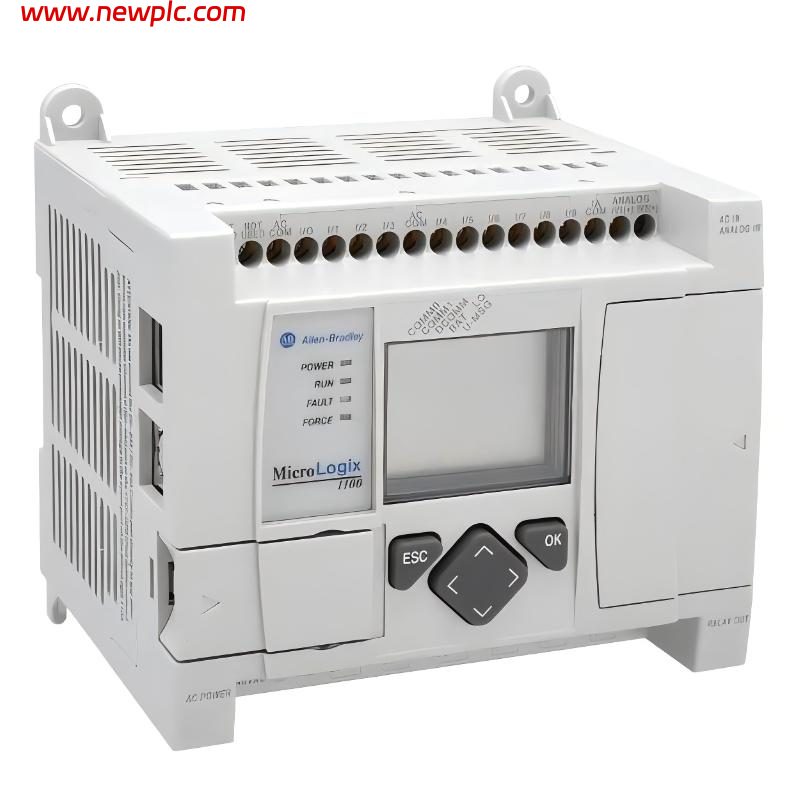

| Model | Allen-Bradley 1763-L16AWA |
| Product Type | MicroLogix 1100 Programmable Controller |
| Series | MicroLogix 1100 |
| Integrated I/O | 16 Points |
| Digital Inputs | 10 × 120V AC Inputs |
| Relay Outputs | 6 Relay Outputs |
| Power Supply | 85…264V AC |
| Nominal Supply Voltage | 120/240V AC |
| Input Frequency | 47…63 Hz |
| User Memory | 4 MB |
| Data Logging | Supported via SD Card |

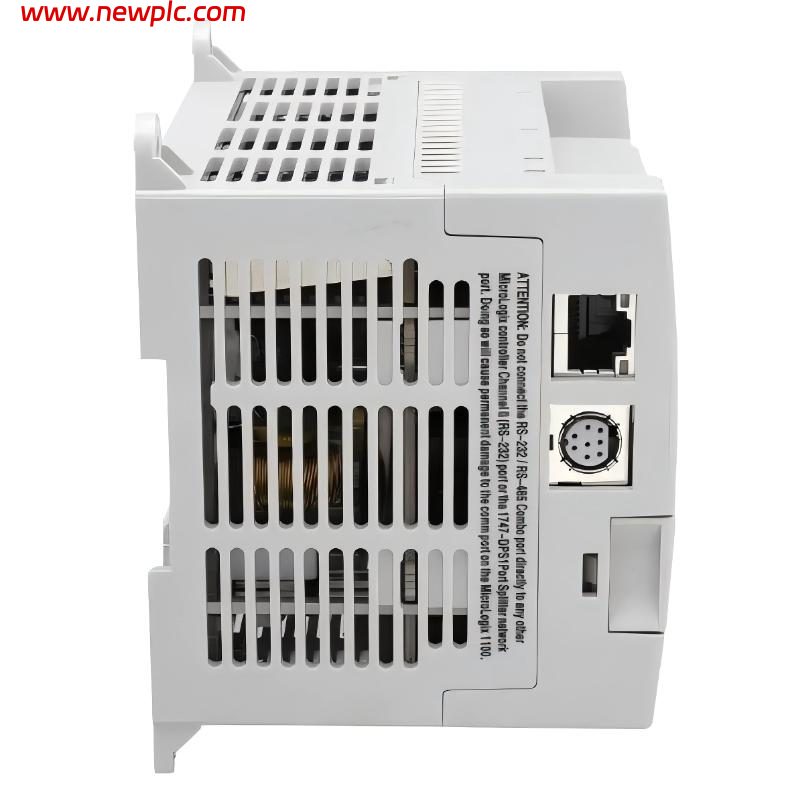

| Embedded Ethernet Port | Yes |
| Ethernet Speed | 10/100 Mbps |
| Serial Port | RS-232/RS-485 Combo Port |
| Supported Protocols | EtherNet/IP, DF1, Modbus RTU, DH-485, ASCII |
| LCD Display | Built-In LCD with Keypad |
| Real-Time Clock | Built-In |
| Expansion I/O Support | Up to 4 Expansion Modules |
| Relay Output Rating | 2 A @ 30V DC / 125…240V AC |
| Isolation Voltage | 1200V |
| Programming Software | RSLogix 500 |
| Memory Backup | SD Card & Flash Memory |
| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Rating | IP20 |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 5 g |
| Shock Resistance | 30 g Operating |
| Dimensions (H × W × D) | 90 × 195 × 87 mm |
| Weight | Approx. 0.9 kg |
| Certifications | UL, CE, CSA, Class I Div 2 |
FAQ
FAQ
Q1: What is the primary function of the 1763-L16AWA?
The 1763-L16AWA is a compact MicroLogix 1100 PLC used for small industrial automation and machine control applications.
Q2: What does “AWA” indicate in the part number?
- A = AC power supply
- WA = AC digital inputs
- A/R = Relay outputs
This means the controller uses AC power, AC inputs, and relay outputs.
Q3: Does the controller include Ethernet communication?
Yes. The 1763-L16AWA includes an embedded 10/100 Mbps EtherNet/IP communication port.
Q4: How many built-in I/O points are available?
The controller includes 16 built-in I/O points consisting of 10 AC inputs and 6 relay outputs.
Q5: Can the controller be expanded with additional modules?
Yes. The controller supports up to 4 expansion I/O modules.
Q6: Which software is used to program the controller?
The PLC is programmed using RSLogix 500 software.
Q7: What are the physical dimensions of the controller?
The dimensions are approximately 90 mm (H) × 195 mm (W) × 87 mm (D).
Q8: Is the 1763-L16AWA still available?
No. Rockwell Automation has discontinued the MicroLogix 1100 family, including the 1763-L16AWA.
