Technical Specifications
| Parameter | Specification |
|---|---|

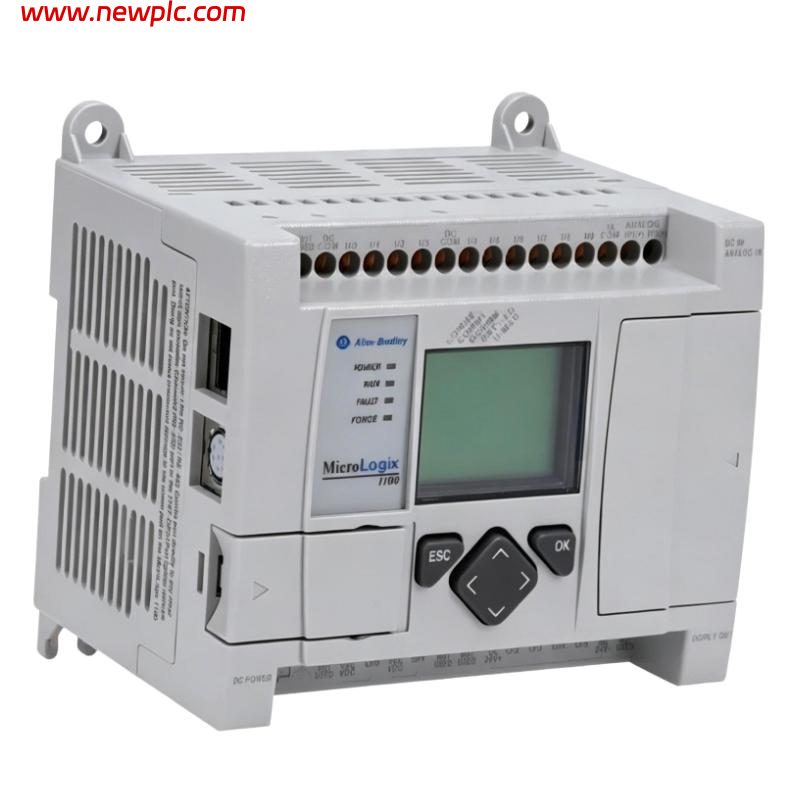

| Model | Allen-Bradley 1763-L16BBB |
| Product Type | MicroLogix 1100 Programmable Controller |
| Series | MicroLogix 1100 |
| Integrated I/O | 16 Points |
| Digital Inputs | 10 × 24V DC Inputs |
| Digital Outputs | 6 × 24V DC Transistor Outputs |
| Power Supply | 24V DC |
| Supply Voltage Range | 20.4…26.4V DC |
| Input Type | Sink/Source DC Inputs |
| Output Type | Sourcing Transistor Outputs |
| Output Current Rating | 0.5 A per Output |
| User Memory | 4 MB |
| Data Logging | Supported via SD Card |
| Embedded Ethernet Port | Yes |
| Ethernet Speed | 10/100 Mbps |

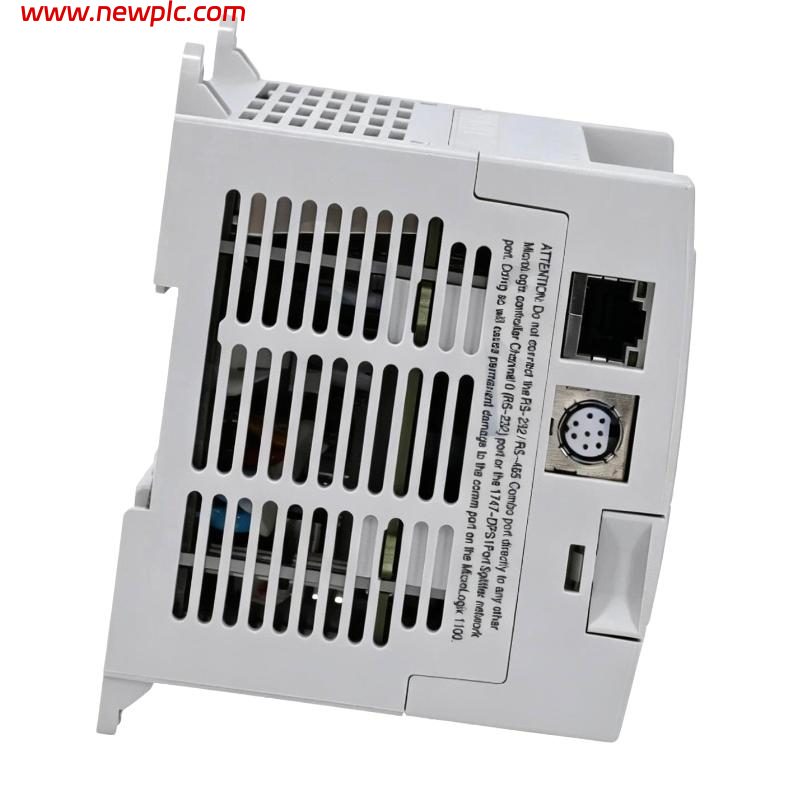

| Serial Port | RS-232/RS-485 Combo Port |
| Supported Protocols | EtherNet/IP, DF1, Modbus RTU, DH-485, ASCII |
| LCD Display | Built-In LCD with Keypad |
| Real-Time Clock | Built-In |
| Expansion I/O Support | Up to 4 Expansion Modules |
| High-Speed Counters | 6 Inputs |
| PTO/PWM Outputs | Supported |
| Isolation Voltage | 1200V |
| Programming Software | RSLogix 500 |
| Memory Backup | SD Card & Flash Memory |

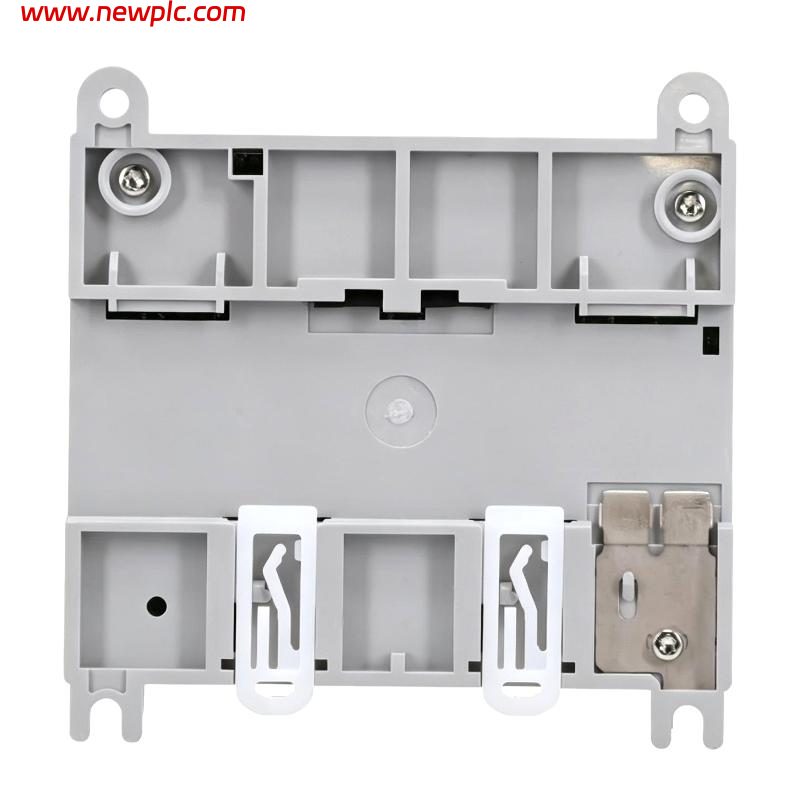

| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Rating | IP20 |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 5 g |
| Shock Resistance | 30 g Operating |
| Dimensions (H × W × D) | 90 × 195 × 87 mm |
| Weight | Approx. 0.9 kg |
| Certifications | UL, CE, CSA, Class I Div 2 |
FAQ
FAQ
Q1: What is the primary function of the 1763-L16BBB?
The 1763-L16BBB is a compact MicroLogix 1100 PLC designed for small industrial automation and machine control applications using DC power and transistor outputs.
Q2: What does “BBB” indicate in the part number?
- B = 24V DC power supply
- B = 24V DC inputs
- B = 24V DC transistor outputs
This means the controller operates entirely on 24V DC control power.
Q3: Does the controller include Ethernet communication?
Yes. The controller includes an embedded 10/100 Mbps EtherNet/IP communication port.
Q4: How many built-in I/O points are included?
The controller includes 16 integrated I/O points consisting of 10 DC inputs and 6 DC transistor outputs.
Q5: Are the outputs relay or transistor type?
The outputs are sourcing transistor outputs designed for high-speed DC switching applications.
Q6: Can the controller support high-speed applications?
Yes. The controller supports PTO (Pulse Train Output), PWM, and high-speed counter functions.
Q7: What are the physical dimensions of the controller?
The dimensions are approximately 90 mm (H) × 195 mm (W) × 87 mm (D).
Q8: Is the 1763-L16BBB still available?
No. Rockwell Automation has discontinued the MicroLogix 1100 family, including the 1763-L16BBB.
