Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MicroLogix 1100 |

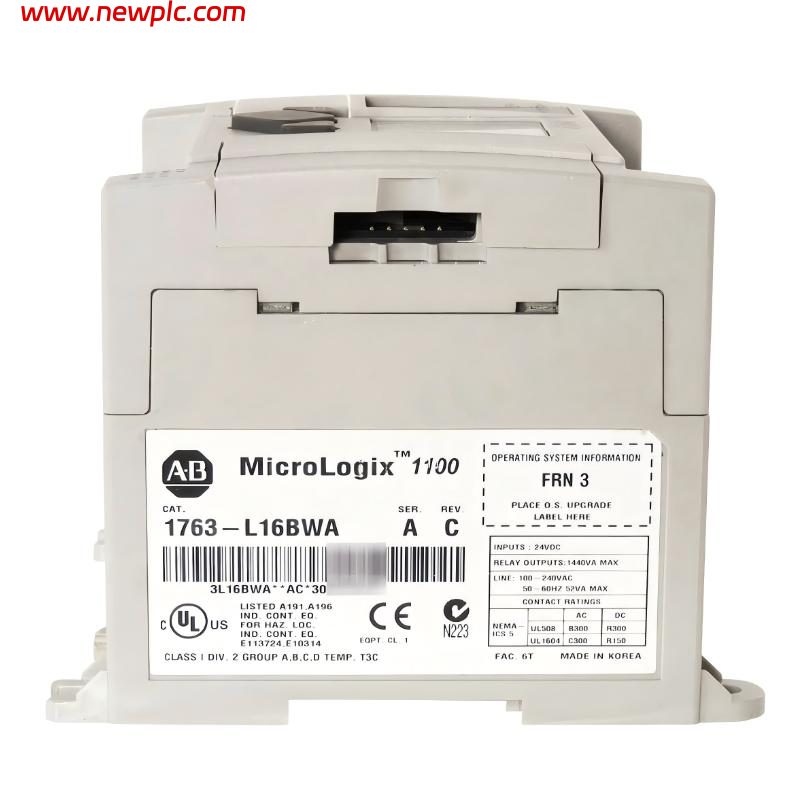

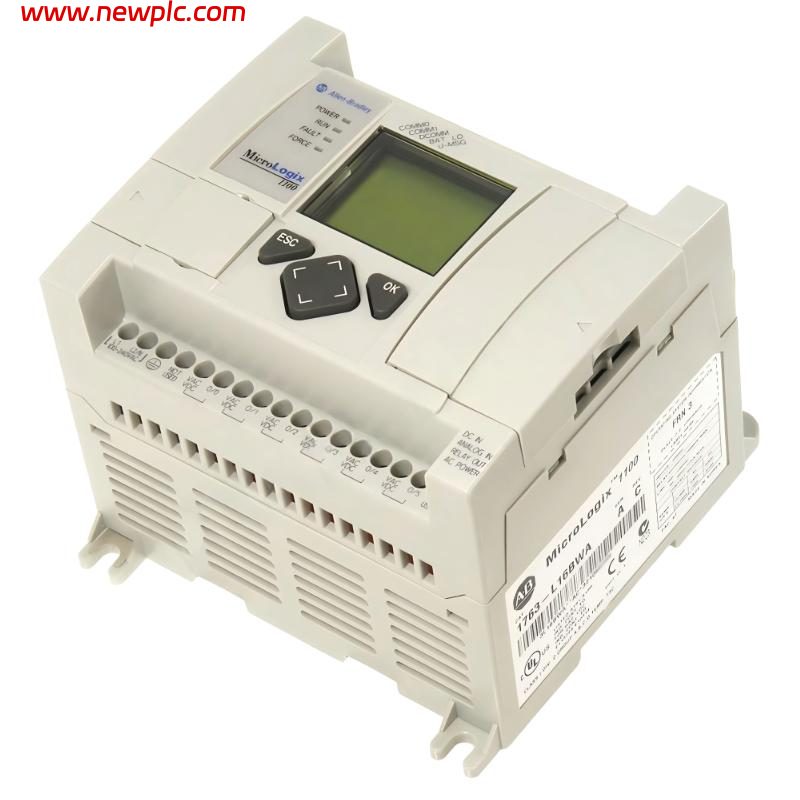

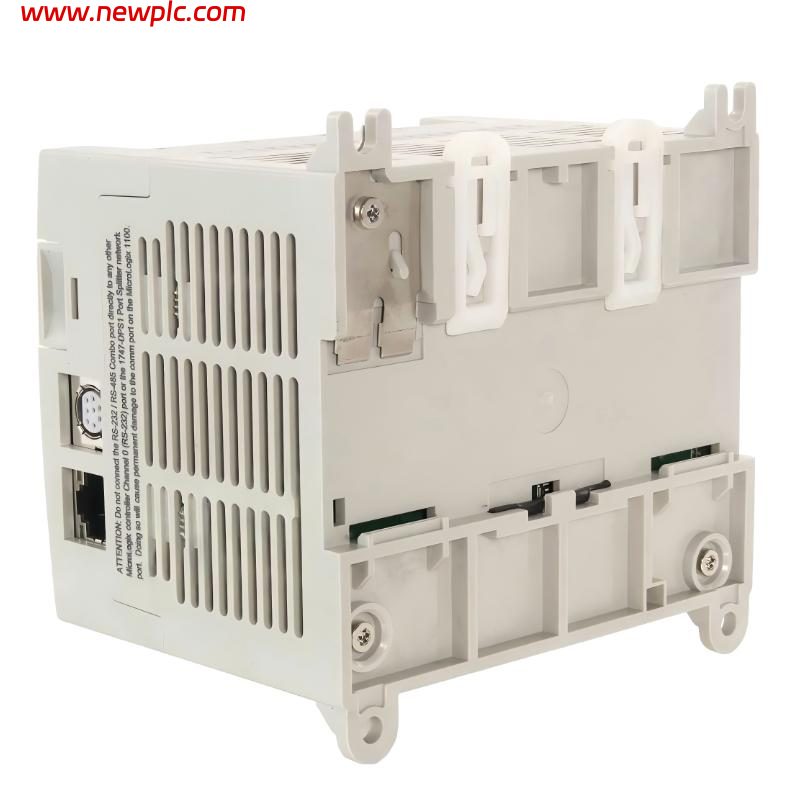

| Model Number | 1763-L16BWA |
| Controller Type | Programmable Logic Controller (PLC) |
| Power Supply | 120/240V AC |
| Digital Inputs | 10 Inputs |
| Digital Outputs | 6 Relay Outputs |
| Analog Inputs | 2 Embedded Analog Inputs |
| Communication Ports | Ethernet Port, RS-232 Serial Port |
| Memory Capacity | 4 KB User Memory |
| Expansion Capability | Supports MicroLogix Expansion I/O Modules |
| Programming Software | RSLogix 500 |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% Non-Condensing |
| Dimensions | Approx. 118 x 90 x 87 mm |
| Weight | Approx. 0.7 kg |
| Certifications | CE, UL, CSA, Class I Division 2 |
| Application | Small to Mid-Sized Industrial Automation Systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 1763-L16BWA mainly used for?
A1: The 1763-L16BWA is commonly used in small industrial automation applications such as conveyor systems, packaging equipment, material handling, and machine control.
Q2: Does the 1763-L16BWA support Ethernet communication?
A2: Yes. The controller includes a built-in Ethernet port, allowing easy integration with HMIs, SCADA systems, and other industrial devices.
Q3: How many I/O points are available on this PLC?
A3: The unit comes with 10 digital inputs and 6 relay outputs, along with 2 embedded analog inputs.
Q4: Can additional I/O modules be connected to the controller?
A4: Yes. The 1763-L16BWA supports expansion modules from the MicroLogix 1100 series to increase I/O capacity.
Q5: What programming software is compatible with this model?
A5: The controller is programmed using RSLogix 500 software from Rockwell Automation.
Q6: Is the 1763-L16BWA suitable for harsh industrial environments?
A6: Yes. It is designed for industrial use and supports a wide operating temperature range with industrial certifications such as UL and CE.
Q7: What type of outputs does the controller use?
A7: This model uses relay outputs, making it suitable for controlling a variety of AC and DC loads.
Q8: Can the 1763-L16BWA be mounted on a DIN rail?
A8: Yes. The controller supports both DIN rail mounting and panel mounting for flexible installation options.
