Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Number | 1763-NC01 |
| Product Type | Communication Cable |
| Series | MicroLogix Accessories |
| Cable Function | PLC Communication and Programming Cable |
| Connector Type (Controller Side) | 8-Pin Mini-DIN |
| Connector Type (Device Side) | 6-Pin Phoenix Connector |
| Communication Interface | RS-485 |
| Cable Configuration | Null-Modem Communication Cable |
| Compatible Controllers | MicroLogix 1000, MicroLogix 1100, MicroLogix 1400 |
| Typical Application | PLC Programming and Serial Communication |
| Cable Length | Approx. 0.3 m (30 cm) |
| Data Transmission | Serial Communication |
| Mounting Style | External Connection Cable |
| Operating Environment | Industrial Automation Systems |
| Dimensions | Approx. 300 mm Cable Length |
| Weight | Approx. 0.08 – 0.18 kg |
| Certification | UL Listed |
| Lifecycle Status | Active Mature |
FAQ
FAQ
Q1: What is the Allen-Bradley 1763-NC01 used for?
A1: The 1763-NC01 is mainly used for communication between MicroLogix PLC controllers and RS-485 devices or programming interfaces.
Q2: Which PLC models are compatible with the 1763-NC01 cable?
A2: This cable is compatible with MicroLogix 1000, MicroLogix 1100, and MicroLogix 1400 controllers.
Q3: What type of connector does the 1763-NC01 use?

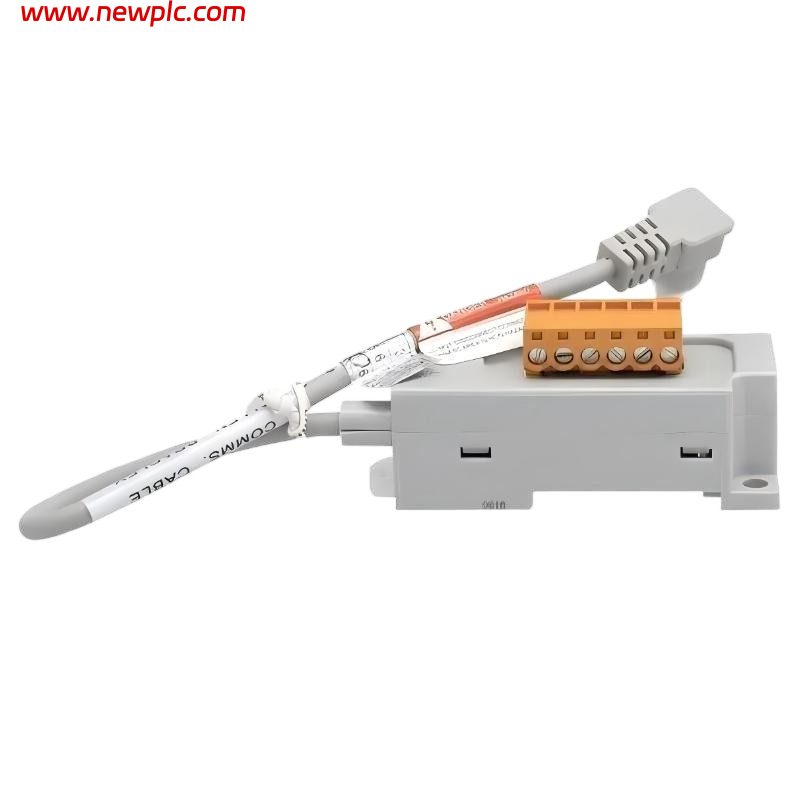

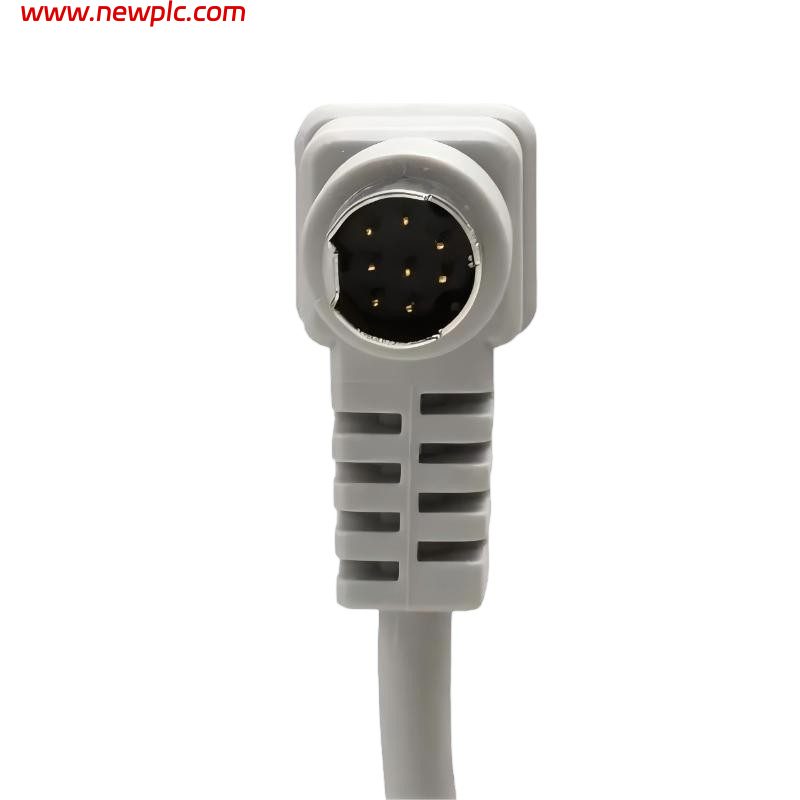

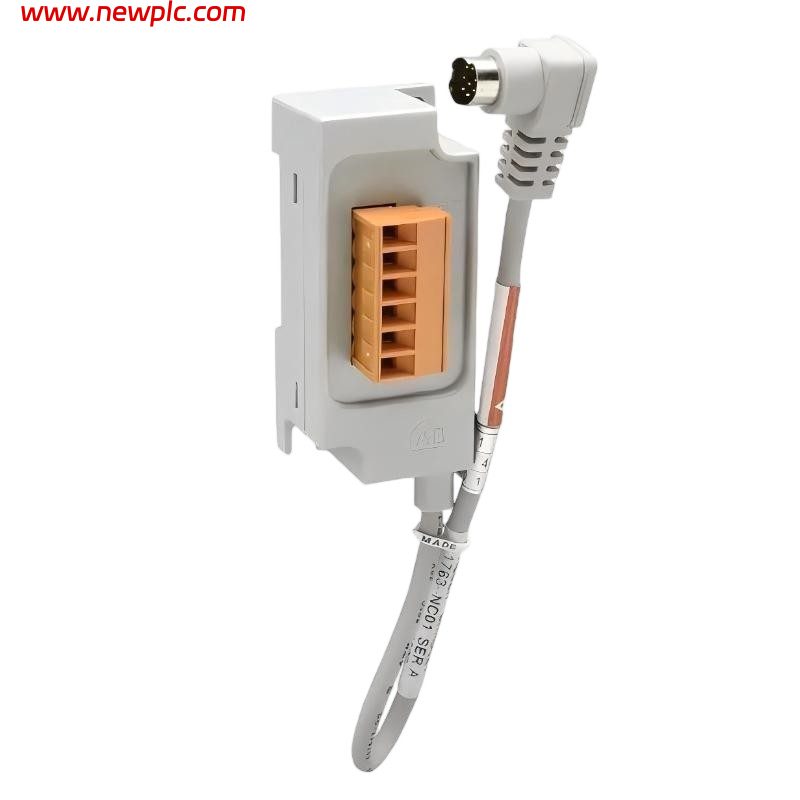

A3: It features an 8-pin Mini-DIN connector on the controller side and a 6-pin Phoenix connector on the opposite side.
Q4: Does the 1763-NC01 support RS-485 communication?
A4: Yes. The cable is specifically designed for RS-485 serial communication applications.
Q5: Can the 1763-NC01 be used for PLC programming?
A5: Yes. It can be used for controller programming, monitoring, and communication setup in MicroLogix systems.
Q6: What is the standard cable length of the 1763-NC01?
A6: The standard cable length is approximately 0.3 meters (30 centimeters).
Q7: Is the 1763-NC01 suitable for industrial environments?
A7: Yes. The cable is designed for industrial automation applications and supports reliable communication in factory environments.
Q8: What communication protocol does the 1763-NC01 support?
A8: The cable supports RS-485 serial communication commonly used in industrial control systems.
