Technical Specifications
| Parameter | Specification |
|---|---|

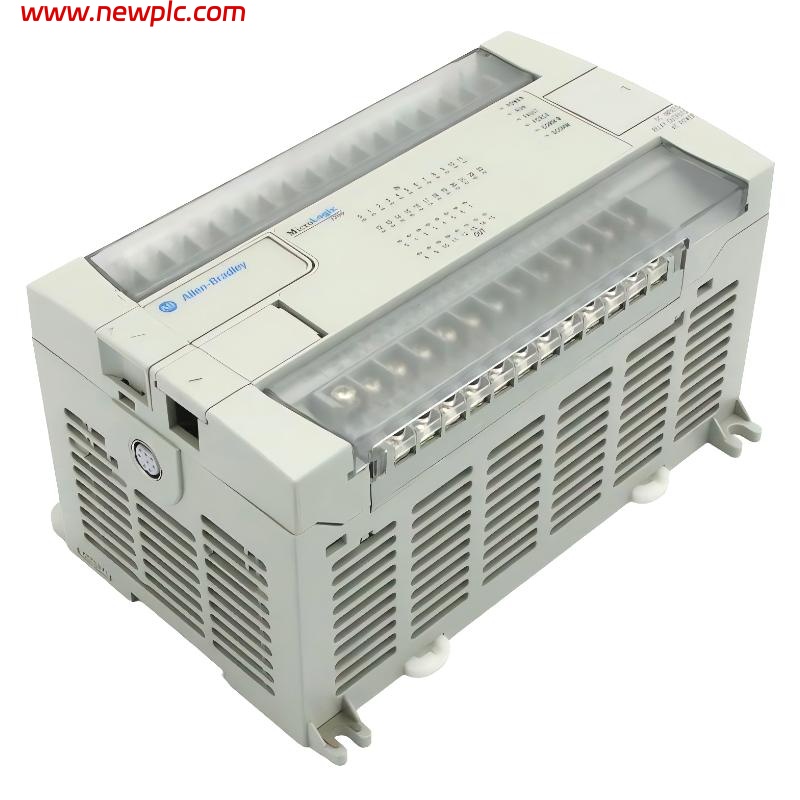

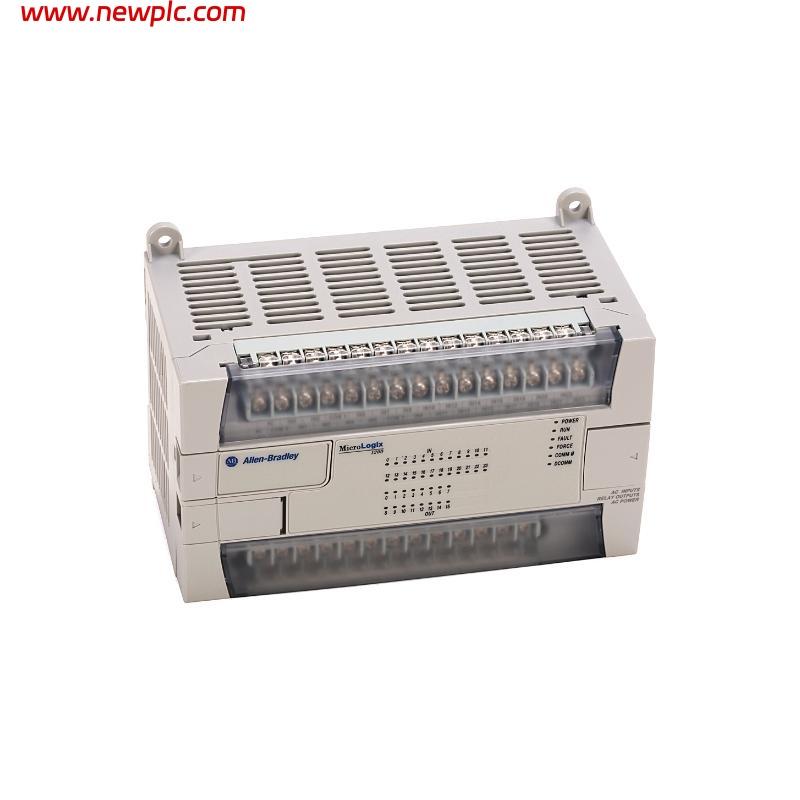

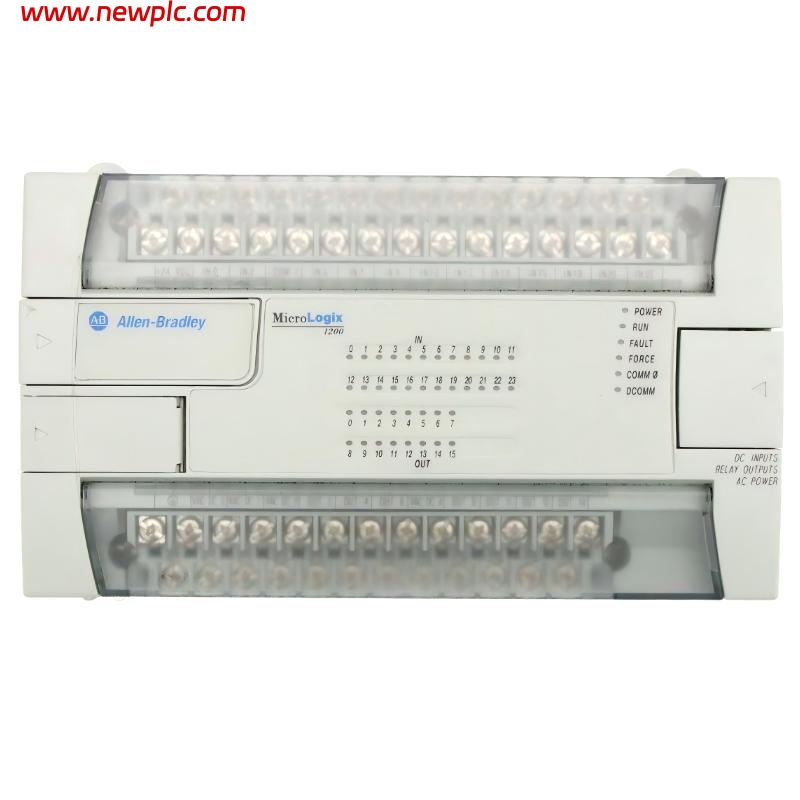

| Product | Allen-Bradley 1762-L40BWA MicroLogix 1200 PLC Controller |
| Controller Type | MicroLogix 1200 fixed I/O programmable controller |
| Power Supply Input | 120–240 V AC, 47–63 Hz |
| Power Consumption | ~85 VA typical (with inrush current at startup) |
| Digital Inputs | 24 × 24 V DC inputs (20 standard + 4 high-speed) |
| Input Circuit Type | 24 V DC sink/source |
| Digital Outputs | 16 × relay outputs |
| Relay Contact Rating | 24–125 V DC or 120–240 VAC |
| Communication Port | 1 × 8-pin mini-DIN serial (DF1, DH-485, Modbus RTU/ASCII) |
| User Memory | ~6 KB user memory |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Mounting | DIN rail or panel mount |
| Enclosure Rating | IP20 |
| Weight | ~0.91 kg |
| Dimensions (H × W × D) | 98 mm × 126 mm × 196 mm |
| Total I/O Points | 40 (24 inputs + 16 outputs) |
| Lifecycle Status | Discontinued |
FAQ
FAQ
Q1. What is the 1762-L40BWA used for?
It is a MicroLogix 1200 PLC used for medium-scale discrete automation with integrated 40 I/O points.
Q2. What type of power supply does it require?
It operates on 120–240 VAC input power.
Q3. How many inputs and outputs are available?
It provides 24 digital inputs and 16 relay outputs.
Q4. Are high-speed inputs supported?
Yes, 4 of the inputs are designed for high-speed signal processing.
Q5. What communication options are available?
It includes a serial port supporting DF1, DH-485, and Modbus RTU/ASCII protocols.
Q6. What are the installation options?
The unit can be mounted on a DIN rail or directly on a panel.
Q7. What are the dimensions and weight?
Dimensions: 98 mm × 126 mm × 196 mm; weight: approximately 0.91 kg.
Q8. Is this model still available from the manufacturer?
No, it has been discontinued but is still available through secondary markets.
