Technical Specifications
| Parameter | Specification |
|---|---|

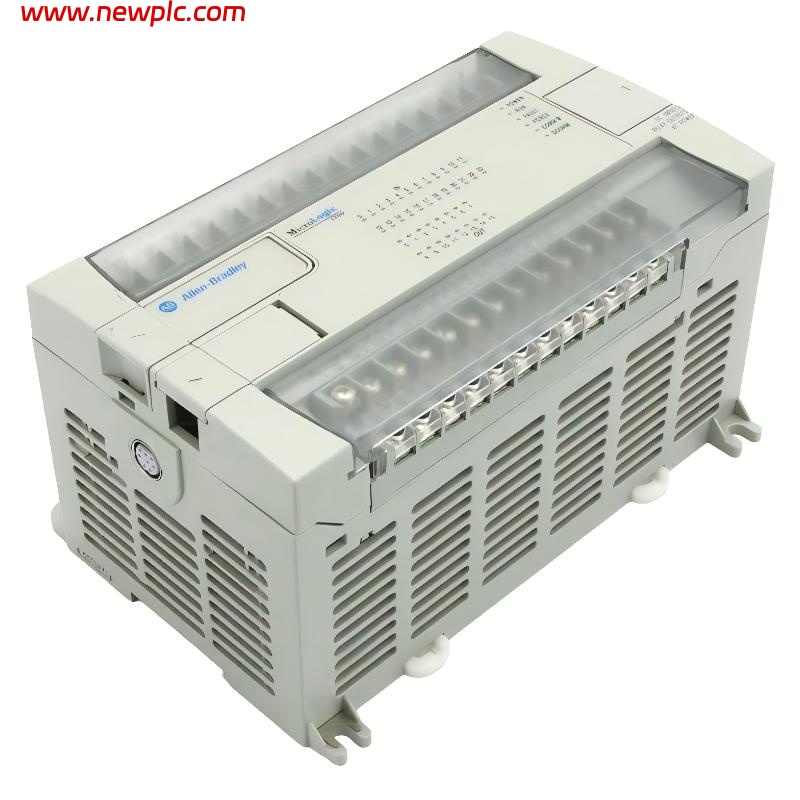

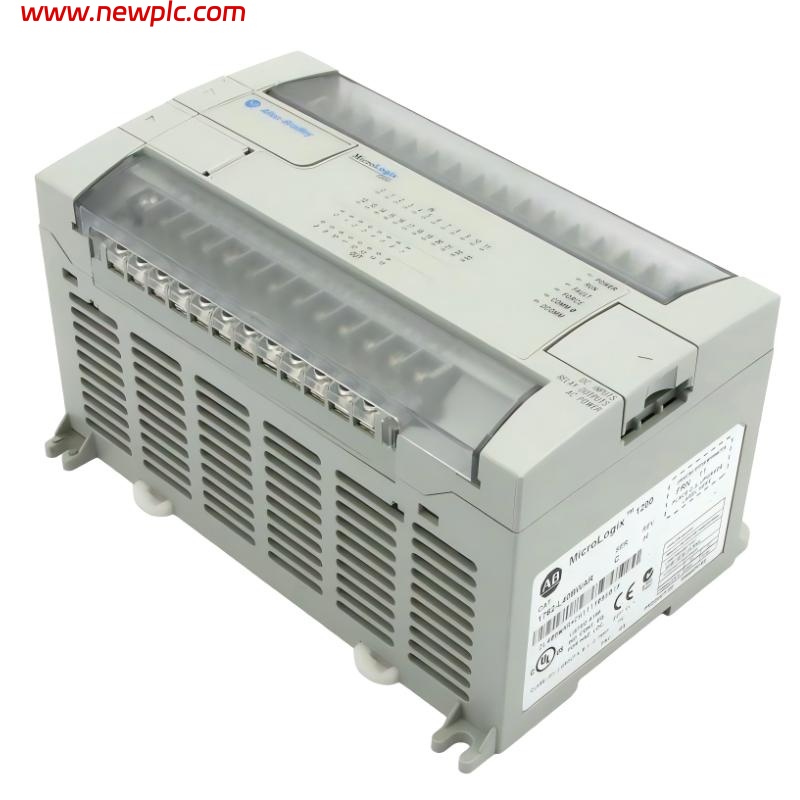

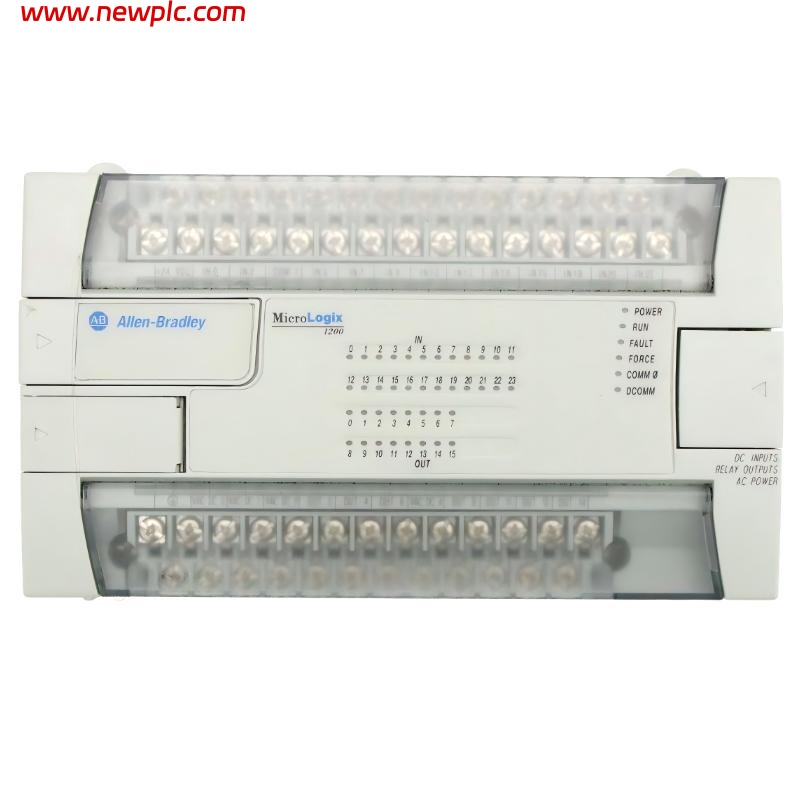

| Product | Allen-Bradley 1762-L40BWAR MicroLogix 1200 PLC Controller |
| Controller Type | MicroLogix 1200 fixed I/O programmable controller |
| Power Supply Input | 100–240 V AC, 47–63 Hz |
| Power Consumption | ~82 VA typical |
| Digital Inputs | 24 × 24 V DC inputs (20 standard + 4 high-speed) |
| Input Circuit Type | 24 V DC sink/source |
| Digital Outputs | 16 × relay outputs |
| Output Circuit Type | Relay outputs |
| Communication Ports | 2 × 8-pin mini-DIN serial (DF1, DH-485, Modbus RTU/ASCII) |
| User Memory | ~6 KB |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Mounting | DIN rail or panel mount |
| Enclosure Rating | IP20 |
| Weight | ~0.89 kg |
| Dimensions (H × W × D) | 95 mm × 127 mm × 196 mm |
| Total I/O Points | 40 (24 inputs + 16 outputs) |
| Sensor Power Output | 24 V DC @ 400 mA max |
FAQ
FAQ
Q1. What is the 1762-L40BWAR mainly used for?
It is a MicroLogix 1200 PLC designed for small to mid-scale industrial automation with integrated 40 I/O points.
Q2. What power supply does this controller require?
It operates on 100–240 VAC input power.
Q3. How many inputs and outputs are available?
It includes 24 digital inputs (20 standard + 4 high-speed) and 16 relay outputs.
Q4. Does the controller support high-speed input signals?
Yes, 4 inputs are dedicated high-speed channels for fast signal processing.
Q5. What communication interfaces are available?
It provides dual serial ports supporting DF1, DH-485, and Modbus protocols.
Q6. What is the operating temperature range?
The controller operates from 0 °C to 55 °C.
Q7. What are the physical dimensions and weight?
Dimensions: 95 mm × 127 mm × 196 mm; weight: approximately 0.89 kg.
Q8. Can it be expanded with additional I/O modules?
Yes, it supports expansion modules for extending I/O capacity within the MicroLogix 1200 system.
