Technical Specifications
| Parameter | Specification |
|---|---|

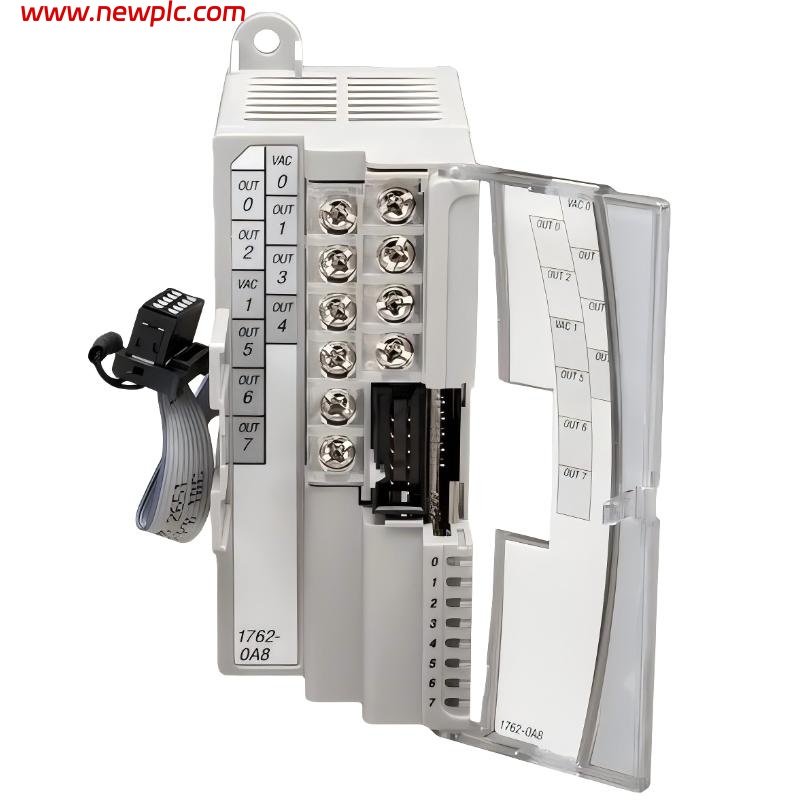

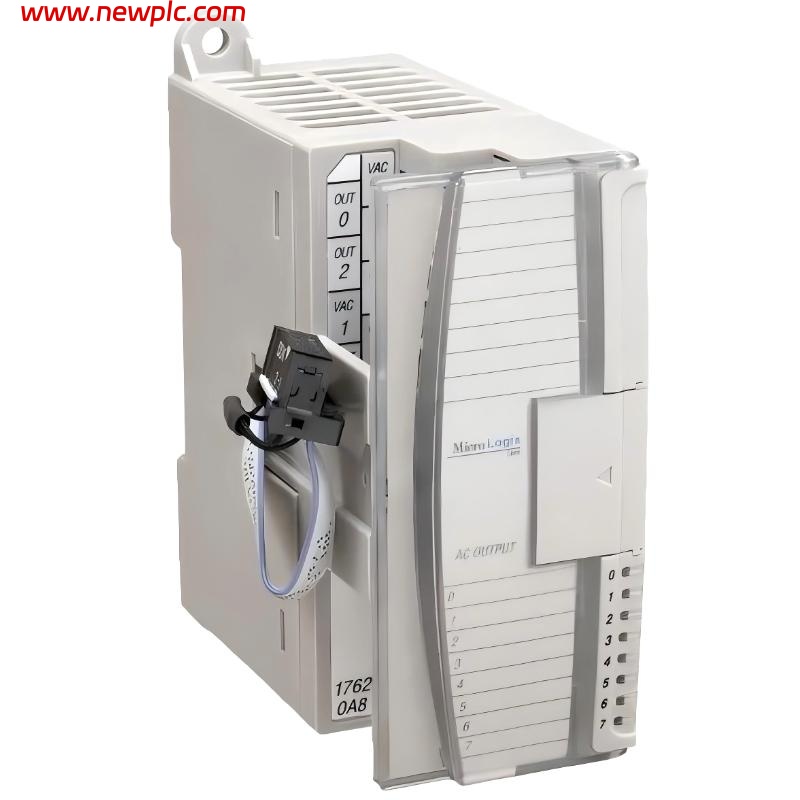

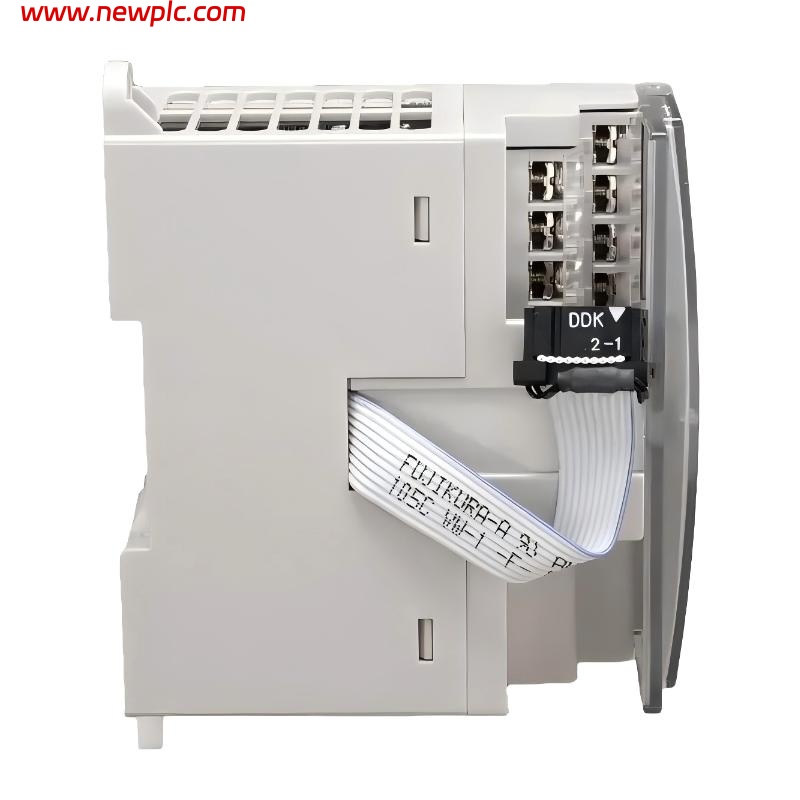

| Product | Allen-Bradley 1762-OA8 MicroLogix Digital Output Module |
| Module Type | Digital AC output expansion module |
| Output Channels | 8 points |
| Output Type | 120/240 V AC Triac (solid-state) |
| Operating Voltage Range | 85–265 V AC, 47–63 Hz |
| Output Current (per point) | 0.5 A max @ 30 °C |
| Output Current (per module) | 4 A max @ 30 °C |
| Output Current (per common) | 2.0 A max |
| Surge Current | 5 A max (25 ms) |
| Signal Delay | On: 0.5 cycle / Off: 0.5 cycle |
| Isolation | Group-to-group and backplane isolation (reinforced) |
| Bus Current Draw | 115 mA @ 5 V DC |
| Heat Dissipation | ~2.9 W |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Mounting | DIN rail |
| Connection Type | Screw terminals |
| Weight | ~0.215 kg |
| Dimensions (H × W × D) | 90 mm × 40.4 mm × 87 mm |
FAQ
FAQ
Q1. What is the 1762-OA8 module used for?
It is an AC digital output module used to control field devices such as lamps, relays, and contactors.
Q2. How many outputs does this module provide?
It provides 8 isolated AC output channels.
Q3. What type of outputs does it use?
It uses solid-state Triac outputs designed for 120/240 VAC loads.
Q4. What is the maximum current per output point?
Each output can handle up to 0.5 A.
Q5. Does the module provide isolation?
Yes, outputs are isolated in groups and from the backplane.
Q6. What is the operating voltage range?
85 V to 265 V AC at 47–63 Hz.
Q7. What are the dimensions and weight?
Dimensions: 90 mm × 40.4 mm × 87 mm; weight: approximately 0.215 kg.
Q8. What type of loads is it suitable for?
It is suitable for AC loads such as pilot lights, solenoids, and small motors.
