Technical Specifications
| Parameter | Specification |
|---|---|

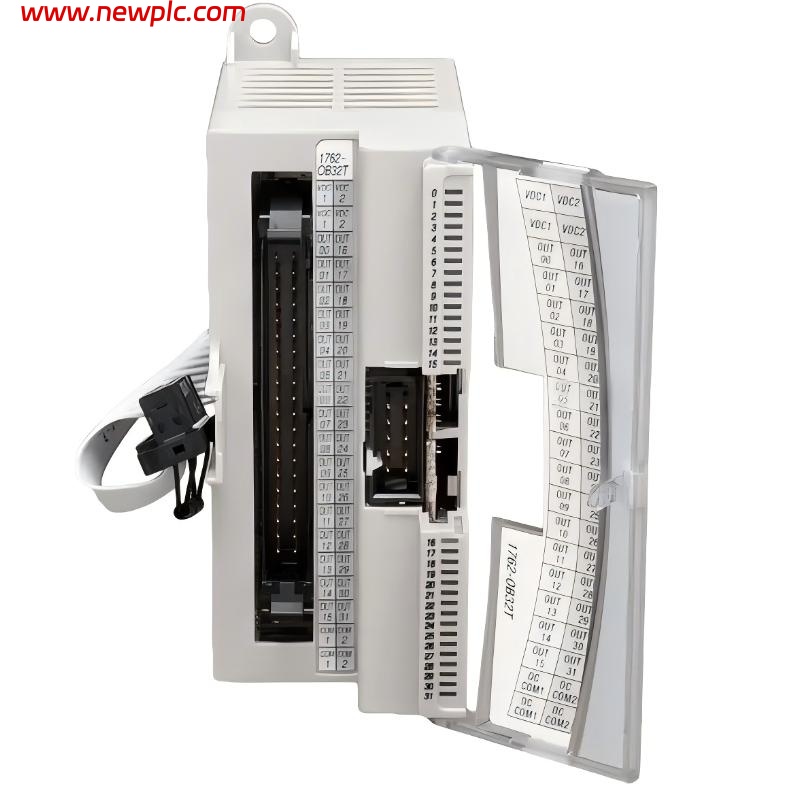

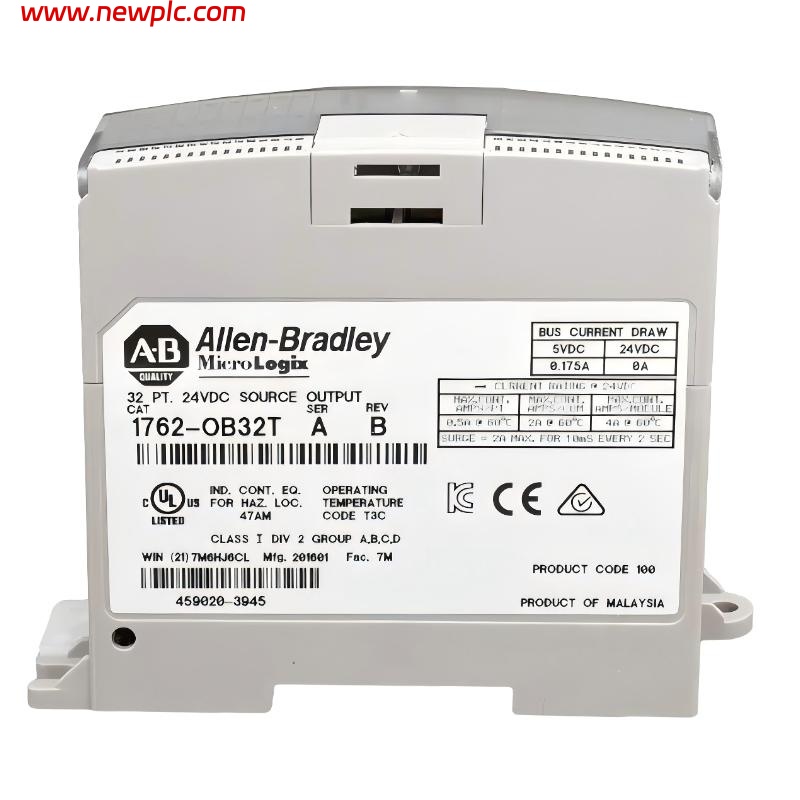

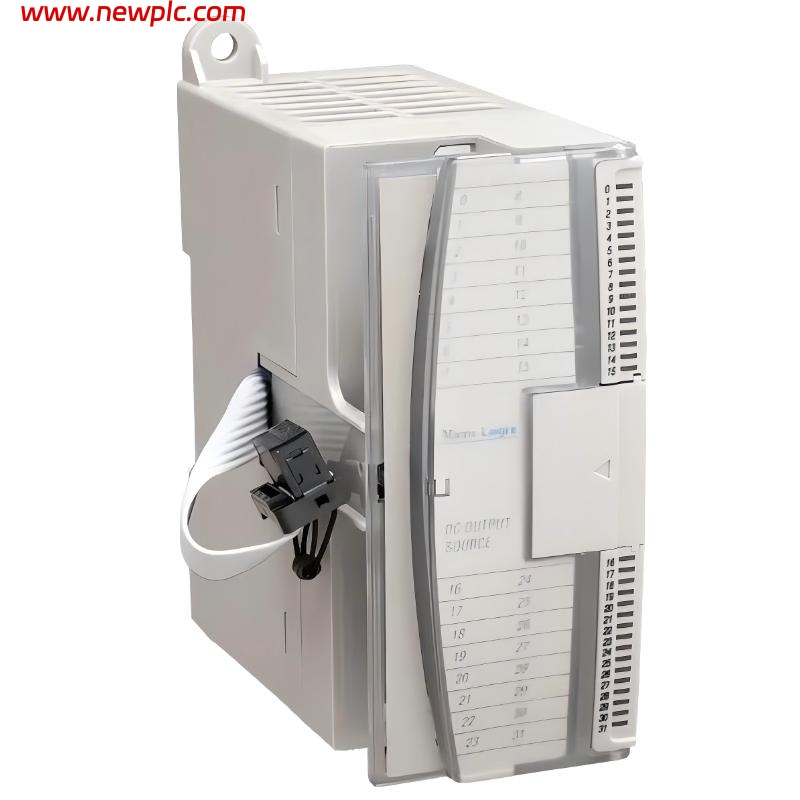

| Product | Allen-Bradley 1762-OB32T MicroLogix Digital Output Module |
| Module Type | 24 V DC sourcing transistor output module |
| Output Channels | 32 digital outputs (2 groups of 16) |
| Output Voltage Range | 10.2–26.4 V DC |
| Output Type | DC sourcing (transistor) |
| Output Current (per point) | 0.5 A max |
| Output Current (per module) | 4.0 A max |
| Output Current (per common) | 2.0 A max |
| Minimum Load Current | 1 mA |
| Signal Delay | ON: 0.5 ms / OFF: 4.0 ms |
| Bus Current Draw | 175 mA @ 5 V DC |
| Heat Dissipation | ~3.4 W |
| Isolation | Group-to-group and backplane isolation |
| Operating Temperature | –20 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Mounting | DIN rail or panel mount |
| Connection Type | Screw terminals |
| Weight | ~0.20 kg |
| Dimensions (H × W × D) | 90 mm × 40.4 mm × 87 mm |
FAQ
FAQ
Q1. What is the function of the 1762-OB32T module?
It is a high-density digital output module used to control external DC devices such as relays, solenoids, and indicators.
Q2. How many outputs does the module provide?
It provides 32 digital DC outputs divided into two isolated groups.
Q3. What type of output technology is used?
It uses sourcing transistor outputs designed for 24 V DC loads.
Q4. What is the maximum current per output channel?
Each channel can handle up to 0.5 A.
Q5. What is the operating voltage range?
The module operates within 10.2 V DC to 26.4 V DC.
Q6. Does the module provide electrical isolation?
Yes, it includes isolation between output groups and the backplane.
Q7. What are the dimensions and weight?
Dimensions: 90 mm × 40.4 mm × 87 mm; weight: approximately 0.20 kg.
Q8. What mounting options are available?
It supports both DIN rail and panel mounting installations.
