Technical Specifications
| Parameter | Specification |
|---|---|

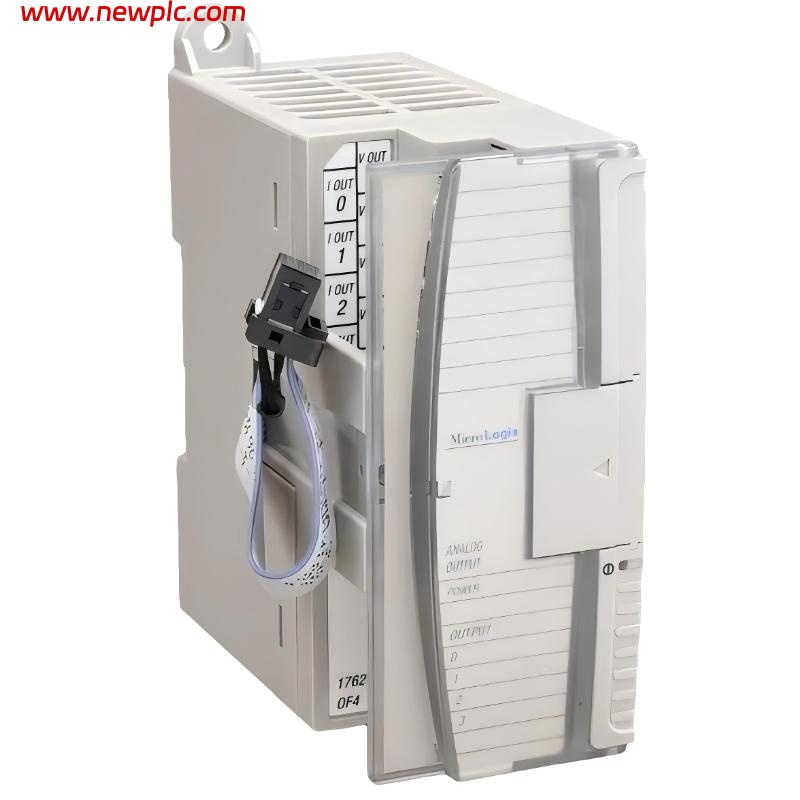

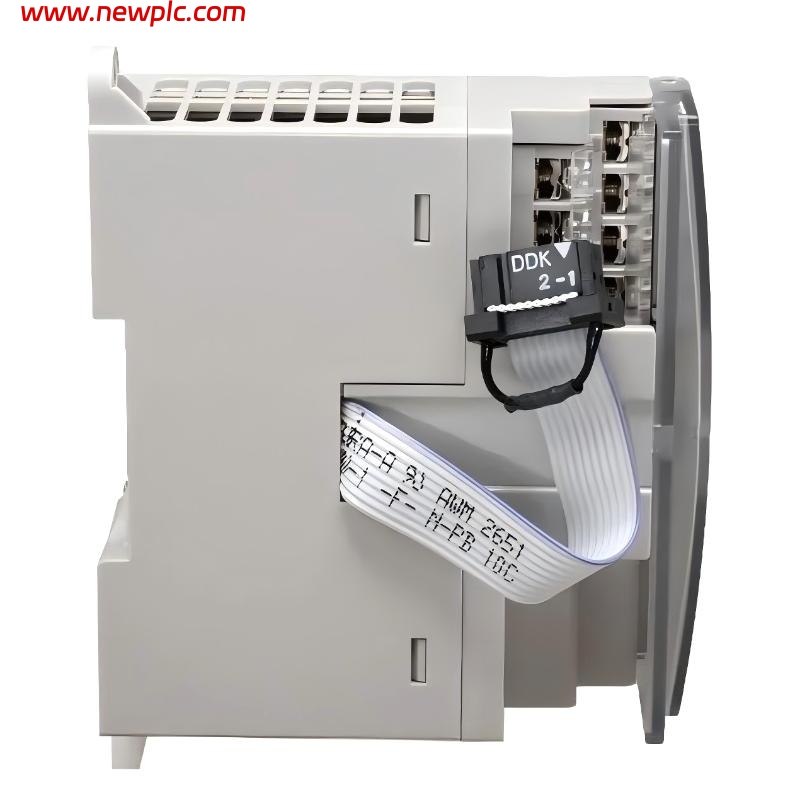

| Product | Allen‑Bradley 1762‑OF4 MicroLogix Analog Output Module |
| Module Type | 4‑channel analog output expansion module for MicroLogix 1200 PLCs |
| Output Channels | 4 single‑ended (unipolar) analog outputs |
| Output Signal Types | Voltage 0–10 V DC and current 4–20 mA (configurable per channel) |
| Resolution | 12‑bit |
| Typical Output Accuracy | ±1.17 % full scale (–20 °C to 65 °C) |
| Output Update Time | ~2.5 ms |
| Output Protection | Continuous open/short‑circuit and ±32 mA protection |
| Bus Current Draw (max) | 40 mA @ 5 V DC; 165 mA @ 24 V DC |
| Operating Temperature Range | –20 °C to 65 °C |
| Storage Temperature Range | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Isolation | Output group to system reinforced insulation (30 V AC/30 V DC) |
| Mounting | DIN rail or panel mount |

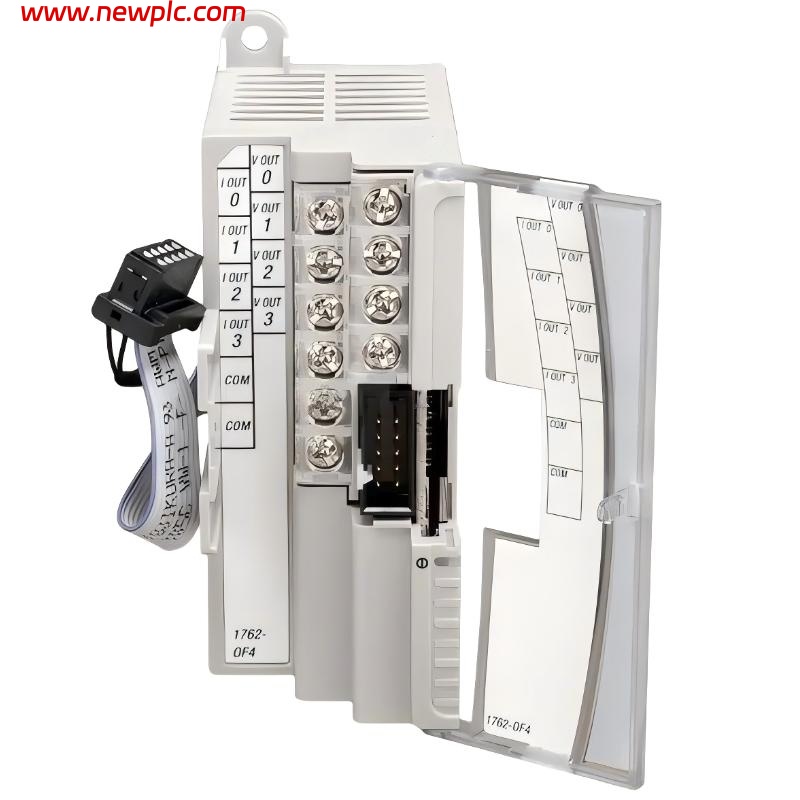

| Connection Type | Screw terminals |
| Weight | ~0.184 kg |
| Dimensions (H × W × D) | 90 mm × 40 mm × 87 mm |
| Enclosure Rating | IP20 (typical for MicroLogix I/O modules) |
FAQ
FAQ
Q1. What does the 1762‑OF4 module do?
It provides four analog output channels that can drive voltage or current signals for process control applications.
Q2. How many analog outputs are supported?
The module supports 4 single‑ended analog outputs.
Q3. What output signal types are available?
Each channel can output 0–10 V DC or 4–20 mA, configurable in software.
Q4. What is the resolution of the analog outputs?
Outputs have a 12‑bit resolution.
Q5. What is the maximum bus current draw?
The module draws up to 40 mA at 5 V DC and 165 mA at 24 V DC.
Q6. What are the physical dimensions and weight?
Dimensions are 90 mm × 40 mm × 87 mm and weight is about 0.184 kg.
Q7. What environmental conditions can it operate in?
It operates from –20 °C to 65 °C with 5 % to 95 % non‑condensing humidity.
Q8. How is the module connected and mounted?
It uses screw terminal connections and mounts on a DIN rail or panel.
