Technical Specifications
| Parameter | Specification |
|---|---|

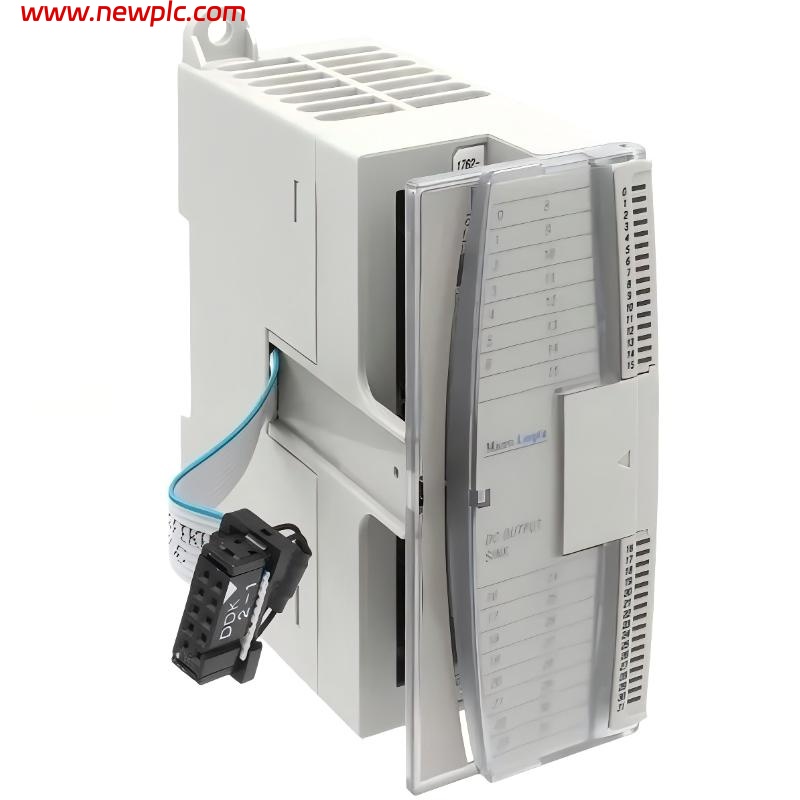

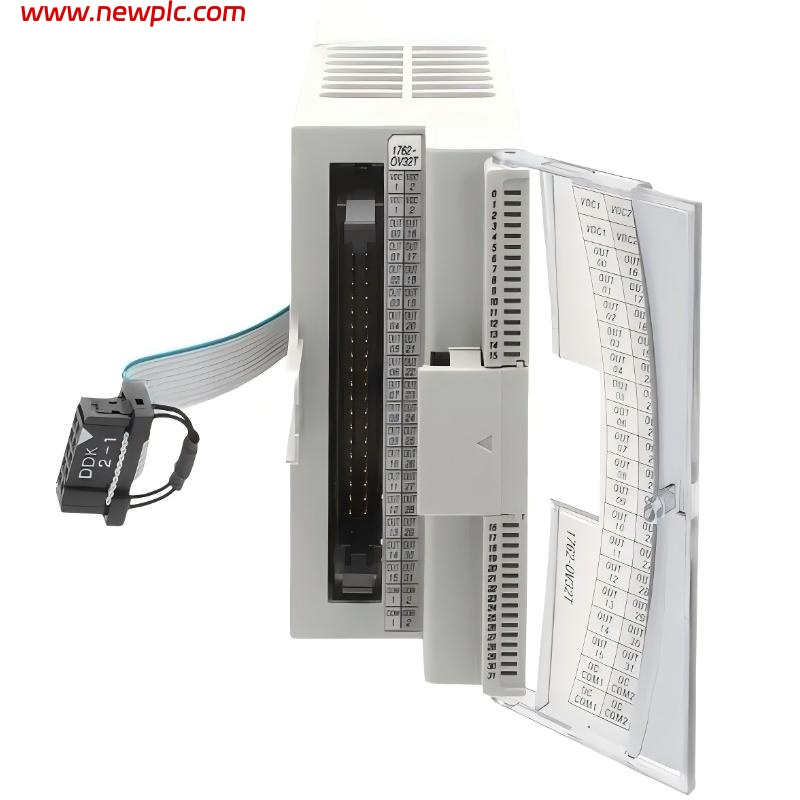

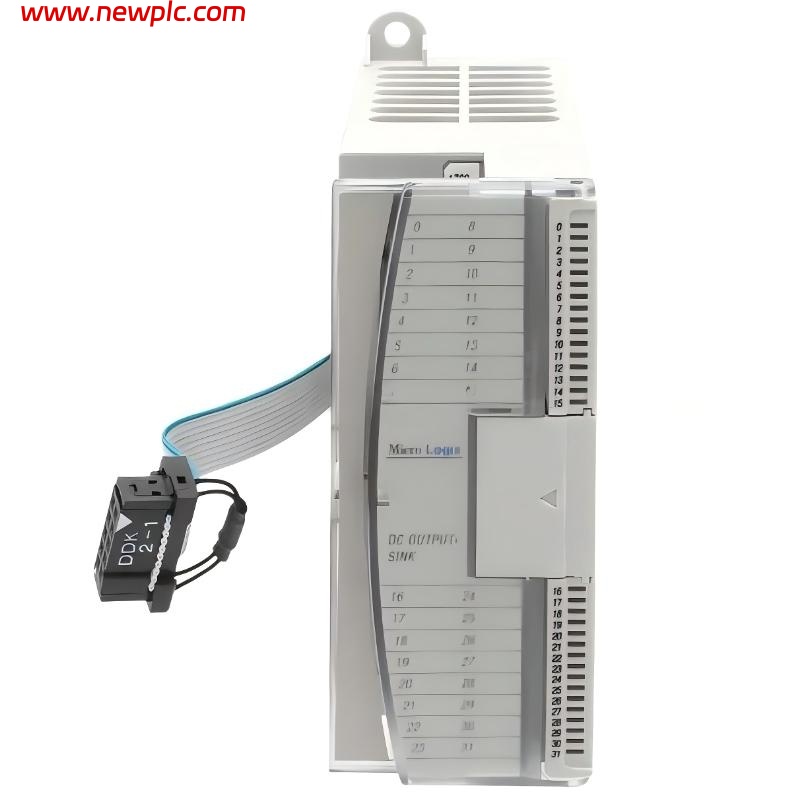

| Product | Allen‑Bradley 1762‑OV32T MicroLogix Digital Output Module |
| Module Type | 32‑point sinking transistor DC output module |
| Output Channels | 32 digital outputs (sinking) |
| Output Voltage Range | 10–30 V DC |
| Output Type | Transistor sink (NPN) |
| Maximum Output Current (per point) | 0.5 A |
| Maximum Output Current (per module) | 4 A |
| Maximum Current per Common | 2 A |
| Minimum Load Current | 1 mA |
| Signal Delay | ON: ~0.5 ms; OFF: ~1.0 ms |
| Bus Current Draw | ~160 mA @ 5 V DC |
| Heat Dissipation | ~3.5 W |
| Isolation | Group‑to‑group and backplane isolation |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Mounting | DIN rail or panel mount |
| Connection Type | Screw terminals |
| Weight | ~0.20 kg |
| Dimensions (H × W × D) | 90 mm × 40.4 mm × 87 mm |
FAQ
FAQ
Q1. What is the 1762‑OV32T used for?
It is a digital output expansion module with 32 sinking transistor outputs for MicroLogix controllers.
Q2. How many outputs are available on this module?
It provides 32 digital DC sinking outputs.
Q3. What type of outputs does it use?
It uses transistor sinking outputs (NPN) for DC loads.
Q4. What is the voltage range supported by the outputs?
The outputs operate within 10–30 V DC.
Q5. What is the maximum current per output channel?
Each output can handle up to 0.5 A.
Q6. Does this module provide electrical isolation?
Yes, it includes isolation between output groups and the backplane.
Q7. What are the dimensions and weight?
Dimensions: 90 mm × 40.4 mm × 87 mm; weight: approximately 0.20 kg.
Q8. How is this module mounted and connected?
It mounts on a DIN rail or panel and uses screw terminal connections.
