Technical Specifications
| Parameter | Specification |
|---|---|

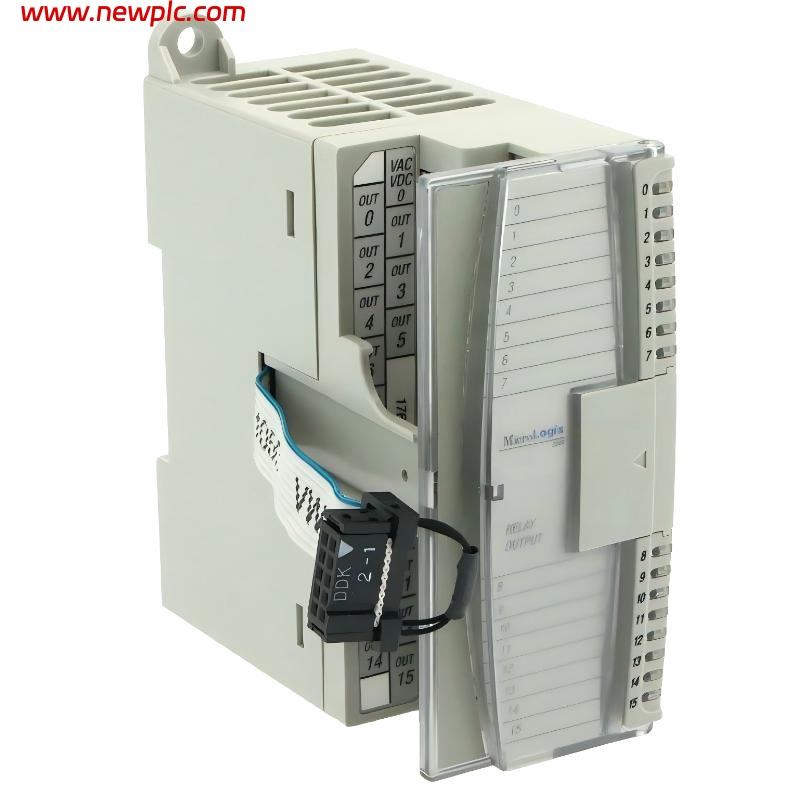

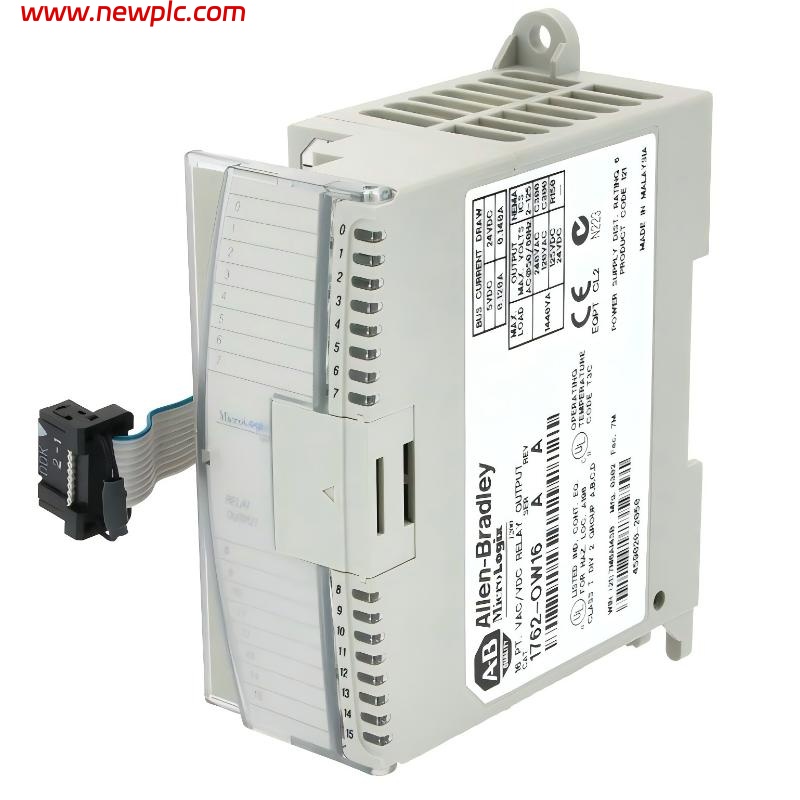

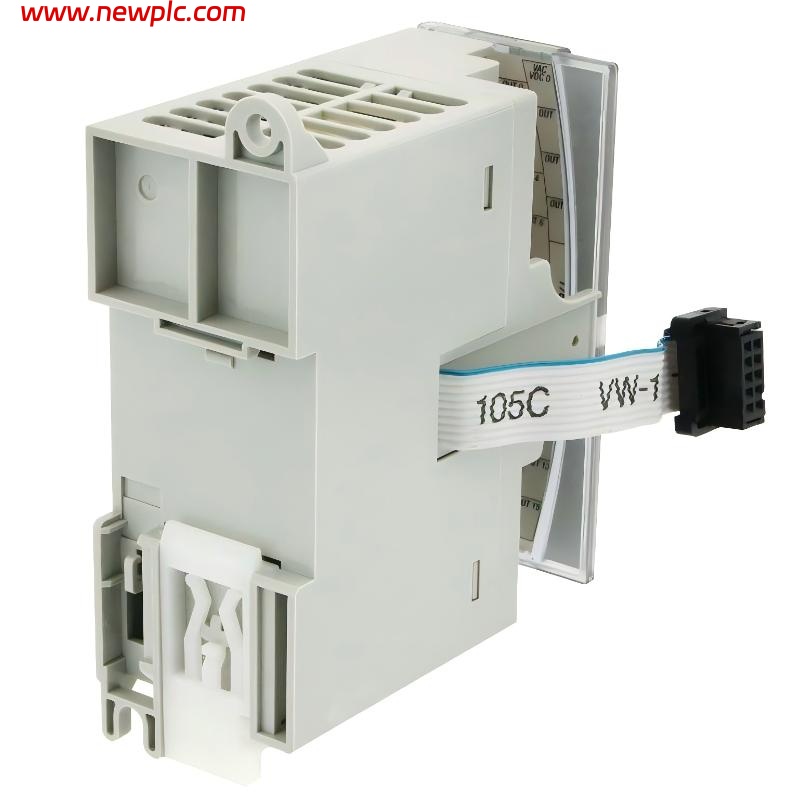

| Product | Allen‑Bradley 1762‑OW16 MicroLogix 16‑Point Relay Output Module |
| Module Type | 16‑point digital relay output expansion module |
| Output Channels | 16 relay outputs, grouped as 2 groups of 8 |
| Output Voltage Type | AC/DC normally open relay |
| Operating Voltage Range | 5–265 V AC; 5–125 V DC |
| Continuous Current per Point (max) | 2.5 A |
| Continuous Current per Common (max) | 8 A |
| Continuous Current per Module (max) | 16 A |
| Signal Delay (max) | ON 10 ms, OFF 10 ms |
| Bus Current Draw (max) | ~180 mA @ 24 V DC |
| Heat Dissipation (max) | ~6.1 W |
| Isolation | Group‑to‑group and backplane isolation (reinforced) |
| Mounting | DIN rail or panel mount |
| Connection Type | Screw terminal connections |
| Operating Temperature | –20 °C to 65 °C |
| Storage Temperature | –40 °C |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Weight | ~285 g (0.285 kg) |
| Dimensions (H × W × D) | 90 mm × 40.4 mm × 87 mm |
| Indicator LEDs | Output status indication |
FAQ
FAQ
Q1. What is the purpose of the 1762‑OW16 module?
It is a 16‑point relay output expansion module for MicroLogix PLCs, used to control external loads that require switching.
Q2. How many outputs does the module provide and how are they grouped?
It provides 16 relay outputs arranged in two isolated groups of 8.
Q3. What type of loads can be switched with this module?
The relay contacts can switch AC or DC loads within the supported voltage range.
Q4. What is the operating voltage range for the outputs?
Outputs support 5–265 V AC and 5–125 V DC.
Q5. What is the maximum current each output can handle?
Each output can handle continuous currents up to 2.5 A.
Q6. Does the module include output status indicators?
Yes, it has LED indicators for each output’s status.
Q7. What are the physical dimensions and weight of the module?
Dimensions are 90 mm × 40.4 mm × 87 mm and weight is approximately 0.285 kg.
Q8. What are the environmental operating conditions for this module?
It operates from –20 °C up to 65 °C with 5 % to 95 % non‑condensing humidity.
