Technical Specifications
| Parameter | Specification |
|---|---|

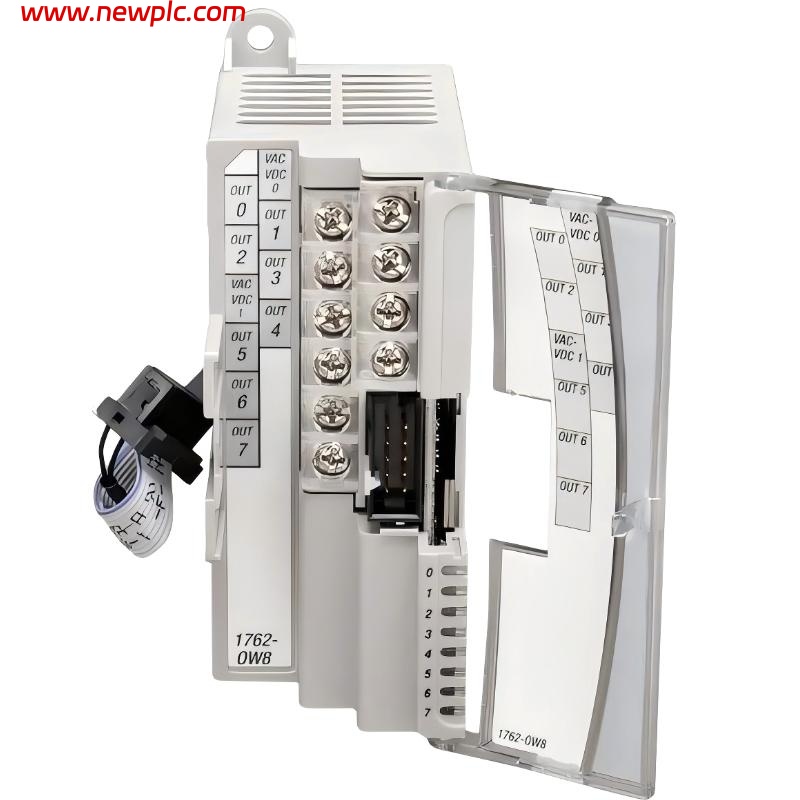

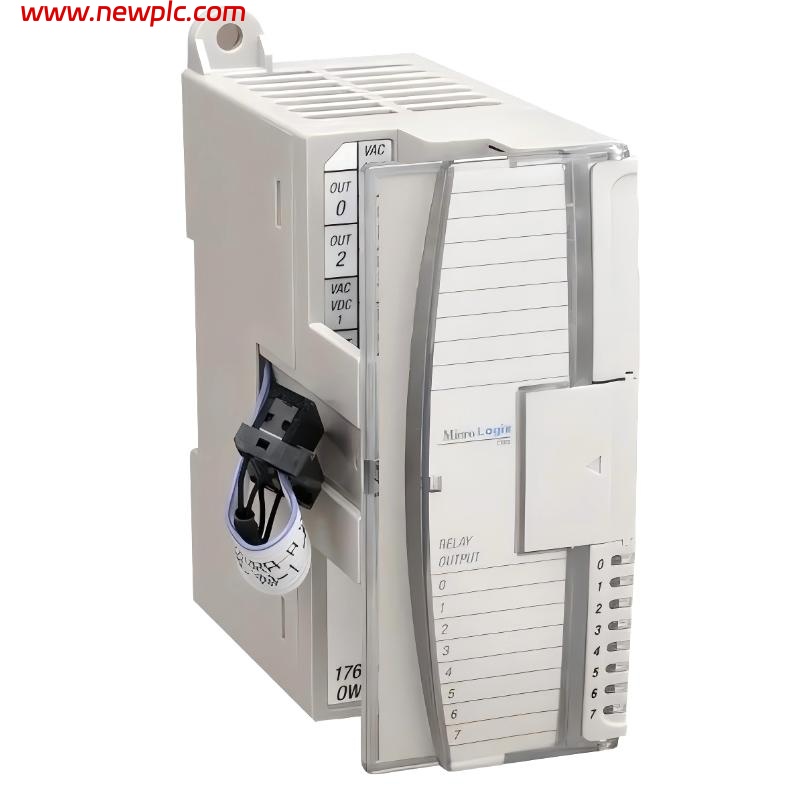

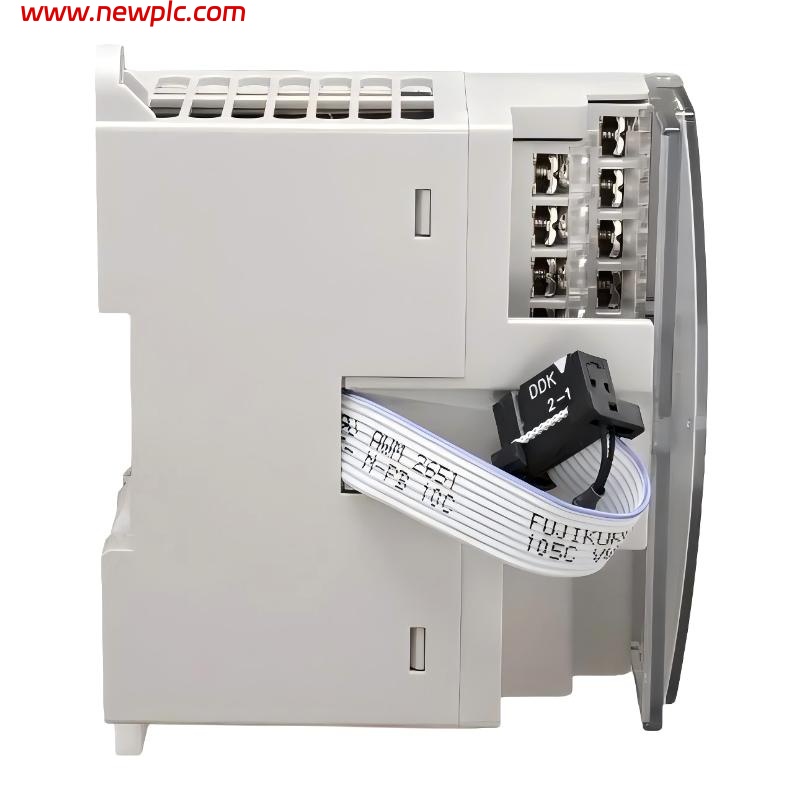

| Product | Allen‑Bradley 1762‑OW8 MicroLogix 8‑Point Relay Output Module |
| Module Type | Digital relay output expansion module with isolated relay contacts |
| Output Channels | 8 relay outputs |
| Output Voltage Type | AC/DC normally‑open relay (5…265 V AC / 5…125 V DC) |
| Continuous Current per Point (max) | 2.5 A |
| Continuous Current per Common (max) | 8 A |
| Continuous Current per Module (max) | 16 A |
| Bus Current Draw (max) | ~90 mA @ 24 V DC |
| Signal Delay | ON: ~10 ms / OFF: ~10 ms |
| Isolation | Group‑to‑group and backplane isolated (two groups of 4 outputs) |
| Heat Dissipation (max) | ~2.9 W |
| Operating Temperature | –20 °C to 65 °C |
| Storage Temperature | –40 °C |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Mounting | DIN rail or panel mount |
| Connection Type | Screw terminal connections |
| I/O Status Indicators | LED output status indication |
| Weight | ~0.228 kg |
| Dimensions (H × W × D) | 90 mm × 40.4 mm × 87 mm |
| Operating Voltage Range | 5…265 V AC, 5…125 V DC |
FAQ
FAQ
Q1. What is the 1762‑OW8 module used for?
It is an 8‑point relay output expansion module for MicroLogix PLCs, used to switch AC or DC loads.
Q2. How many outputs does this module provide?
It provides eight isolated relay outputs.
Q3. What voltage ranges can the outputs handle?
Outputs support AC up to 265 V and DC up to 125 V.
Q4. What’s the maximum current per output channel?
Each output can handle up to 2.5 A continuously.
Q5. Does the module provide electrical isolation?
Yes, output groups are isolated from each other and from the backplane.
Q6. What are the physical dimensions and weight of the module?
Dimensions: 90 mm × 40.4 mm × 87 mm; weight ~0.228 kg.
Q7. What type of indication does it offer for outputs?
It includes LEDs to indicate output status.
Q8. What environmental conditions can it operate in?
It operates from –20 °C to 65 °C with 5 %–95 % non‑condensing humidity.
