Technical Specifications
| Parameter | Specification |
|---|---|

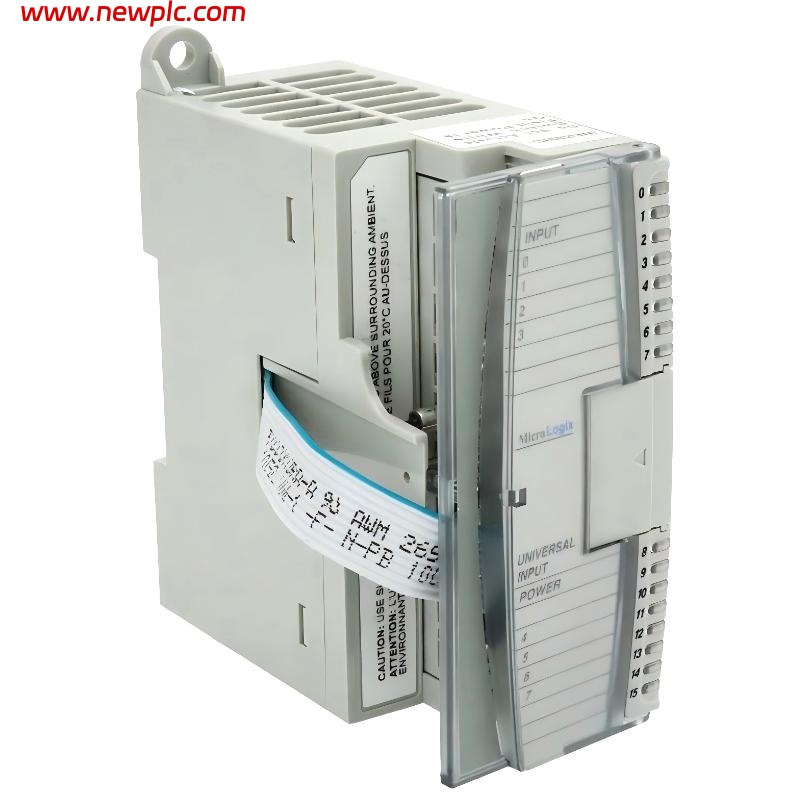

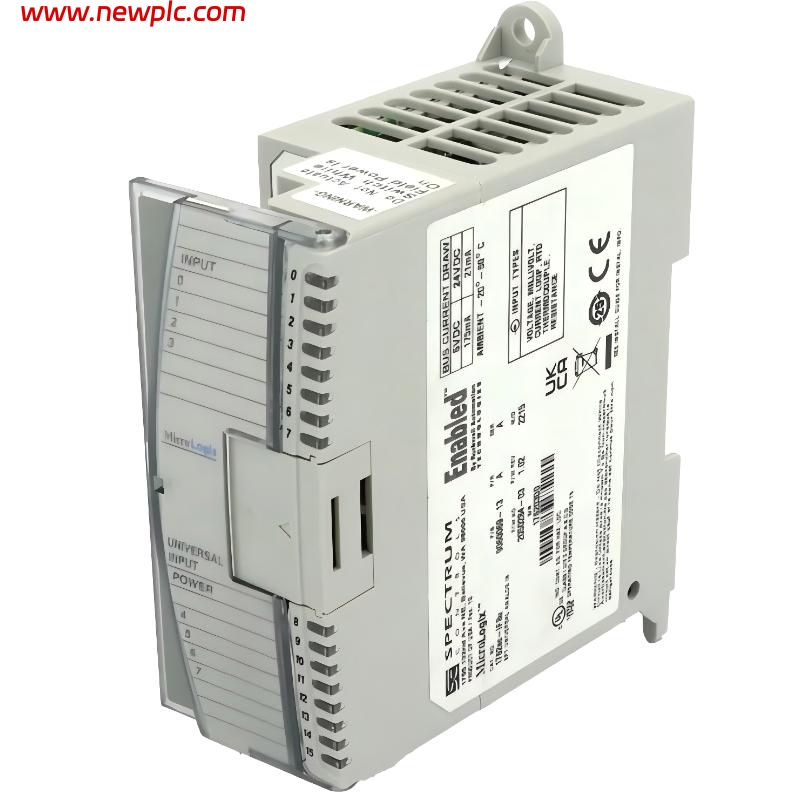

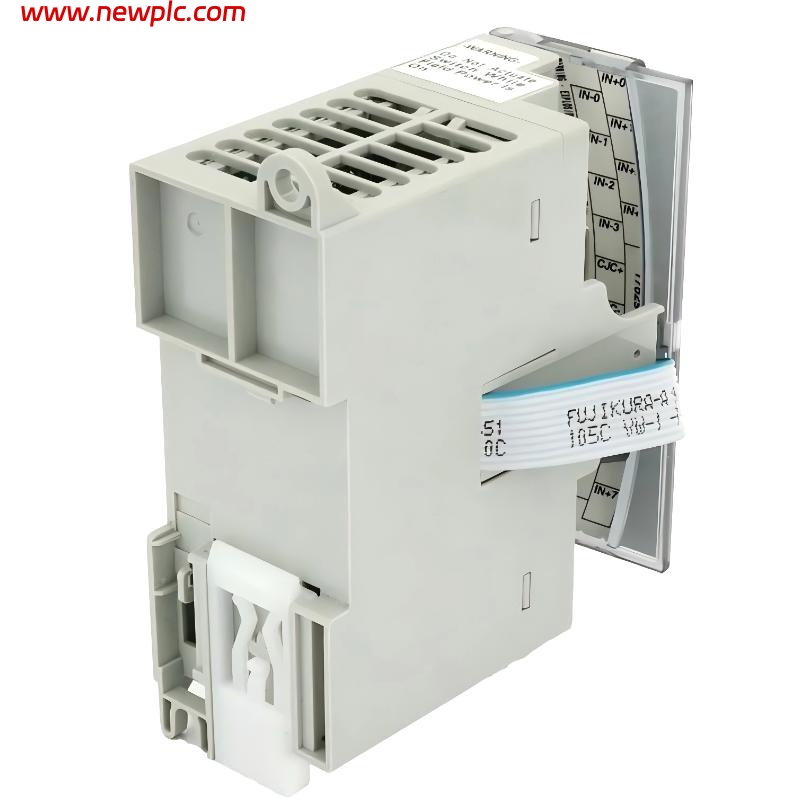

| Product | Allen‑Bradley 1762SC‑IF8U Universal Analog Input Module |
| Module Type | 8‑channel universal analog input expansion module for MicroLogix PLCs |
| Input Channels | 8 universal analog inputs (voltage, current, thermocouple, RTD, resistance) |
| Supported Input Types | Voltage ±50 mV, ±100 mV, 0–5 V, 1–5 V, 0–10 V, ±10 V; Current 0–20 mA, 4–20 mA; Thermocouples J, K, T, B, E, R, S, N, C; RTDs PT and Ni types; Resistance 0–150 Ω, 0–1000 Ω, 0–3000 Ω |
| Resolution | 16 bits |
| Selectable Filters | 4 Hz, 17 Hz, 62 Hz, 470 Hz (per channel) |
| Update Time (per module) | 20–495 ms depending on filter and number of channels enabled |
| Electrical Isolation | 10 V DC channel‑to‑channel; 707 V DC channel‑to‑backplane (1 min) |
| Input Impedance | ~249 Ω (current mode) |
| Overvoltage Protection | ±28 V DC continuous |
| Backplane Current Draw | ~175 mA @ 5 V DC; ~21 mA @ 24 V DC |
| Heat Dissipation | ~1.4 W max |
| Operating Temperature | –20 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Operating Altitude | Up to ~2000 m |
| Mounting | DIN rail or panel mount |
| Weight | ~0.268 kg |
| Dimensions (H × W × D) | 90 mm × 40 mm × 87 mm |
FAQ
FAQ
Q1. What is the 1762SC‑IF8U used for?
It is a universal analog input expansion module that adds eight configurable analog input channels to a MicroLogix PLC.
Q2. What kinds of analog signals can this module read?
It can read voltage, current, thermocouple, RTD, and resistance signals on the same module.
Q3. How many inputs does the module have?
It has 8 universal analog input channels.
Q4. What is the resolution of the analog conversion?
The module uses a 16‑bit resolution for precise analog measurements.
Q5. Can each channel be configured independently?
Yes, each channel’s input type and filtering can be individually configured.
Q6. What are the typical operating environmental limits?
It operates from –20 °C to 60 °C with 5 % to 95 % non‑condensing humidity.
Q7. What are the physical dimensions and weight of the module?
Dimensions are ~90 mm × 40 mm × 87 mm (height ~110 mm with tabs); weight ~0.268 kg.
Q8. Does the module provide isolation between inputs and the controller backplane?
Yes – it provides channel‑to‑channel and channel‑to‑backplane isolation for improved noise immunity.
