Technical Specifications
| Parameter | Specification |
|---|---|

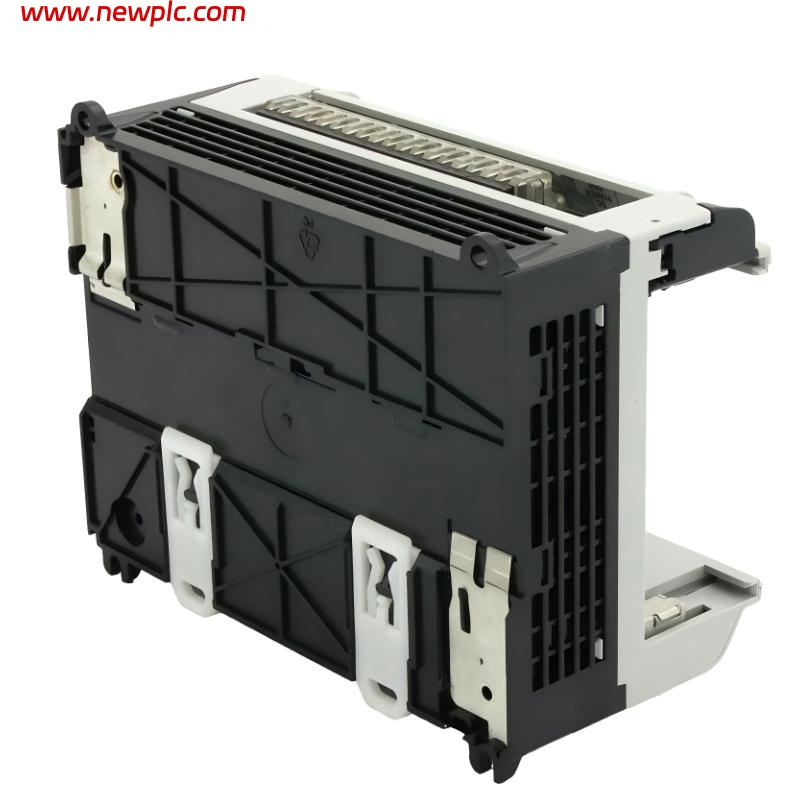

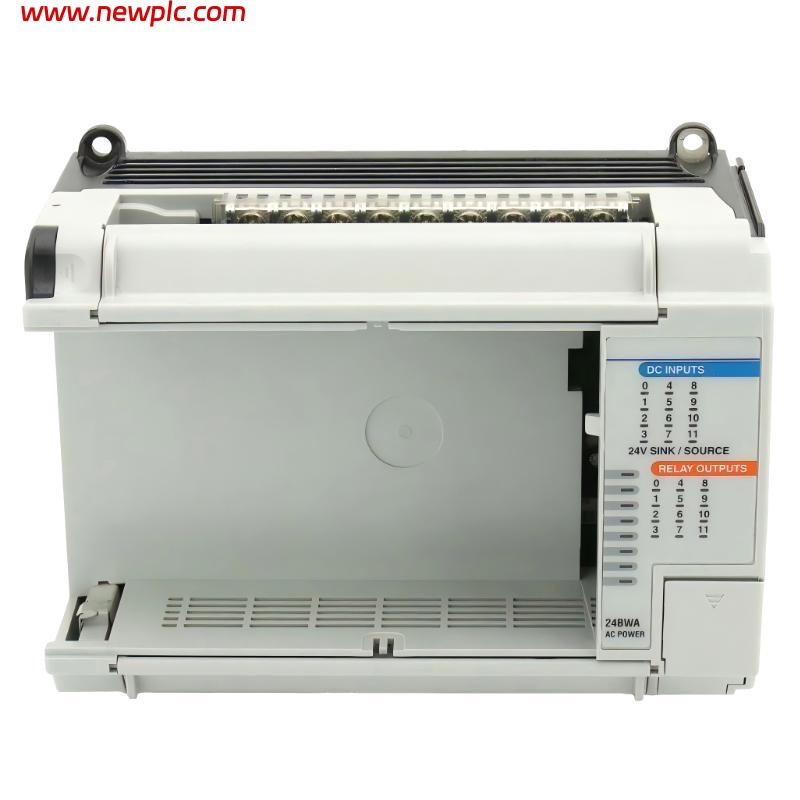

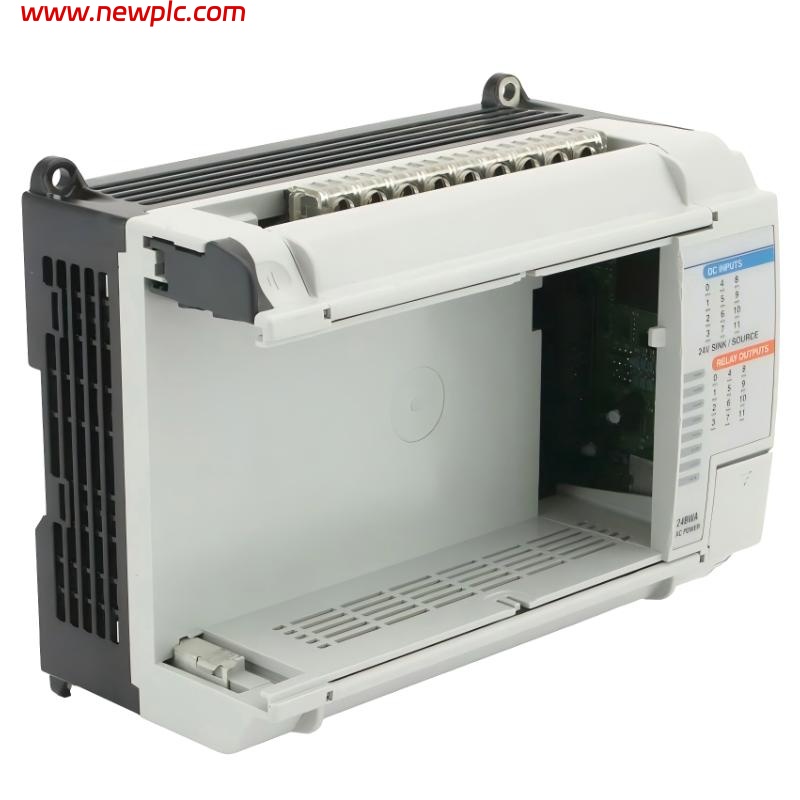

| Product | Allen‑Bradley 1764‑24BWA MicroLogix 1500 24‑Point Controller Base Unit |
| Controller Type | MicroLogix 1500 base programmable controller with integrated I/O and communications support |
| Line Power Supply | 85–265 V AC @ 47–63 Hz |
| Power Consumption | ~88 VA |
| Power Supply Inrush | 120 V AC = 25 A for 8 ms; 240 V AC = 40 A for 4 ms |
| User Power Output | 24 V DC @ 400 mA max. |
| Digital Inputs | 12 × 24 V DC sink/source discrete inputs |
| High‑Speed Inputs | 4 high‑speed 24 V DC inputs (included in 12) |
| Digital Outputs | 12 × relay outputs |
| Output Voltage | 24–125 V DC or 120–240 V AC (relay outputs) |
| Communication Port | 1 × RS‑232 serial |
| Expandable I/O | Up to 512 total I/O points (with expansion) |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Mounting | DIN rail or panel mount |
| Weight | ~0.9–1.0 kg (~2.0 lbs) |
| Dimensions (H × W × D) | 138 mm × 152 mm × 87 mm (approx.) |
| Lifecycle Status | Discontinued by manufacturer |
FAQ
FAQ
Q1. What is the 1764‑24BWA used for?
It is a base unit for the MicroLogix 1500 PLC family, providing built‑in inputs, outputs, and expansion capability.
Q2. What power supply does this controller accept?
It accepts 85–265 VAC line power with internal power conversion.
Q3. How many inputs and outputs does it provide?
It includes 12 24 V DC inputs (with high‑speed channels) and 12 relay outputs.
Q4. What type of communication port is available?
It provides an RS‑232 serial port for programming and communication.
Q5. Can the I/O be expanded beyond the built‑in points?
Yes, it supports expansion up to 512 total I/O points.
Q6. What operating conditions does it support?
The controller is rated for 0 °C to 55 °C and 5 % to 95 % non‑condensing humidity.
Q7. What are the dimensions and weight?
Dimensions are about 138 mm × 152 mm × 87 mm and weight is around 0.9–1.0 kg.
Q8. Is the 1764‑24BWA still in active production?
No, it has been discontinued by the manufacturer.
