Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Compact GuardLogix |

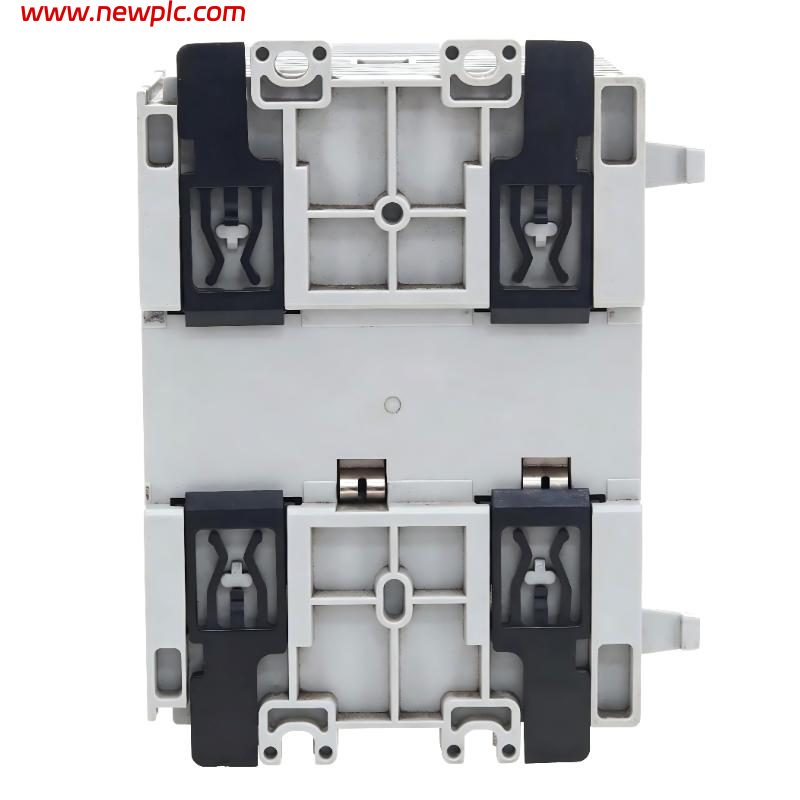

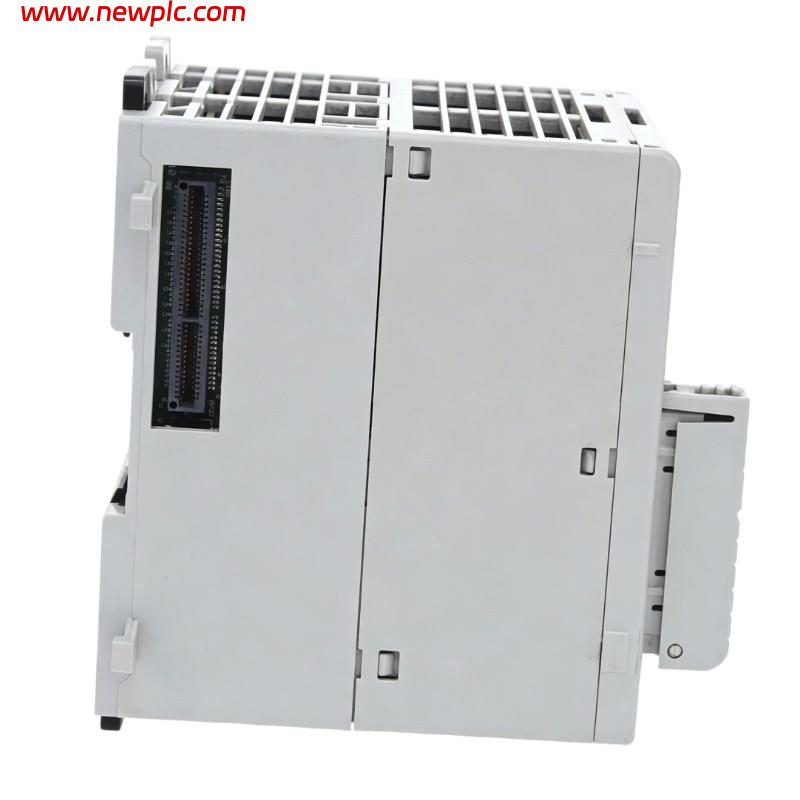

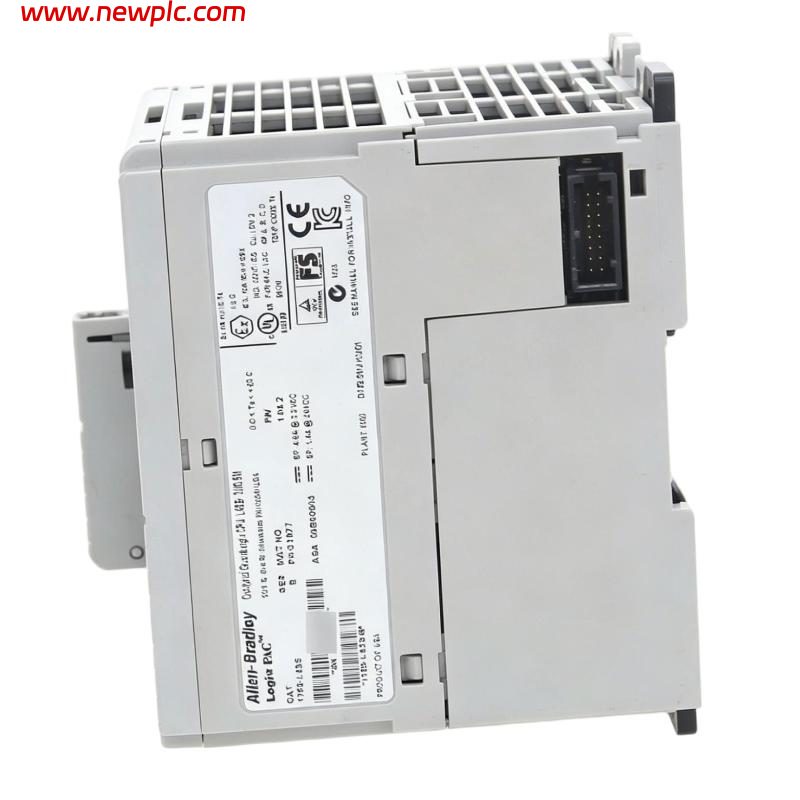

| Model Number | 1768-L43S |
| Product Type | Safety Processor Controller |
| Controller Family | CompactLogix GuardLogix |
| Standard User Memory | 2 MB |
| Safety Memory | 0.5 MB |
| Communication Port | 1 x RS-232 Serial Port |
| Communication Protocols | DF1, ASCII, Modbus RTU |
| Embedded Network Port | None |
| Programming Software | RSLogix 5000 / Studio 5000 |
| Supported I/O Modules | Up to 16 x 1769 I/O Modules |
| Supported 1768 Modules | Up to 2 Modules |
| Supported Motion Modules | Up to 2 Motion Modules |
| Power Supply Compatibility | 1768-PA3, 1768-PB3 |
| Current Draw | 2.8A at 5V DC |
| Backplane Current Draw | 1.4A at 24V DC |
| Power Consumption | Approx. 33.6 W |
| Power Dissipation | Approx. 7.5 W |
| Isolation Voltage | 30V Continuous |
| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Dimensions | Approx. 131.6 x 89.6 x 122.1 mm |
| Weight | Approx. 0.45 – 0.64 kg |
| Certifications | UL, CE, CSA, T4 |
| Lifecycle Status | Discontinued |
| Typical Applications | Machine Safety, Motion Control, Industrial Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1768-L43S used for?
A1: The 1768-L43S is a Compact GuardLogix safety processor designed for machine safety applications, integrated motion control, and industrial automation systems.
Q2: How much memory does the 1768-L43S provide?
A2: The controller includes 2 MB of standard user memory and 0.5 MB of dedicated safety memory.
Q3: Does the 1768-L43S include Ethernet communication?
A3: No. The controller does not include an embedded Ethernet port and primarily communicates through its RS-232 serial interface.
Q4: Which programming software is compatible with the 1768-L43S?
A4: The processor is programmed using RSLogix 5000 or Studio 5000 engineering software.
Q5: How many I/O modules can the 1768-L43S support?
A5: The controller supports up to 16 Compact I/O 1769 modules and up to 2 additional 1768 modules.
Q6: Is the 1768-L43S suitable for safety-related applications?
A6: Yes. The processor is specifically designed for GuardLogix safety control applications requiring integrated safety and standard control functions.
Q7: What mounting methods are supported for the 1768-L43S?
A7: The module supports both DIN rail mounting and panel mounting for flexible industrial installation.
Q8: Is the 1768-L43S still available from Rockwell Automation?
A8: No. The 1768-L43S has been officially discontinued, but refurbished and surplus units are still available through industrial automation suppliers.
