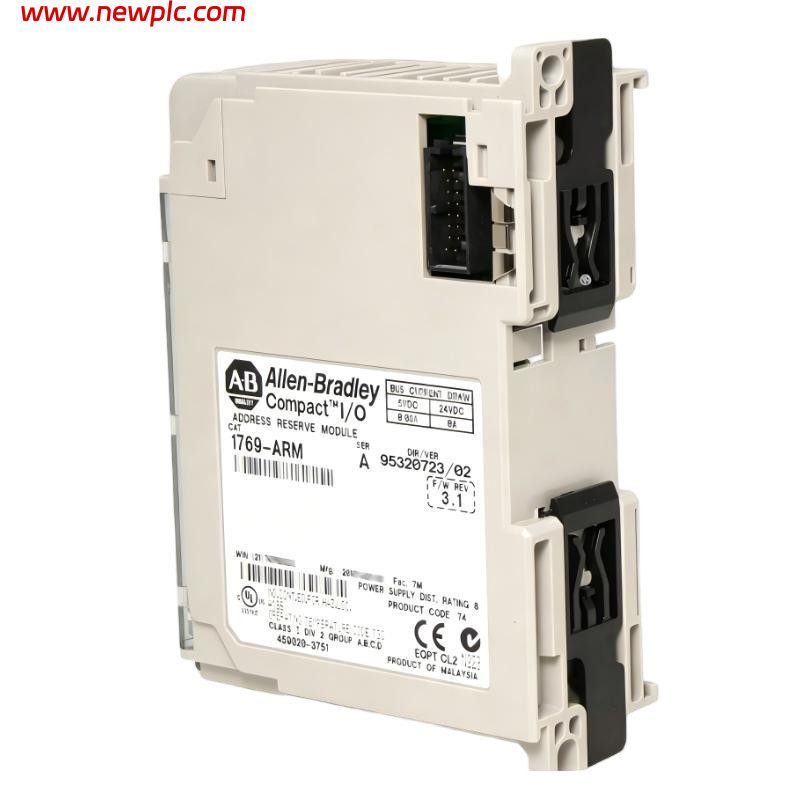

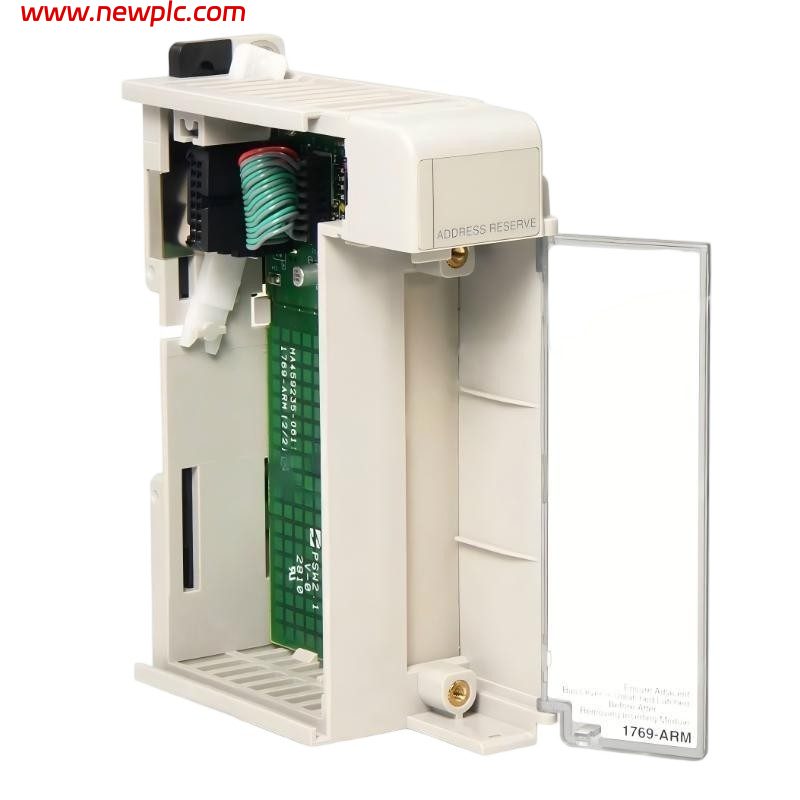

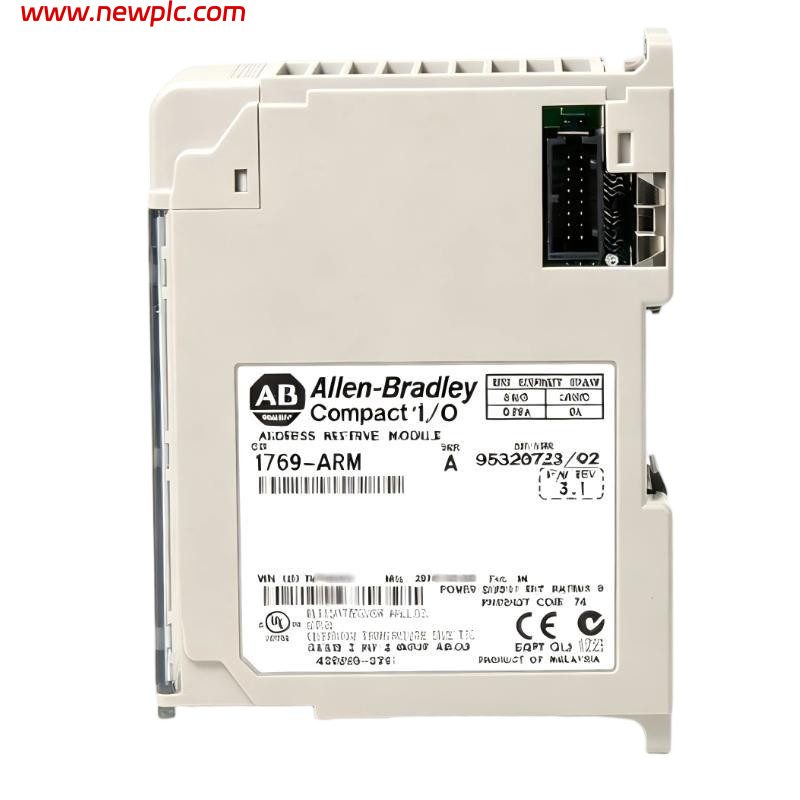

Allen Bradley 1769-ARM Address Reserve Module

FAQ

Q1: What is the Allen-Bradley 1769-ARM used for?
A1: The 1769-ARM is an address reserve module used to reserve empty slot positions in CompactLogix and MicroLogix systems for future I/O expansion.

Q2: Does the 1769-ARM perform any input or output functions?
A2: No. The module does not provide actual input or output functions. It is only used for reserving slot addresses in the system configuration.

Q3: Why is the 1769-ARM important in CompactLogix systems?
A3: The module allows users to maintain system architecture and future-proof the control panel layout without immediately installing additional I/O modules.

Q4: Which controllers are compatible with the 1769-ARM?
A4: The module is compatible with CompactLogix and certain MicroLogix systems using the 1769 Compact I/O platform.

Q5: How much power does the 1769-ARM consume?
A5: The module has a low current draw of approximately 60 mA at 5.1V DC and a maximum heat dissipation of 0.3 W.

Q6: Can the 1769-ARM be mounted on a DIN rail?
A6: Yes. The module supports both DIN rail mounting and panel mounting for flexible installation.

Q7: Does the 1769-ARM require programming software configuration?
A7: Yes. The module is typically configured using RSLogix 5000 or Studio 5000 software to reserve slot addresses in the I/O configuration.

Q8: Is the 1769-ARM suitable for industrial environments?
A8: Yes. The module is designed for industrial automation environments and includes certifications such as UL, CE, and Class I Division 2.

1769-ARM Allen Bradley
