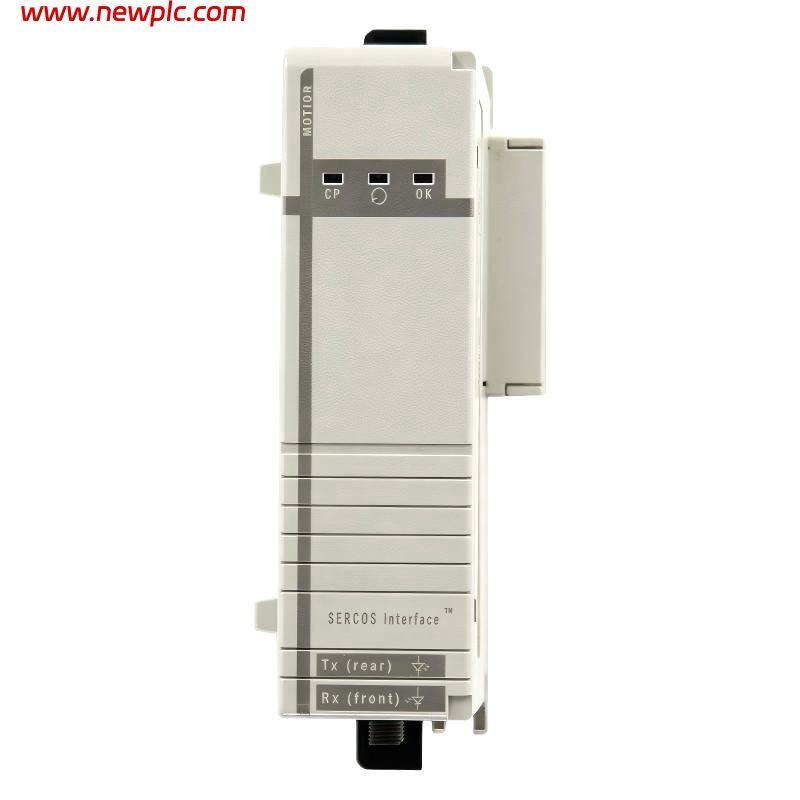

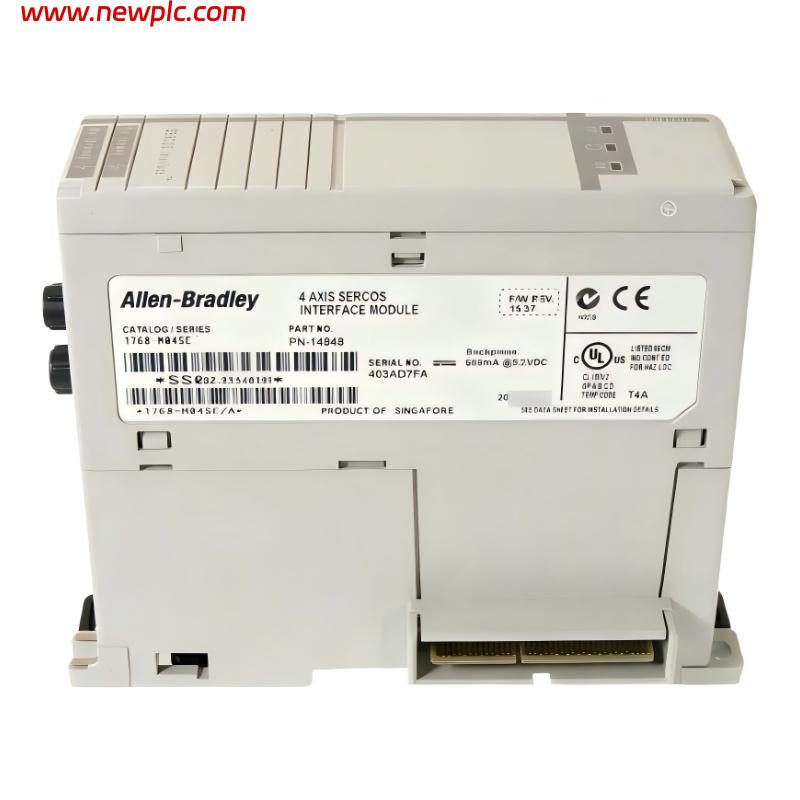

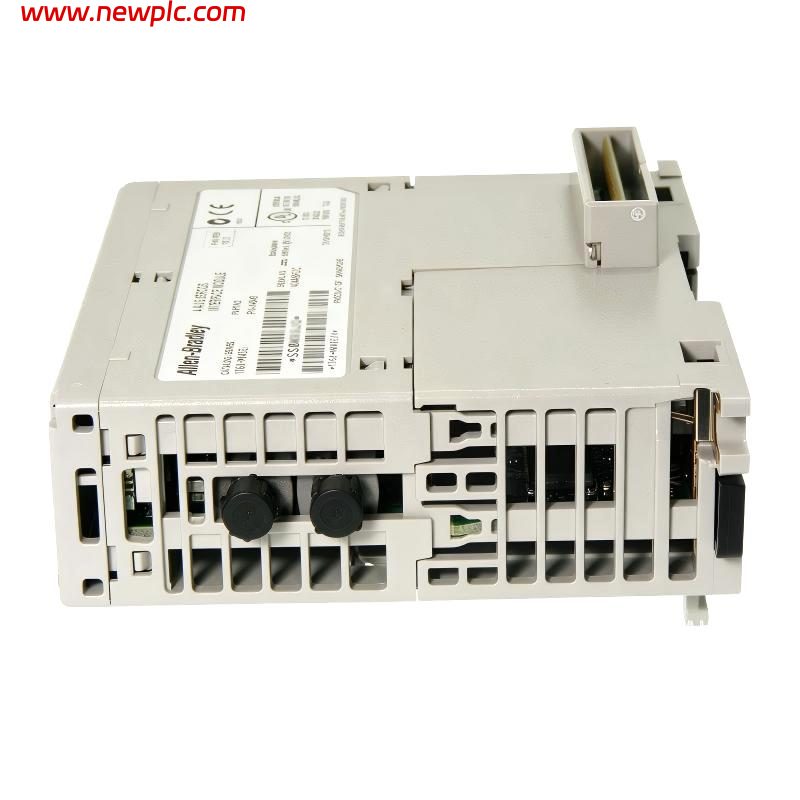

Allen Bradley 1768-M04SE CompactLogix 4-Axis SERCOS Interface Motion Module

FAQ

Q1: What is the Allen-Bradley 1768-M04SE?
A: It is a CompactLogix 4-axis SERCOS interface motion module used for integrated motion control.

Q2: How many axes can the 1768-M04SE control?
A: It supports 4 motion axes and 2 auxiliary feedback axes.

Q3: What communication protocol does it use?
A: The module uses SERCOS communication at 4 Mbps or 8 Mbps.

Q4: Which servo drives are compatible with the 1768-M04SE?
A: Compatible drives include Kinetix 2000, Kinetix 6000, Kinetix 7000, and Ultra3000 SERCOS servo drives.

Q5: What are the supported drive control modes?
A: The module supports position and velocity control modes.

Q6: What is the backplane current consumption?
A: The specified current draw is 969 mA at 5.2V DC.

Q7: What type of fiber-optic connector is used?
A: The 1768-M04SE uses an F-SMA standard screw-type fiber-optic connector.

Q8: Is the 1768-M04SE still manufactured by Rockwell Automation?
A: No. Rockwell Automation lists it as discontinued effective December 31, 2020.

1768-M04SE Allen Bradley
