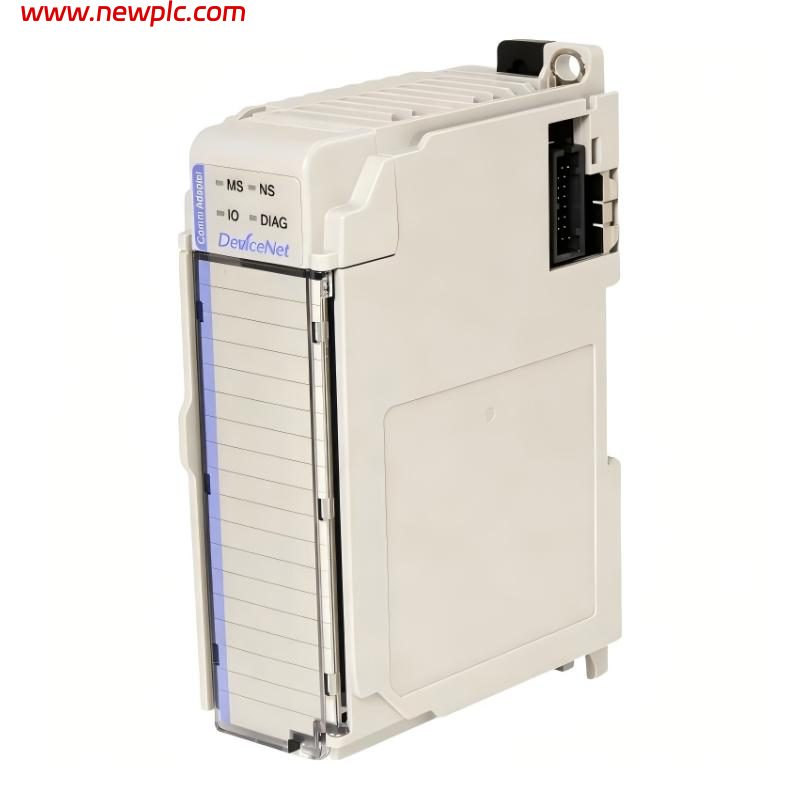

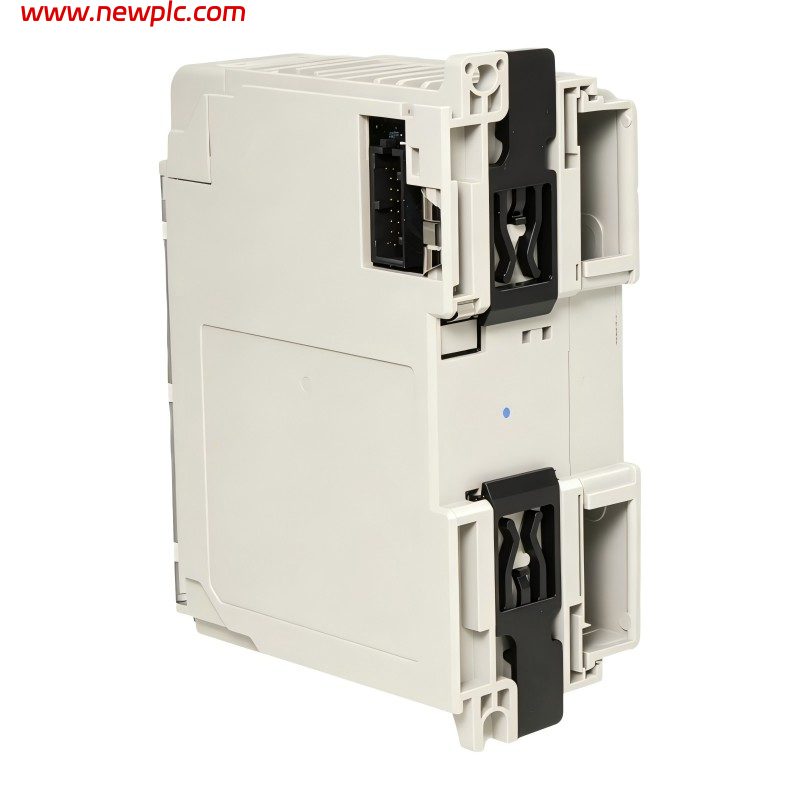

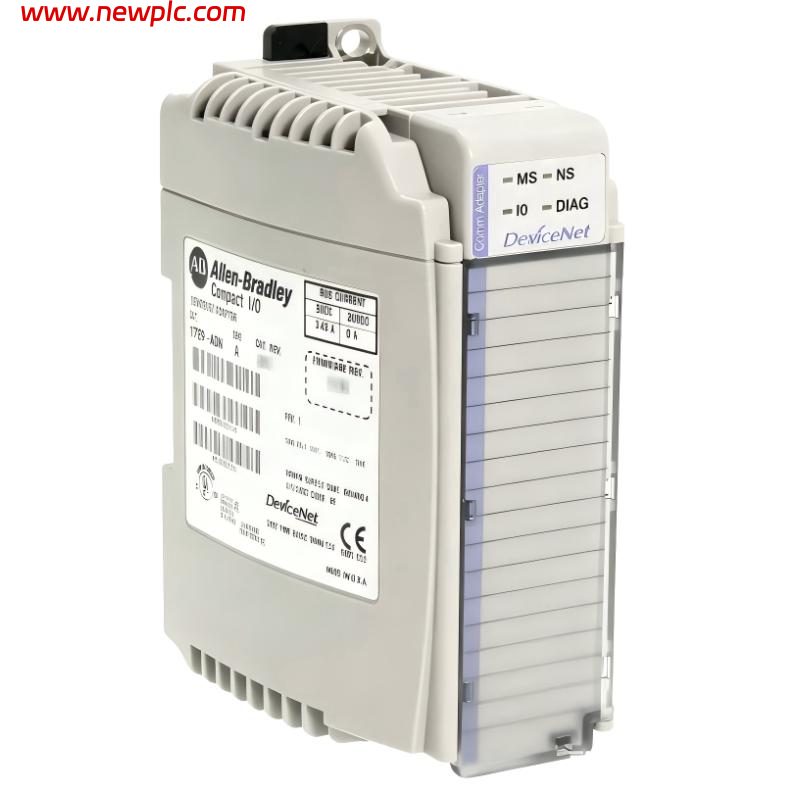

Allen Bradley 1769-ADN/A Compact I/O DeviceNet Adapter Module

FAQ

Q1: What is the Allen-Bradley 1769-ADN/A?
A: It is a Series A Compact I/O DeviceNet Adapter Module for connecting 1769 Compact I/O modules to a DeviceNet network.

Q2: What communication rates does the 1769-ADN/A support?
A: It supports DeviceNet communication rates of 125 kbps, 250 kbps, and 500 kbps.

Q3: How many I/O modules can it support?
A: The adapter supports up to 30 Compact I/O modules.

Q4: How much DeviceNet power does the adapter require?
A: It requires 24V DC at a maximum of 90mA.

Q5: What is the backplane current consumption?
A: The Series A adapter draws up to 450mA at 5V DC.

Q6: What is the operating temperature range?
A: The specified operating temperature range is 0 to 60°C.

Q7: What are the dimensions and shipping weight?
A: The dimensions are approximately 118 × 87 × 50 mm, with a height of 138 mm including mounting tabs. The approximate shipping weight with carton is 0.28 kg.

Q8: Is the 1769-ADN/A discontinued?
A: Yes. Rockwell Automation discontinued the 1769-ADN on December 31, 2016, with no planned Rockwell replacement.
