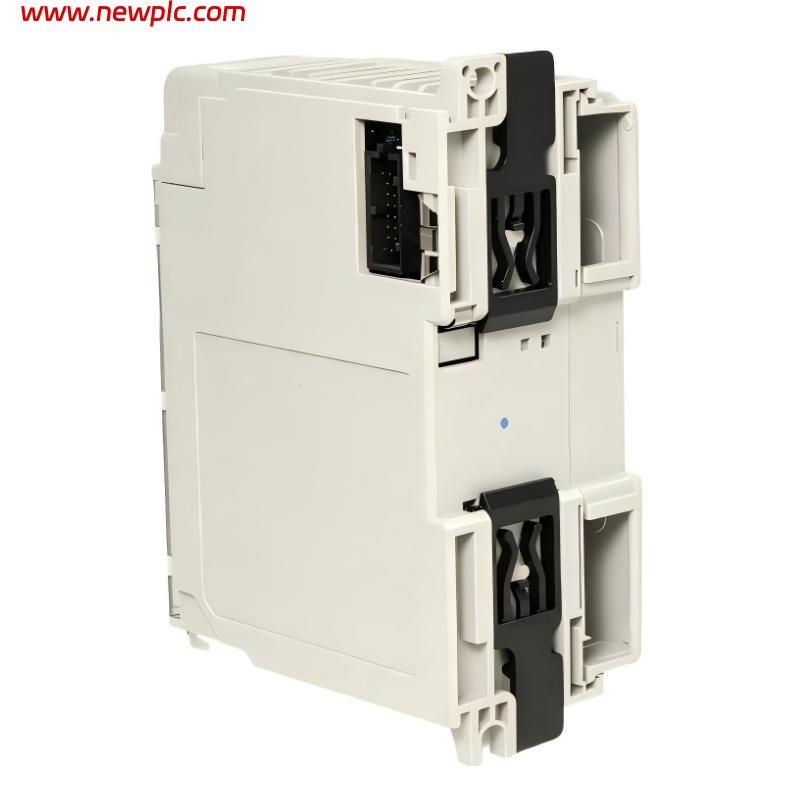

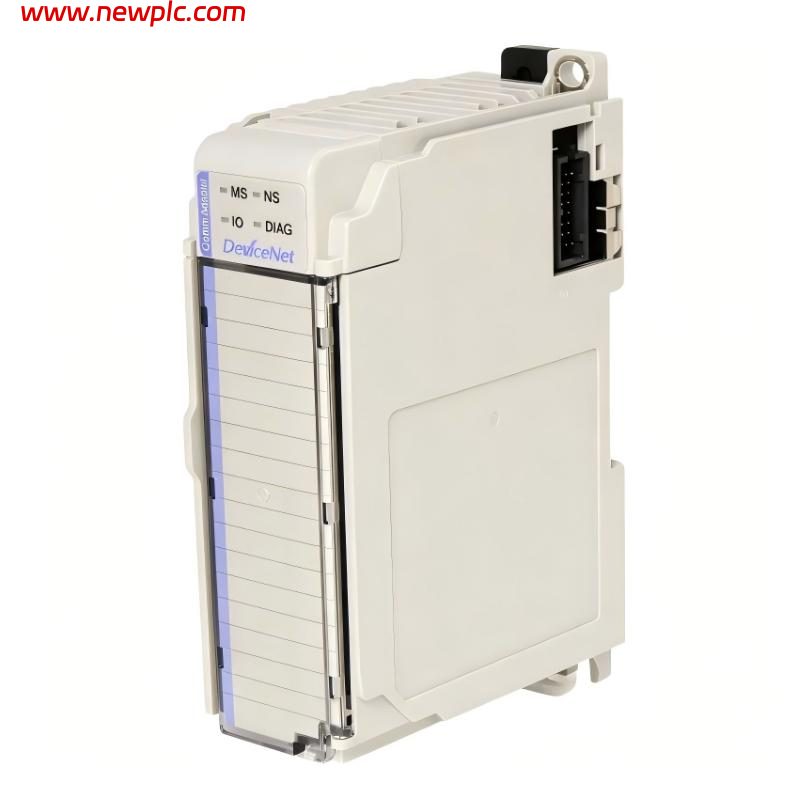

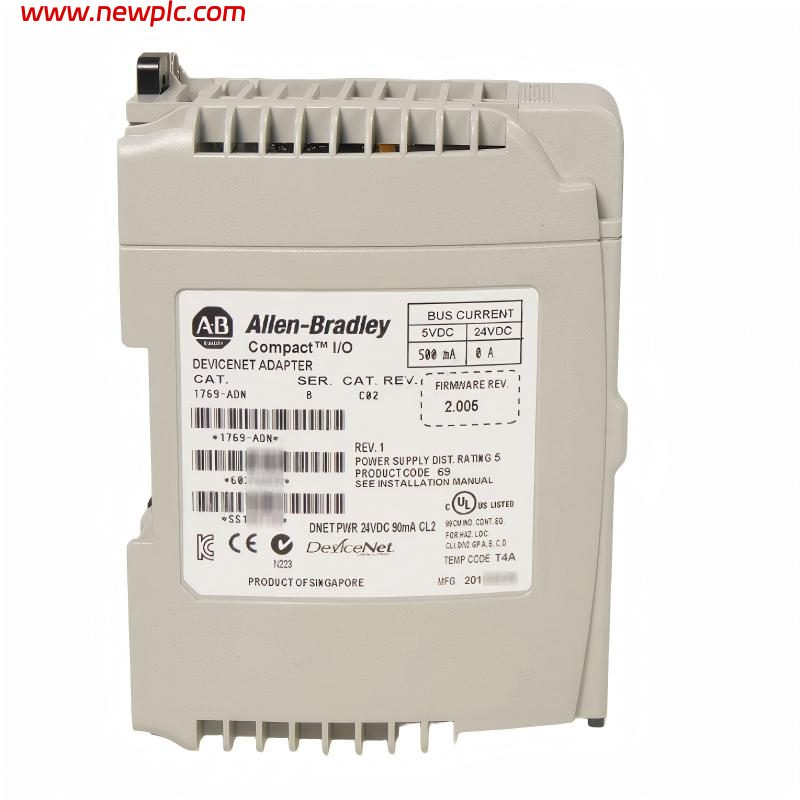

Allen Bradley 1769-ADN/B Compact I/O DeviceNet Adapter Module

FAQ

Q1: What is the Allen-Bradley 1769-ADN/B?
A: It is a Series B Compact I/O DeviceNet Adapter Module used to connect distributed 1769 Compact I/O modules to a DeviceNet network.

Q2: What communication rates does the 1769-ADN/B support?
A: It supports DeviceNet communication rates of 125 kbps, 250 kbps, and 500 kbps.

Q3: How many I/O modules can the 1769-ADN/B support?
A: It supports up to 30 Compact I/O modules, distributed across up to three I/O banks.

Q4: What is the DeviceNet power requirement?
A: The adapter requires 24V DC DeviceNet power, with a maximum requirement of approximately 90mA.

Q5: What is the backplane current consumption?
A: The Series B 1769-ADN/B has a maximum backplane current of approximately 500mA at 5V DC.

Q6: What is the power supply distance rating?
A: The Series B adapter supports a power-supply distance rating of up to five modules.

Q7: What are the dimensions and weight of the 1769-ADN/B?
A: The approximate dimensions are 118 × 87 × 50 mm, and the approximate shipping weight is 0.28 kg.

Q8: Is the 1769-ADN/B discontinued?
A: Yes. Rockwell Automation lists the 1769-ADN as discontinued effective December 31, 2016, with no planned Rockwell Automation replacement.
