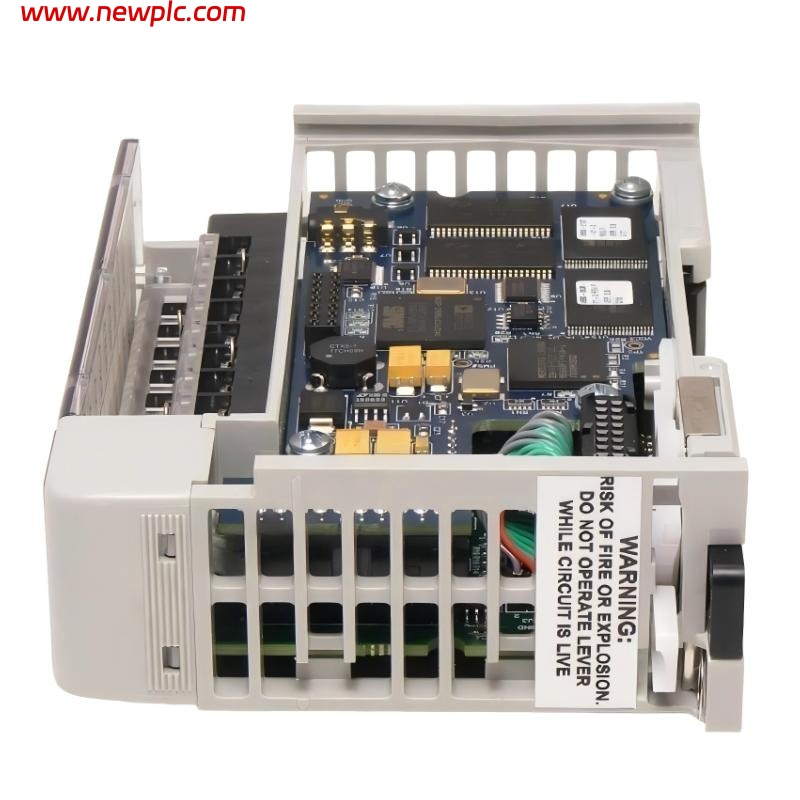

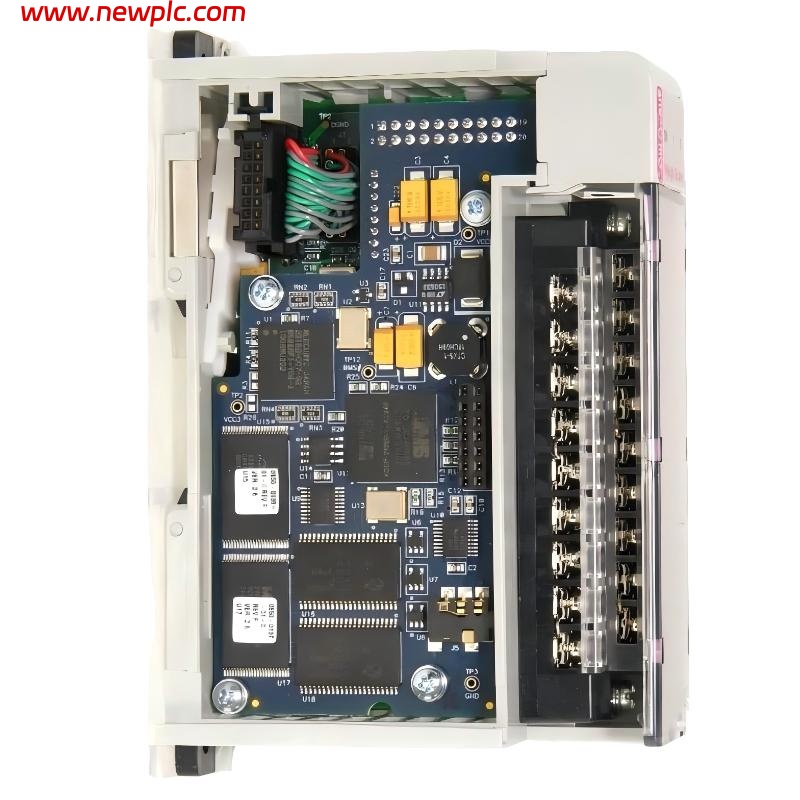

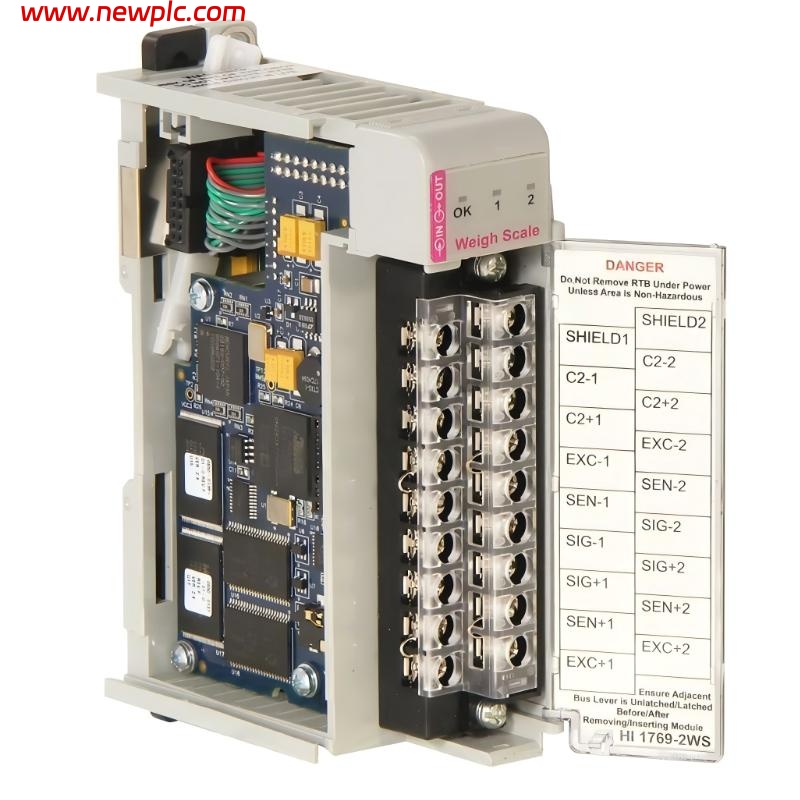

Allen Bradley 1769-2WS CompactLogix / MicroLogix weigh scale I/O module

FAQ

Q1. What is the 1769‑2WS module used for?
It is a dual‑channel weigh scale module that conditions weight signals from load cells for PLC processing.

Q2. How many weighing channels does this module support?
It supports two separate weighing inputs simultaneously.

Q3. What types of load sensors can be used with this module?
It works with strain gauge load sensors or load cells that produce millivolt signals.

Q4. How is the module powered?
It uses +5 V DC power supplied from the CompactLogix or MicroLogix backplane.

Q5. What signal range does the module accept?
It accepts input signals from –0.3 mV up to +15.3 mV.

Q6. What are the available weighing modes?
The module supports Net, Gross, and Rate‑of‑change weighing modes.

Q7. How often does the module update weight data?
It converts and updates weight measurements at about 100 times per second.

Q8. What are the operating environment limits?
The module operates between 0 °C and 60 °C with 5 % to 95 % relative humidity (non‑condensing).
