Technical Specifications
| Parameter | Specification |
|---|---|

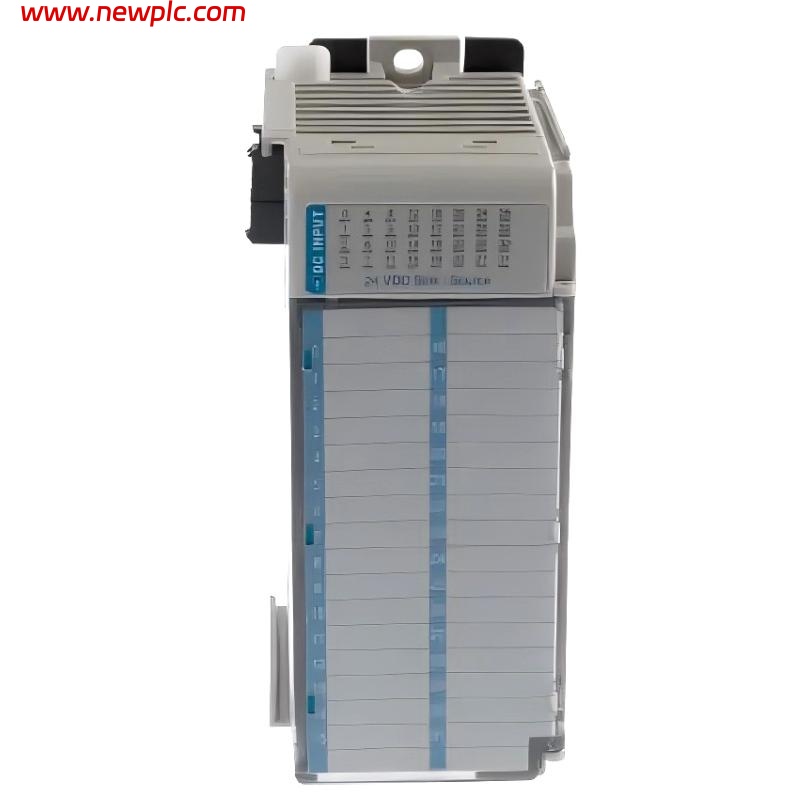

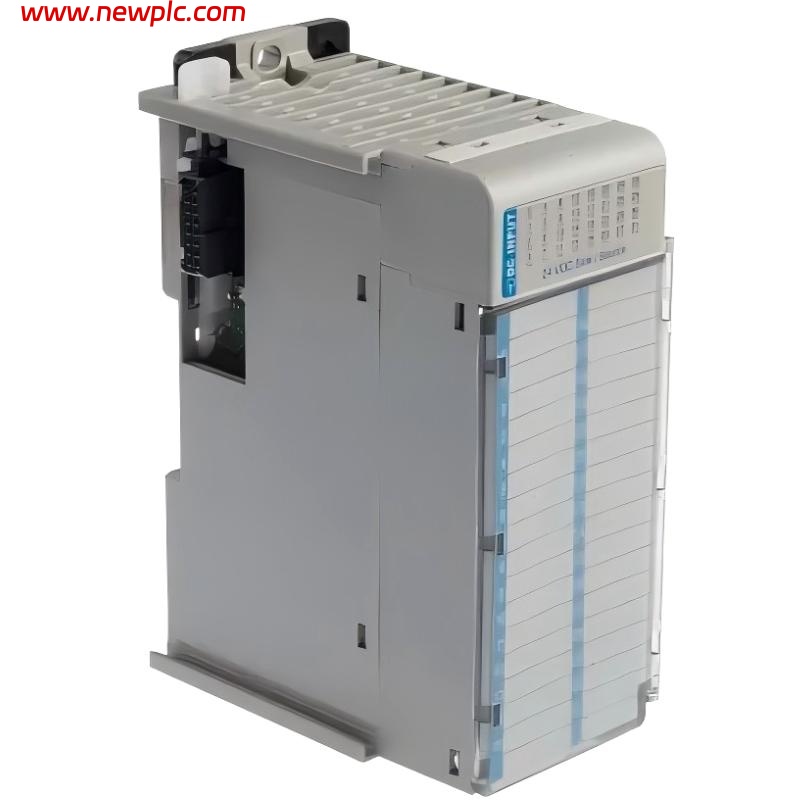

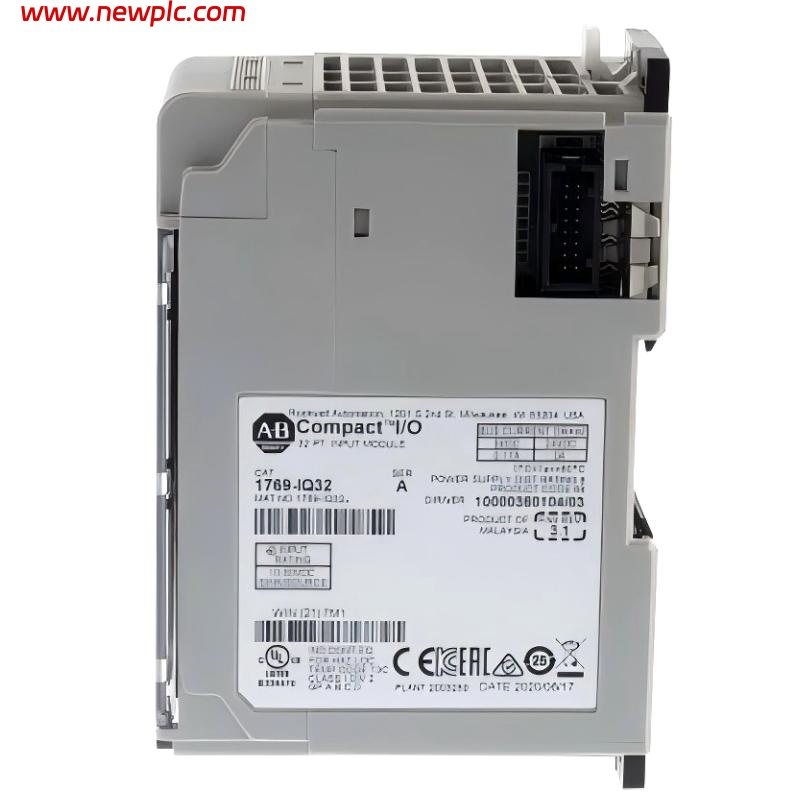

| Product | 1769-IQ32 CompactLogix DC Input Module |
| Module Type | High-density digital DC input module |
| Input Channels | 32 points |
| Input Voltage Range | 10–30 V DC (nominal 24 V DC) |
| On-State Voltage | ≥ 10 V DC |
| Off-State Voltage | ≤ 5 V DC |
| Input Current | ~5 mA per channel @ 24 V DC |
| Input Type | Sink/source compatible DC inputs |
| Input Grouping | Grouped inputs (common return) |
| Response Time | ~8 ms ON / ~8 ms OFF |
| Backplane Current Draw | ~0.18 A @ 5 V DC |
| Power Consumption | ~0.9 W |
| Isolation Voltage | 30 V continuous functional isolation |
| Status Indicators | LED indicators per channel |
| Wiring | High-density removable terminal block (RTB) |
| Mounting | 1769 Compact I/O slot (DIN rail / panel system) |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Shock (Operating) | 30 g |
| Vibration (Operating) | 5 g @ 10–500 Hz |
| Weight | ~0.32 kg |
| Dimensions (H × W × D) | 118 mm × 52 mm × 87 mm |
| Application | High-density DC input monitoring for industrial automation systems |
FAQ
FAQ
Q1. What is the 1769-IQ32 used for?
It is used to monitor multiple 24 V DC digital input signals in high-density industrial control systems.
Q2. How many input channels does it provide?
It provides 32 digital DC input channels.
Q3. What voltage range does it support?
It supports input voltages from 10 to 30 V DC.
Q4. What type of input configuration is supported?
It supports both sinking and sourcing input configurations.
Q5. What is the typical response time?
The module has a typical ON/OFF response time of about 8 milliseconds.
Q6. Does it require external power?
No, it is powered via the CompactLogix backplane.
Q7. What are its physical dimensions and weight?
It measures approximately 118 mm × 52 mm × 87 mm and weighs about 0.32 kg.
Q8. What applications is it suitable for?
It is ideal for applications requiring a large number of DC input points in a compact space.
