Technical Specifications
| Parameter | Specification |
|---|---|

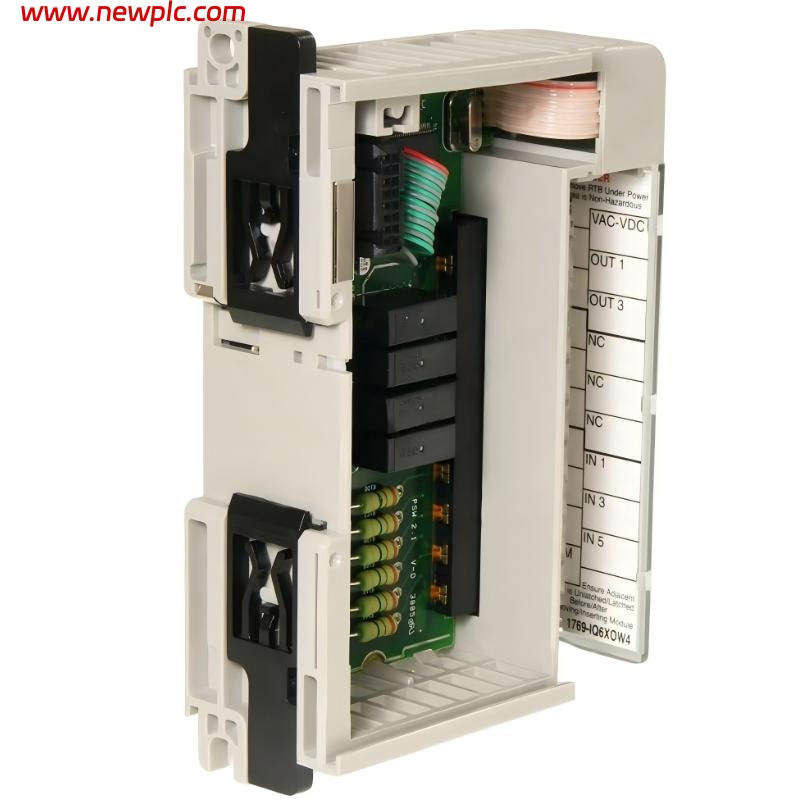

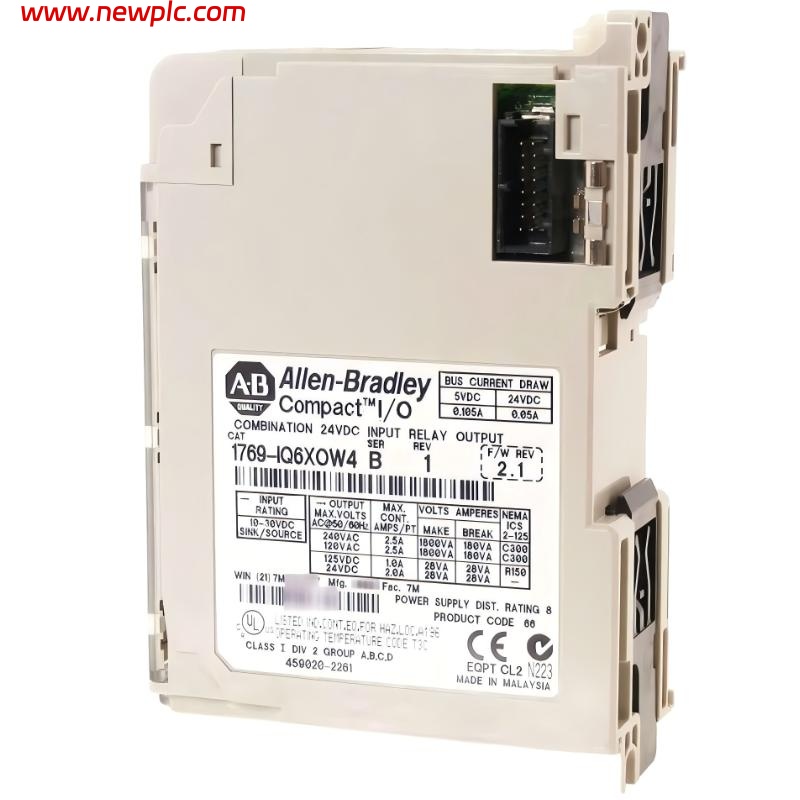

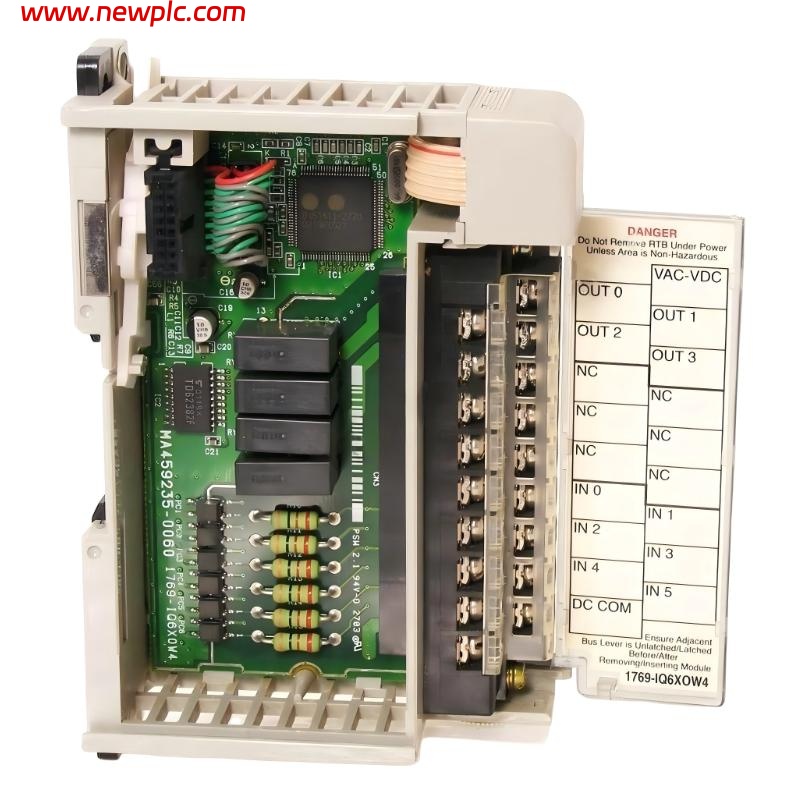

| Product | 1769-IQ6XOW4 CompactLogix Combination I/O Module |
| Module Type | Digital combination module (DC inputs + relay outputs) |
| Input Channels | 6 digital inputs |
| Output Channels | 4 relay outputs |
| Input Voltage Range | 10–30 V DC (24 V DC nominal) |
| Output Voltage Range | 5–265 V AC / 5–125 V DC |
| Input Type | Sink/source DC inputs |
| Output Type | Normally open relay outputs |
| On-State Voltage (Input) | ≥ 10 V DC |
| Off-State Voltage (Input) | ≤ 5 V DC |
| Input Current (Min) | 2 mA |
| Input Impedance | ~3 kΩ |
| Output Current (Per Point) | Up to 2.5 A |
| Output Current (Module Max) | 8 A |
| Response Time (Input) | ~8 ms ON / ~8 ms OFF |
| Response Time (Output) | ~10 ms ON / ~10 ms OFF |
| Backplane Current Draw | ~105 mA @ 5.1 V DC |
| Power Consumption | ~2.75 W |
| Isolation Voltage | Up to 1200 V AC (test) |
| Wiring | Removable terminal block (RTB) |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5% to 95% non-condensing |
| Shock (Operating) | 30 g |
| Vibration (Operating) | 5 g @ 10–500 Hz |
| Weight | ~0.28 kg |
| Dimensions (H × W × D) | 118 mm × 35 mm × 87 mm |
| Application | Mixed digital input/output control in compact automation systems |
FAQ
FAQ
Q1. What is the 1769-IQ6XOW4 used for?
It is used for applications requiring both digital inputs and relay outputs in a single compact module.
Q2. How many inputs and outputs does it have?
It provides 6 digital DC inputs and 4 relay outputs.
Q3. What type of input signals does it support?
It supports 24 V DC sink or source input signals.
Q4. What type of outputs are included?
It includes normally open relay outputs supporting both AC and DC loads.
Q5. What is the output voltage capability?
Outputs support 5–265 V AC or 5–125 V DC.
Q6. What is the maximum output current?
Each output can handle up to 2.5 A, with a module total of 8 A.
Q7. Does it require an external power supply?
Yes, field devices connected to outputs require external power, while the module itself draws from the backplane.
Q8. What are its dimensions and weight?
It measures 118 mm × 35 mm × 87 mm and weighs approximately 0.28 kg.
