Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Compact I/O |

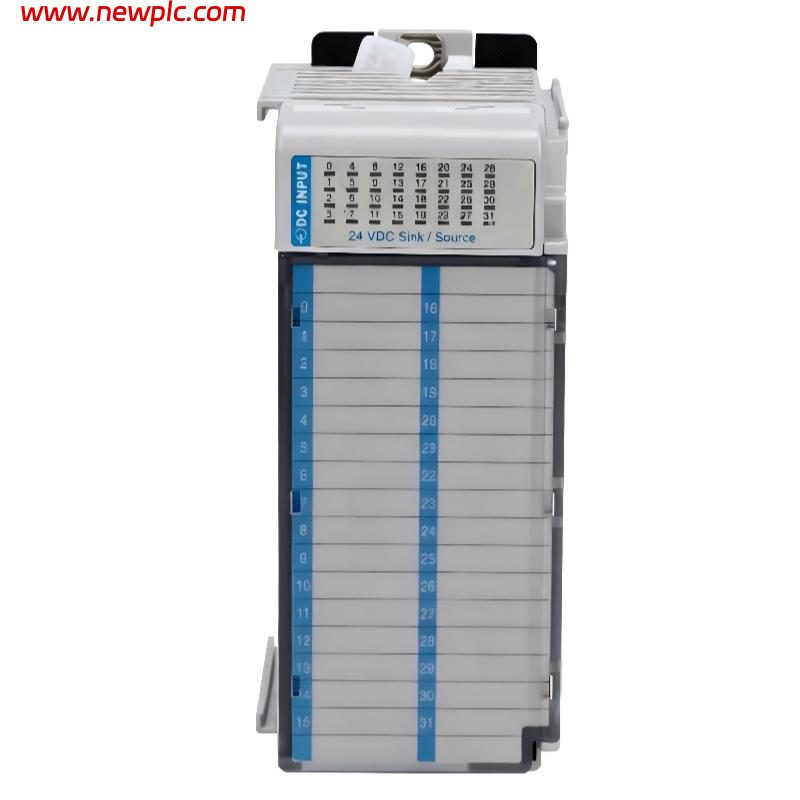

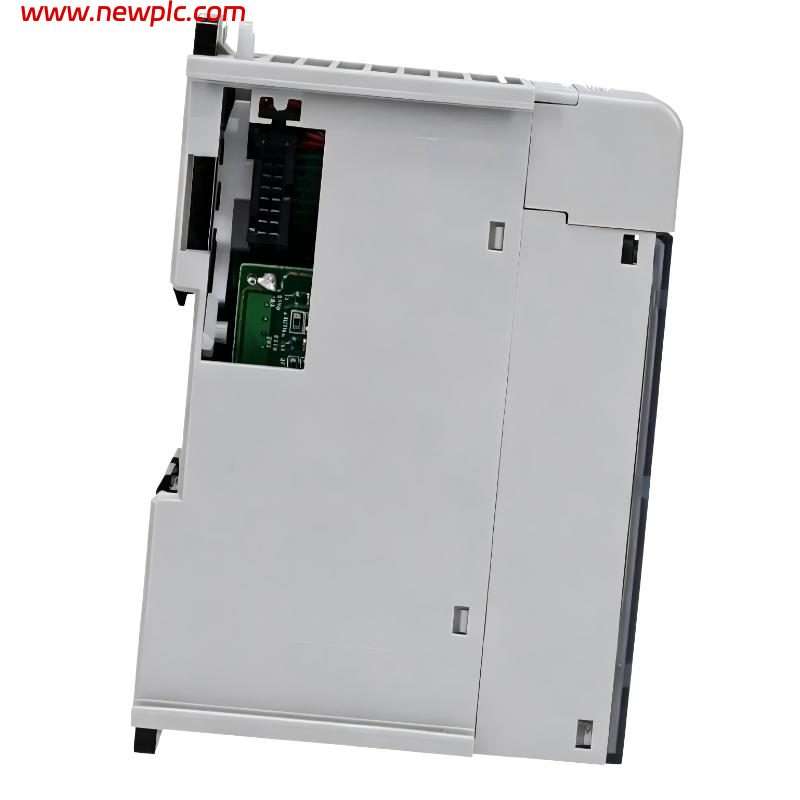

| Model Number | 1769-IQ32K |
| Product Type | DC Digital Input Module |
| Input Channels | 32 Digital Inputs |
| Input Voltage Range | 10 to 30V DC |
| Nominal Input Voltage | 24V DC |
| Input Type | Sink/Source DC Inputs |
| Signal Delay | Approx. 1 ms ON / 2 ms OFF |
| Isolation Voltage | 1200V AC Isolation |
| Backplane Current Draw @ 5.1V | Approx. 170 mA |
| Backplane Current Draw @ 24V | 0 mA |
| Power Dissipation | Approx. 4.5 W |
| Heat Dissipation | Approx. 15.4 BTU/hr |
| Module Protection | Conformal Coating |
| Wiring Category | Category 2 |
| Compatible Controllers | CompactLogix, MicroLogix 1500 |

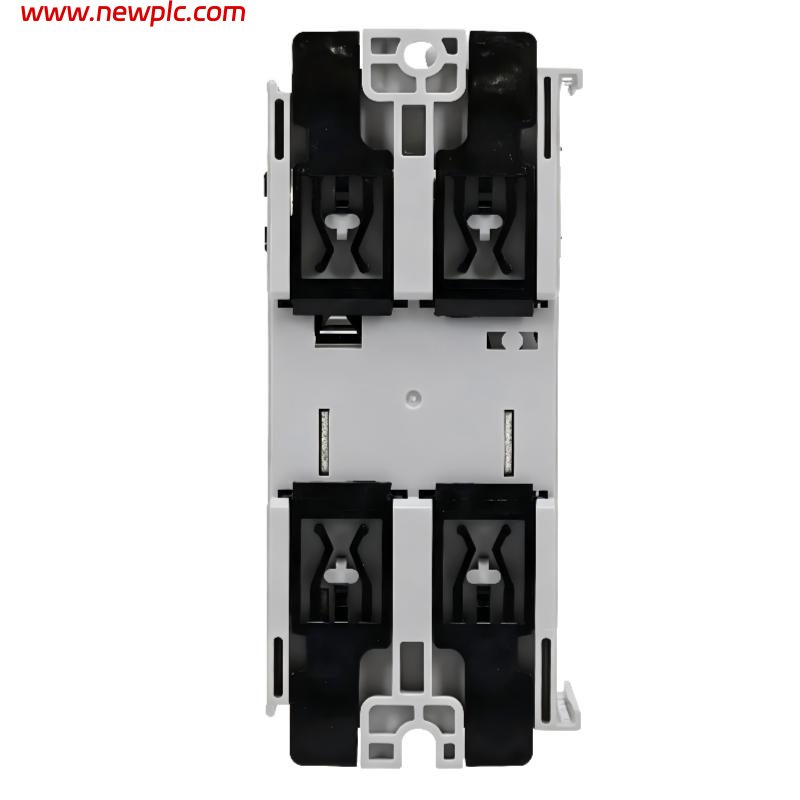

| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Shock Resistance | 30 G Operating |
| Dimensions | Approx. 118 x 35 x 87 mm |
| Weight | Approx. 0.2 – 0.4 kg |
| Certifications | UL, CE, CSA, Class I Division 2 |
| Lifecycle Status | Active Mature |
| Typical Applications | Industrial Automation, Machine Monitoring, Digital Signal Detection |
FAQ
FAQ
Q1: What is the Allen-Bradley 1769-IQ32K used for?
A1: The 1769-IQ32K is a Compact I/O digital input module used for monitoring 24V DC field input signals in industrial automation systems.
Q2: How many input channels does the 1769-IQ32K provide?
A2: The module includes 32 digital DC input channels for high-density input applications.
Q3: What input voltage does the 1769-IQ32K support?
A3: The module supports a DC input voltage range of 10 to 30V DC, with a nominal voltage of 24V DC.
Q4: What does the “K” in 1769-IQ32K indicate?
A4: The “K” version includes conformal coating protection, which helps improve resistance against moisture, dust, and corrosive industrial environments.
Q5: Which controllers are compatible with the 1769-IQ32K?
A5: The module is compatible with Allen-Bradley CompactLogix controllers and MicroLogix 1500 systems that support 1769 Compact I/O modules.
Q6: Can the 1769-IQ32K be mounted on a DIN rail?
A6: Yes. The module supports both DIN rail mounting and panel mounting for flexible installation in industrial control cabinets.
Q7: Is the 1769-IQ32K suitable for industrial environments?
A7: Yes. The module is designed for industrial automation environments and includes certifications such as UL, CE, CSA, and Class I Division 2.
Q8: What are the common applications of the 1769-IQ32K?
A8: Common applications include conveyor systems, packaging machines, factory automation, machine status monitoring, and industrial process control.
