Technical Specifications
| Parameter | Specification |
|---|---|

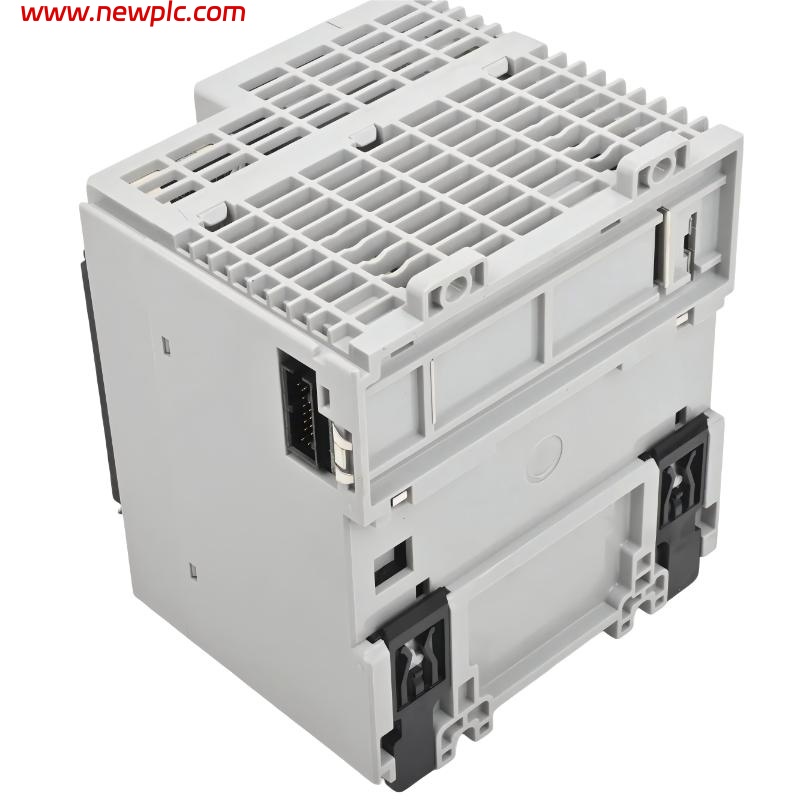

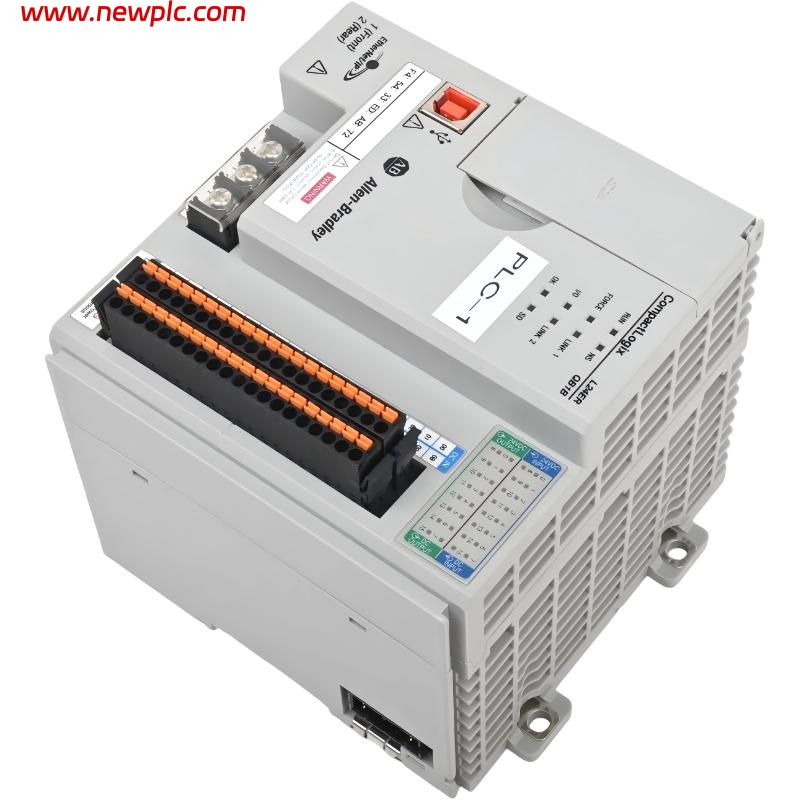

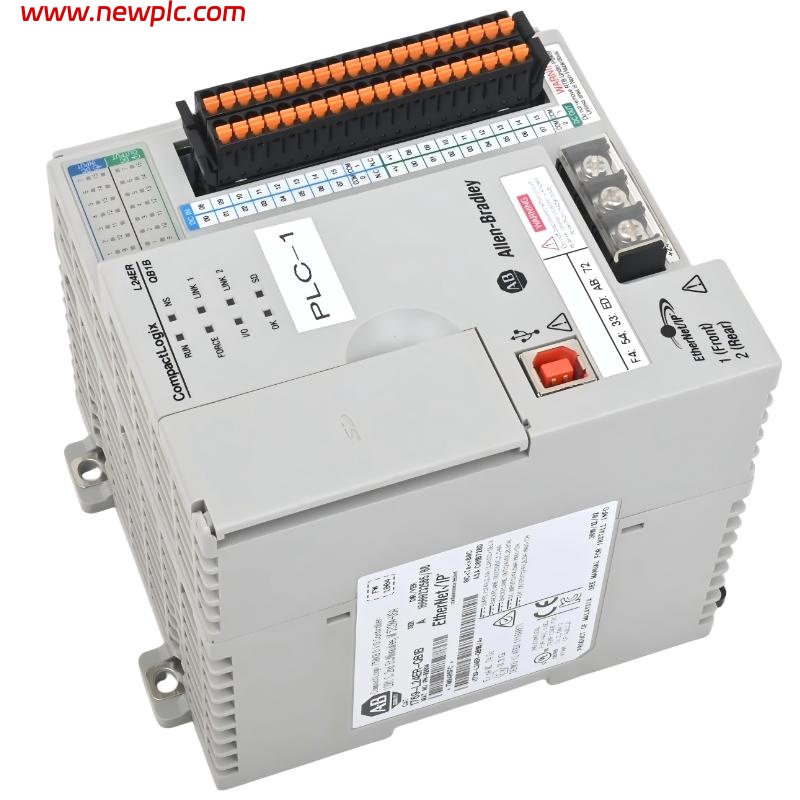

| Product Name | Allen-Bradley CompactLogix 5370 L2 Controller |
| Model Number | 1769-L24ER-QB1B |
| Processor Type | Embedded CompactLogix controller |
| Memory | 1 MB user memory (approx.) |
| Communication Ports | 2 × Ethernet/IP ports |
| Integrated I/O | 16-point embedded I/O (digital input/output mix) |
| Power Supply Voltage | 24V DC |
| Expansion Capability | 1769 Compact I/O modules support |
| Programing Software | Studio 5000 Logix Designer |
| Mounting Type | DIN rail mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 118 × 87 × 105 mm (approx.) |
| Weight | 0.45 kg (approx.) |
| Enclosure Rating | Open-style industrial controller module |
FAQ
FAQ
Q1. What type of controller is the 1769-L24ER-QB1B?
It is a CompactLogix 5370 L2 programmable automation controller designed for small to medium industrial control applications.
Q2. How many Ethernet ports does it have?
It includes two built-in Ethernet/IP communication ports for network redundancy or device separation.
Q3. Can this controller support expansion I/O modules?
Yes, it supports Allen-Bradley 1769 Compact I/O expansion modules.
Q4. What software is used for programming?
It is programmed using Rockwell Automation Studio 5000 Logix Designer.
Q5. Does it include built-in I/O?
Yes, it comes with 16-point embedded digital I/O combining inputs and outputs.
Q6. What is the power requirement?
The controller operates on a 24V DC power supply.
Q7. Is it suitable for harsh industrial environments?
Yes, it is designed for industrial environments with standard temperature and humidity tolerances.
Q8. What is the main application of this controller?
It is commonly used in machine control, packaging systems, material handling, and small-scale automation systems.
