Technical Specifications
| Parameter | Specification |
|---|---|

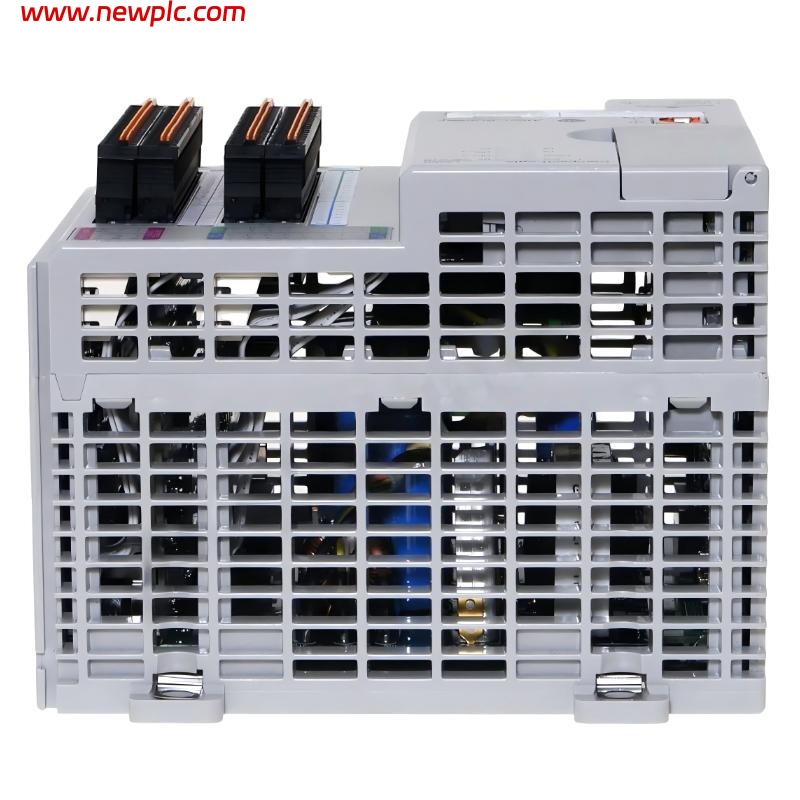

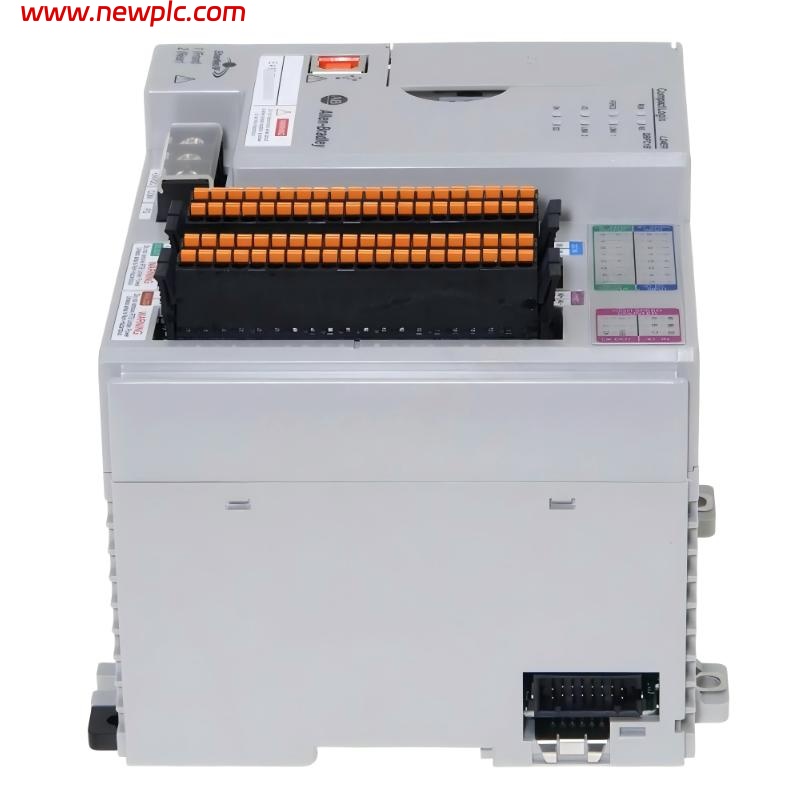

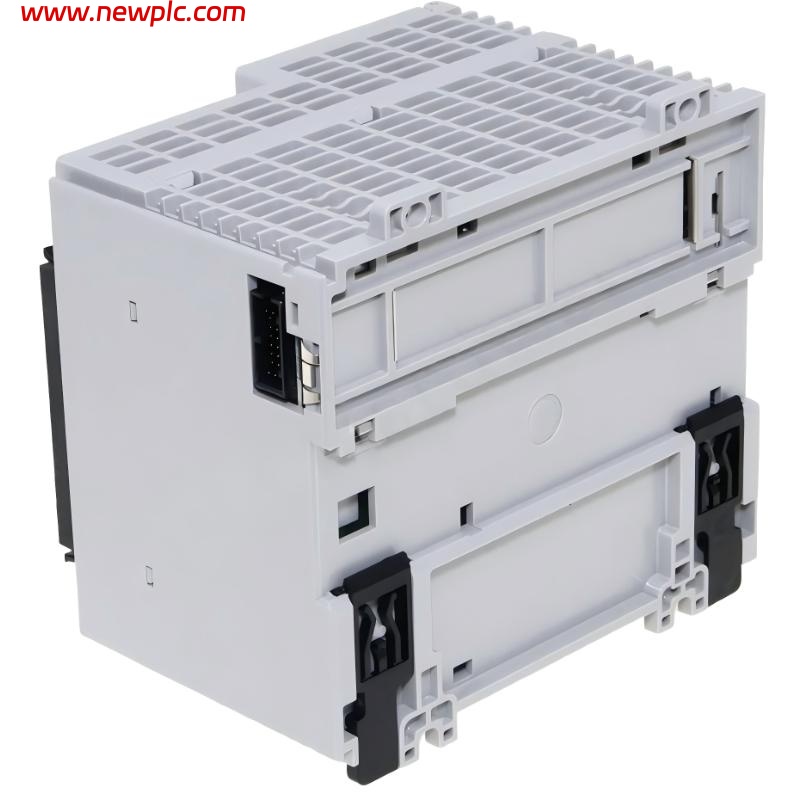

| Product Name | Allen-Bradley CompactLogix 5370 L2 Safety Controller |
| Model Number | 1769-L24ER-QBFC1B |
| Controller Type | Integrated standard + safety programmable automation controller |
| Processor Type | CompactLogix / GuardLogix architecture |
| Standard Memory | 1 MB user memory (approx.) |
| Safety Memory | Integrated safety memory (approx. 0.5 MB, depends on configuration) |
| Communication Ports | 2 × Ethernet/IP ports |
| Integrated I/O | 24-point embedded digital I/O (mix of inputs and outputs) |
| Safety Capability | SIL 3 / PLe safety-rated control functions |
| Expansion Capability | 1769 Compact I/O module support |
| Programming Software | Studio 5000 Logix Designer |
| Power Supply Voltage | 24V DC |
| Mounting Type | DIN rail mounting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 118 × 87 × 105 mm (approx.) |
| Weight | 0.50 kg (approx.) |
| Enclosure Type | Open-style industrial controller module |
FAQ
FAQ
Q1. What is the 1769-L24ER-QBFC1B used for?
It is used for machine control applications requiring both standard automation and integrated safety functions.
Q2. Does this controller support safety control?
Yes, it includes integrated safety capabilities with SIL 3 / PLe compliance.
Q3. How many Ethernet ports are available?
It has two built-in Ethernet/IP ports for industrial communication.
Q4. Can it be expanded with additional I/O modules?
Yes, it supports Allen-Bradley 1769 Compact I/O expansion modules.
Q5. What programming environment is required?
It is programmed using Rockwell Automation Studio 5000 Logix Designer.
Q6. What is the difference between this model and standard L24ER versions?
This version includes integrated safety controller functions in addition to standard control capabilities.
Q7. What is the power supply requirement?
It operates on a 24V DC industrial power supply.
Q8. What industries typically use this controller?
It is commonly used in packaging, material handling, assembly lines, and safety-critical automation systems.
