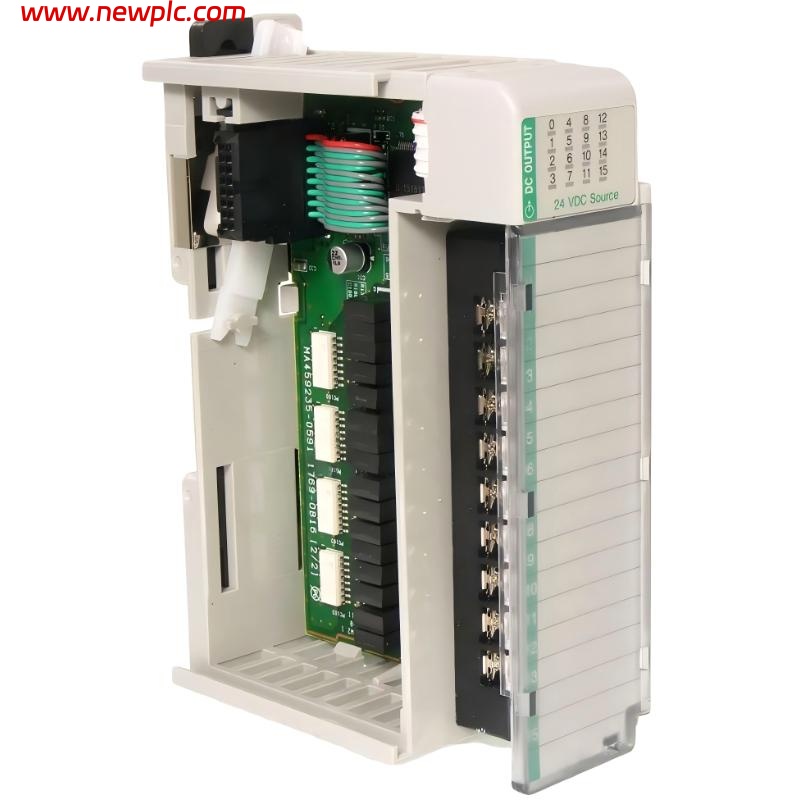

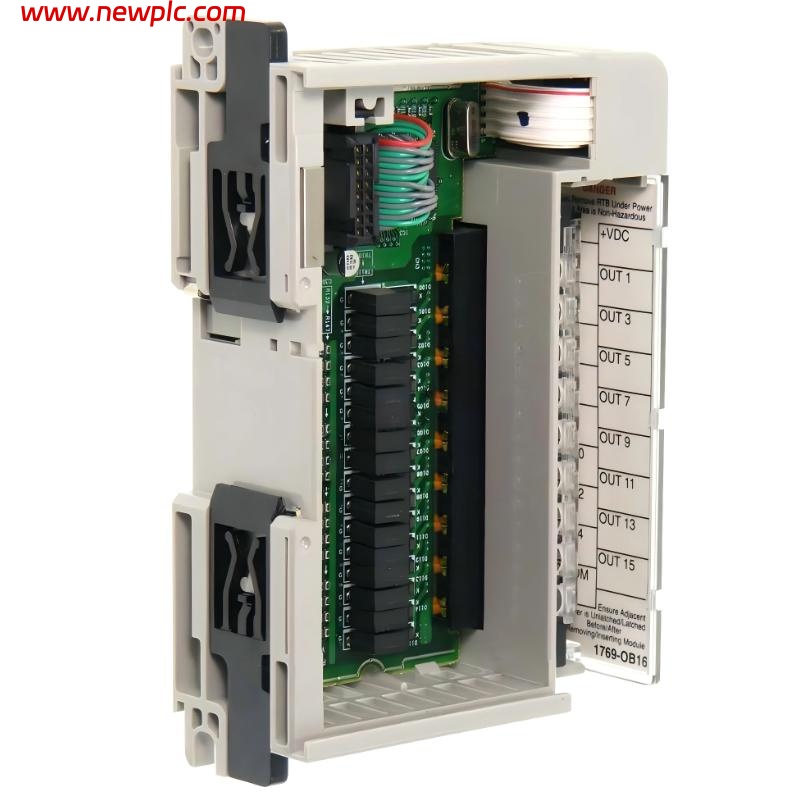

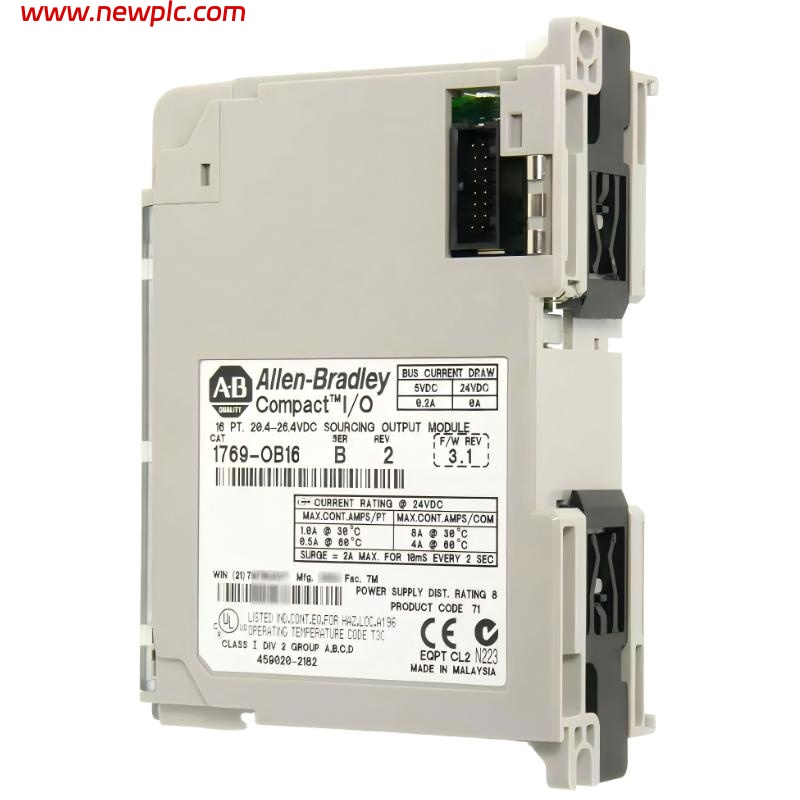

Allen Bradley 1769-OB16 Digital DC output module

FAQ

Q1. What is the 1769-OB16 used for?
It is used to switch DC loads such as relays, solenoids, and indicators in CompactLogix systems.

Q2. How many output channels does it have?
It provides 16 digital DC output channels arranged in two groups of 8 points.

Q3. What type of output technology does it use?
It uses transistor-based sourcing outputs for DC switching applications.

Q4. What is the operating voltage range?
It operates within a 10–31.2 VDC range.

Q5. What is the maximum current per output?
Each output can handle up to 0.5 A continuous load.

Q6. Are outputs individually isolated?
No, outputs are group-isolated rather than individually isolated.

Q7. Can it be used for inductive loads?
Yes, but suppression devices (diodes or MOVs) are recommended for protection.

Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix 1500 controllers.
