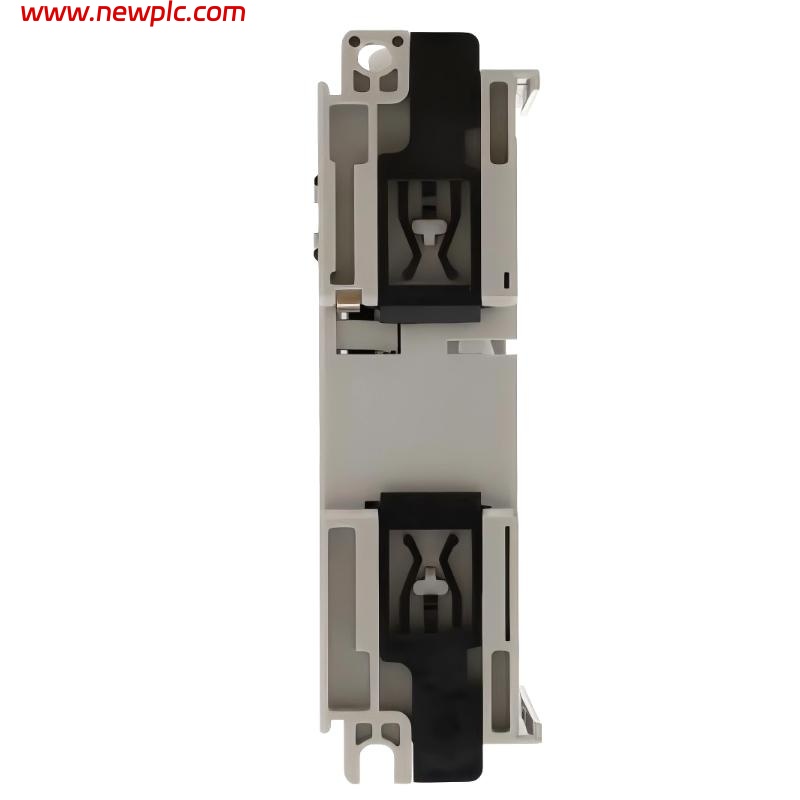

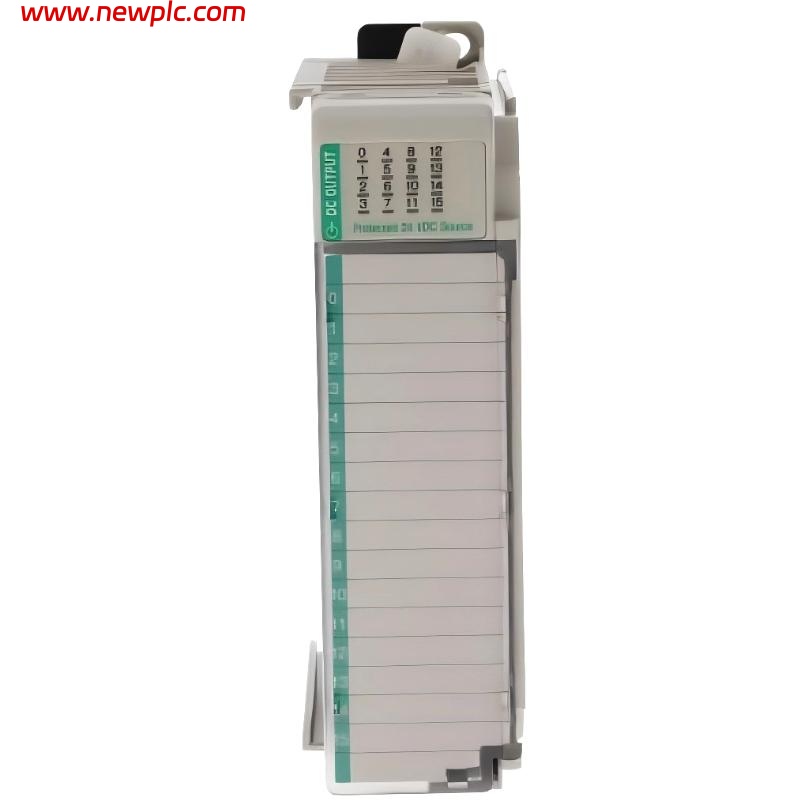

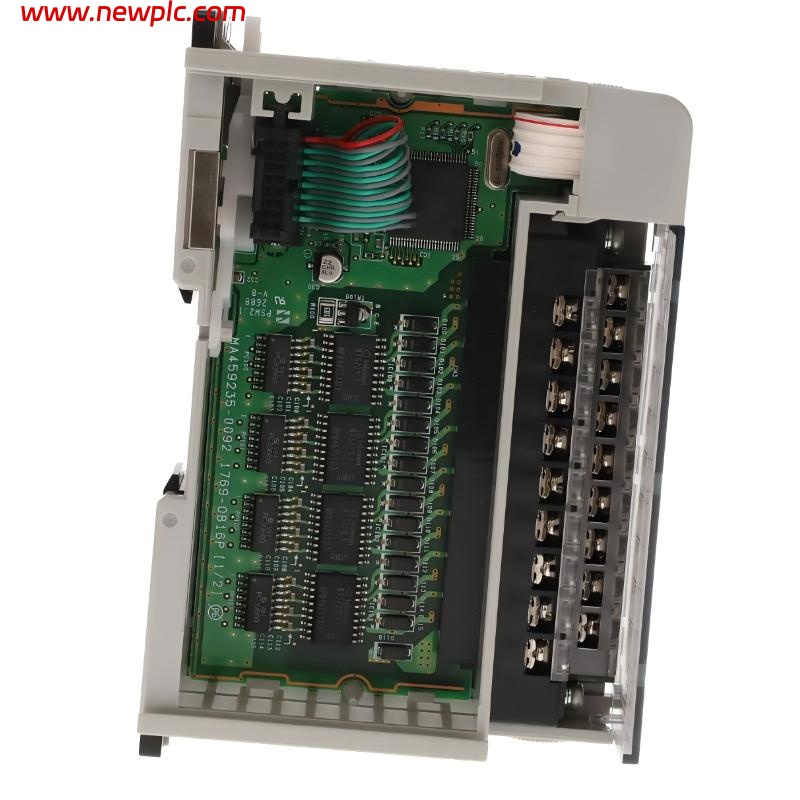

Allen Bradley 1769-OB16P Digital DC output module

FAQ

Q1. What is the 1769-OB16P used for?
It is used to control DC field devices such as solenoids, relays, and indicators in CompactLogix systems.

Q2. What makes the “P” version different?
The “P” version includes electronic fuse protection on each output channel to reduce damage from overloads.

Q3. How many output channels does it have?
It provides 16 DC output channels arranged in two isolated groups.

Q4. What is the operating voltage range?
It operates in a 20.4–26.4 VDC range, typically used with 24VDC industrial systems.

Q5. Can it handle short-circuit conditions?
Yes, each channel is electronically protected against short circuits and overloads.

Q6. Is it suitable for inductive loads?
Yes, but suppression devices (diodes or MOVs) are recommended for longer lifespan.

Q7. Does it require external fusing?
No, internal electronic fusing provides built-in protection per channel.

Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix 1500 controllers.
