Technical Specifications
| Parameter | Specification |
|---|---|

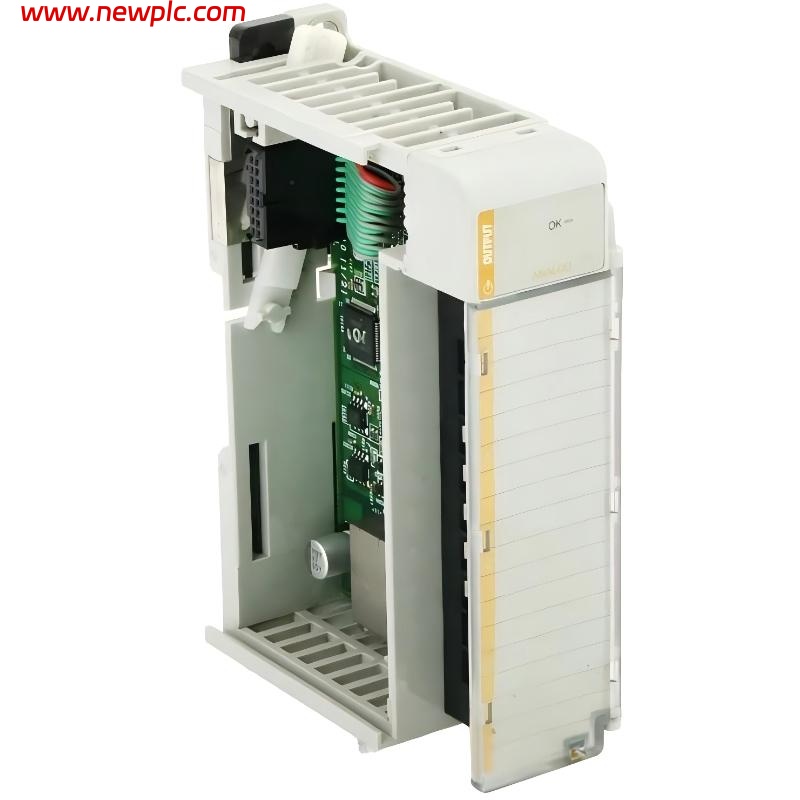

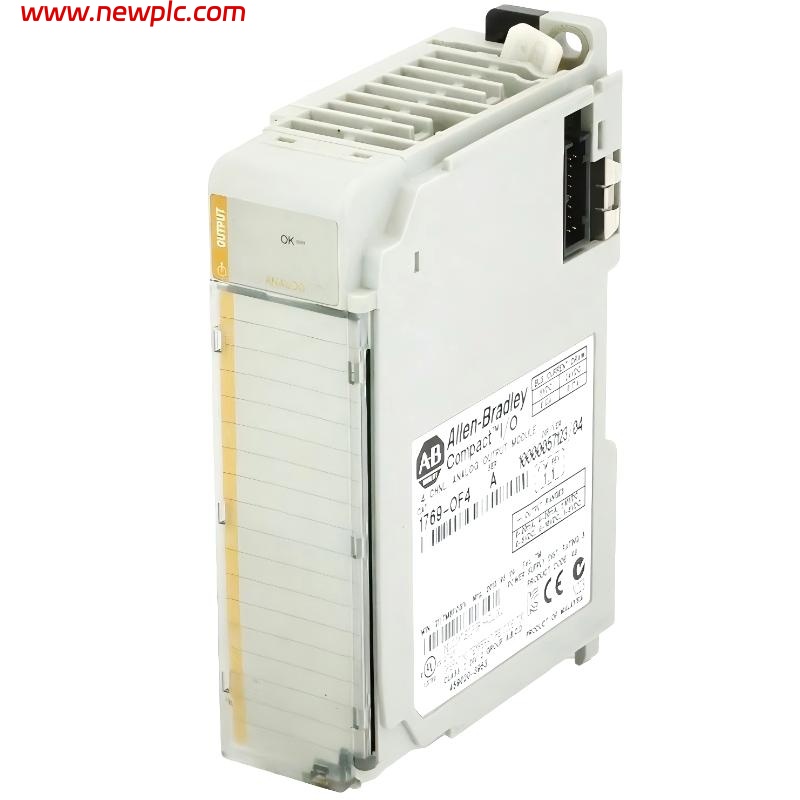

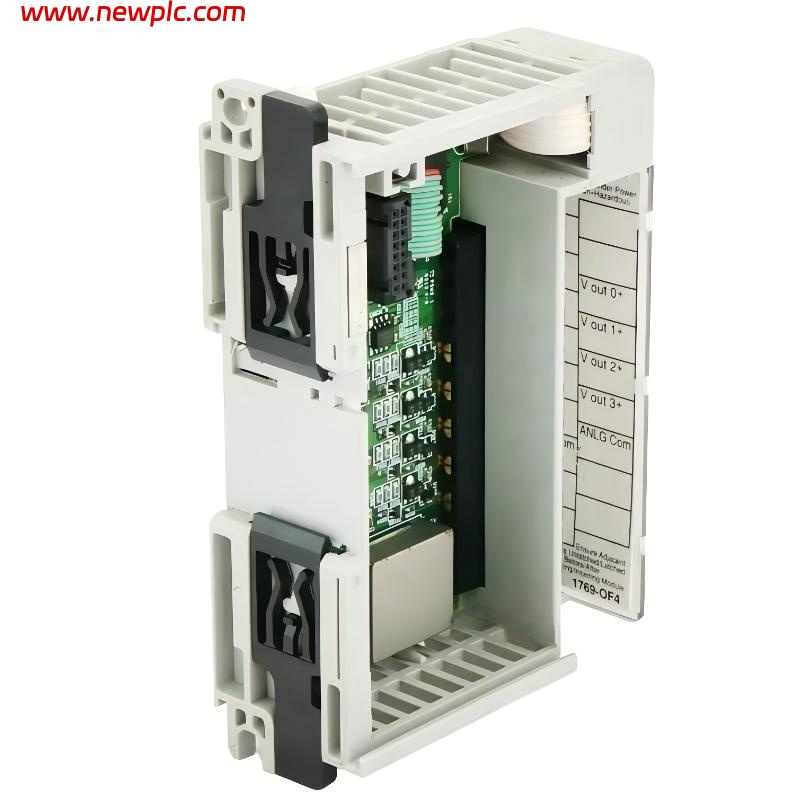

| Product Name | Allen-Bradley CompactLogix Analog Output Module |
| Model Number | 1769-OF4 |
| Module Type | Analog output module |
| Output Channels | 4 single-ended channels |
| Output Signal Types | Voltage & current (configurable per channel) |
| Voltage Output Range | 0–10 V DC, ±10 V DC (depending on configuration) |
| Current Output Range | 0–20 mA, 4–20 mA |
| Resolution | 15-bit |
| Accuracy | Approx. ±0.5% full scale @ 25°C |
| Conversion Time | ~2.5–3.8 ms (depending on mode) |
| Backplane Current | Approx. 120 mA @ 5.1 V DC |
| Power Dissipation | Approx. 2.86 W max |
| Isolation Voltage | 510 VAC or 720 VDC (1 min, output group to bus) |
| Load Resistance | Voltage: ≥1 kΩ / Current: up to 600 Ω |
| Step Response | ~2.9 ms (to 63% output) |
| Mounting Type | DIN rail / panel mount |
| Slot Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 118 × 35 × 87 mm (approx.) |
| Weight | 0.27 kg (approx.) |
FAQ
FAQ
Q1. What is the 1769-OF4 used for?
It is used to output analog control signals such as 0–10V or 4–20mA for devices like valves, drives, and actuators.
Q2. How many output channels does it have?
It provides 4 independent analog output channels.
Q3. What signal types does it support?
It supports both voltage (±10V, 0–10V) and current (0–20mA, 4–20mA) outputs.
Q4. What is the resolution of this module?
It has a 15-bit resolution for precise analog control.
Q5. Can each channel be configured independently?
Yes, each channel can be individually configured for voltage or current output.
Q6. What is the typical response time?
The step response is approximately 2.9 ms to reach 63% of final output.
Q7. Does it require external power?
It is powered through the CompactLogix backplane; no separate field power supply is needed.
Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix 1500 controllers.
