Technical Specifications
| Parameter | Specification |
|---|---|

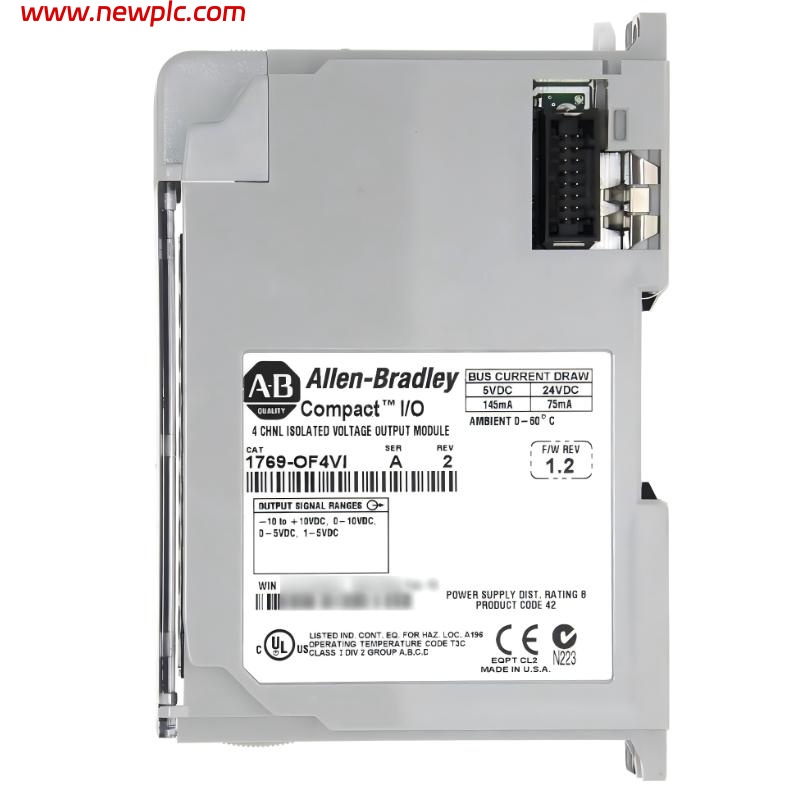

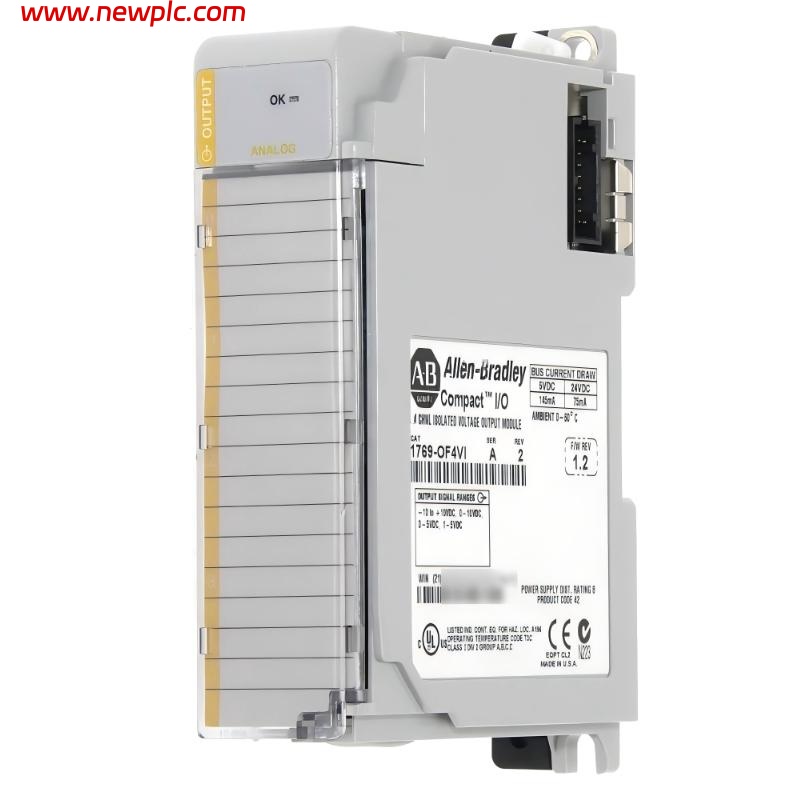

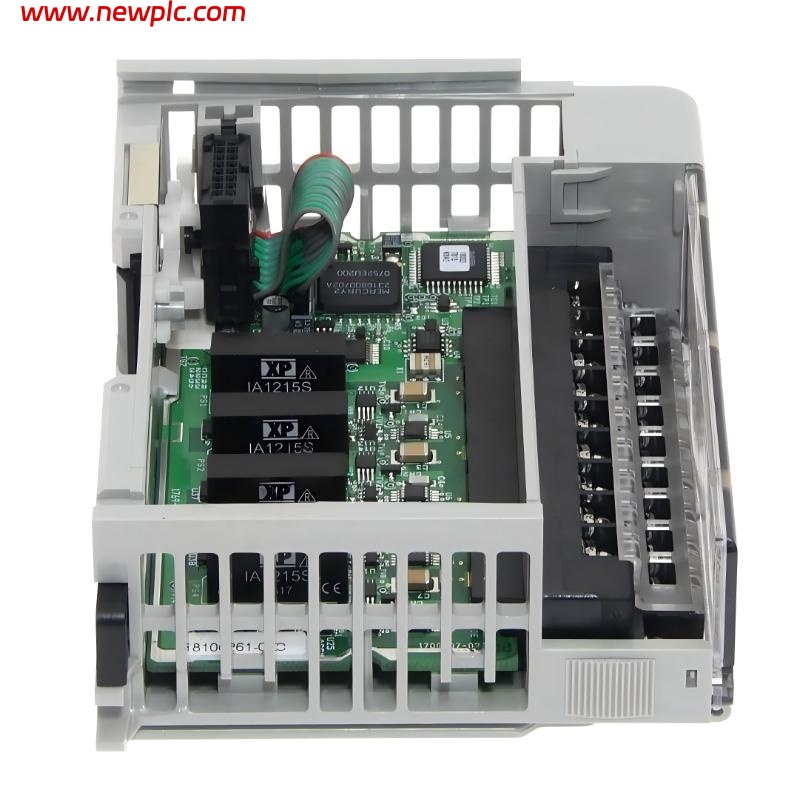

| Product Name | Allen-Bradley CompactLogix Isolated Analog Voltage Output Module |
| Model Number | 1769-OF4VI |
| Module Type | Analog output module (isolated voltage outputs) |
| Output Channels | 4 individually isolated differential channels |
| Output Signal Types | ±10 VDC, 0–10 VDC, 0–5 VDC, 1–5 VDC |
| Output Technology | Precision DAC with isolated channel architecture |
| Resolution | 15-bit plus sign (bipolar) |
| Accuracy | Approx. ±0.05% full scale (typical) |
| Conversion Time | Up to 120 ms (all channels) |
| Load Capability | Voltage outputs, high-impedance loads recommended |
| Backplane Current | Approx. 165 mA @ 5 VDC |
| Power Dissipation | Approx. 2.0 W |
| Isolation Voltage | 500 VAC or 710 VDC (1 min test, channel-to-bus) |
| Working Voltage | 30 VAC / 30 VDC (IEC reinforced insulation) |
| Output Protection | Short-circuit and overvoltage protection with diagnostics |
| Mounting Type | DIN rail or panel mount |
| Slot Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 118 × 35 × 87 mm (approx.) |
| Weight | 0.27 kg (approx.) |
FAQ
FAQ
Q1. What is the 1769-OF4VI used for?
It is used to generate precise isolated analog voltage signals for controlling devices like valves, drives, and instrumentation in industrial automation systems.
Q2. What makes the 1769-OF4VI different from standard OF4 modules?
It provides individually isolated output channels, improving noise immunity and signal stability in demanding environments.
Q3. What output ranges does it support?
It supports ±10 VDC, 0–10 VDC, 0–5 VDC, and 1–5 VDC configurations.
Q4. How many channels does it have?
It provides 4 independent analog output channels.
Q5. Is the module protected against faults?
Yes, it includes short-circuit, overvoltage protection, and built-in diagnostics.
Q6. What is the resolution of the output?
It has a 15-bit resolution with sign for high-precision analog control.
Q7. Does it require external power?
No, it is powered through the CompactLogix backplane.
Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix 1500 platforms.
