Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Compact I/O |

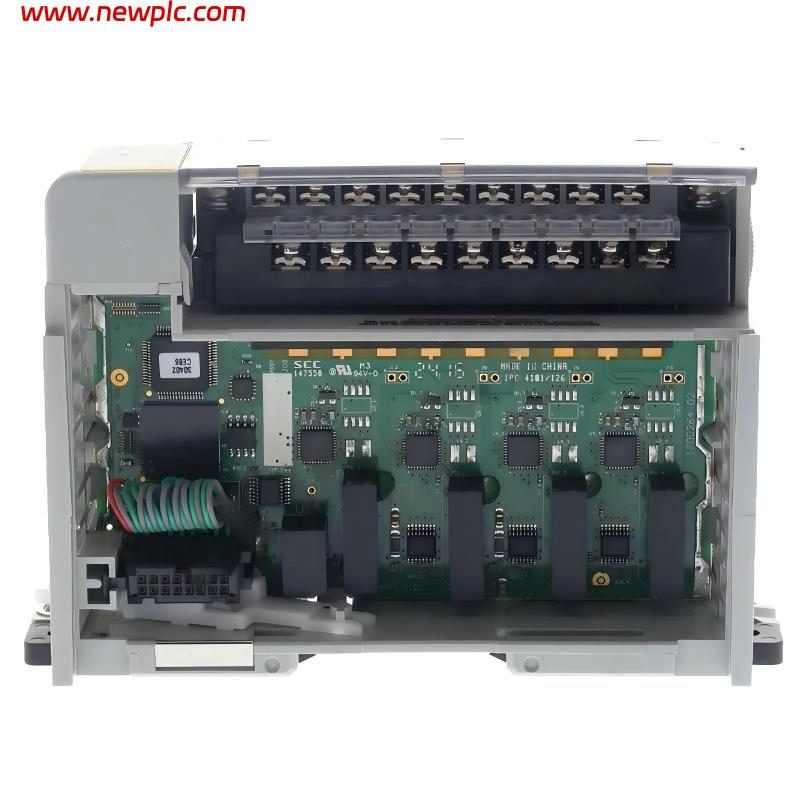

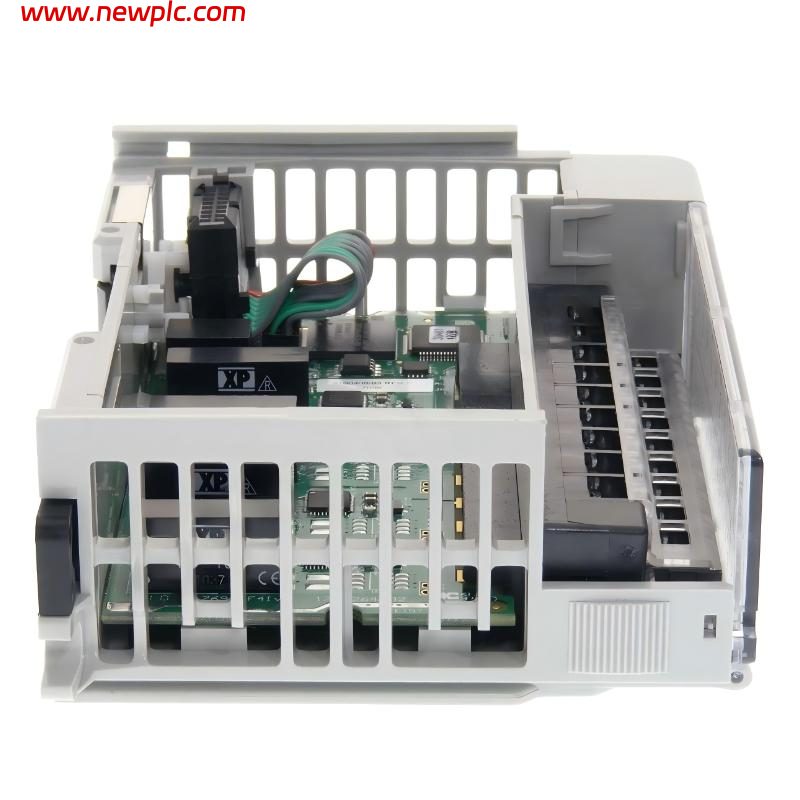

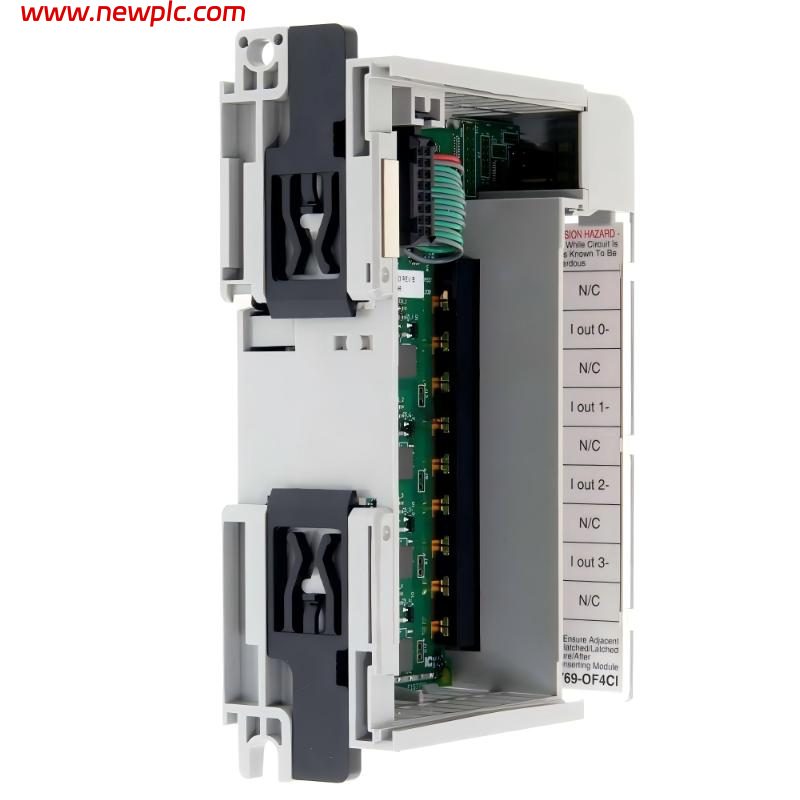

| Model Number | 1769-OF4CI |
| Product Type | Analog Current Output Module |
| Output Channels | 4 Analog Outputs |
| Output Signal Type | Current Output |
| Output Current Range | 0 to 20 mA, 4 to 20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.5% Full Scale |
| Converter Type | Digital-to-Analog Converter (DAC) |
| Update Time | Approx. 2.9 ms for All Channels |
| Backplane Current Draw @ 5.1V | Approx. 145 mA |
| Backplane Current Draw @ 24V | Approx. 120 mA |
| Power Dissipation | Approx. 5.5 W |
| Heat Dissipation | Approx. 18.8 BTU/hr |
| Isolation Voltage | 30V Continuous |
| Wiring Category | Category 2 |
| Compatible Controllers | CompactLogix, MicroLogix 1500 |
| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Shock Resistance | 30 G Operating |
| Dimensions | Approx. 118 x 35 x 87 mm |
| Weight | Approx. 0.30 kg |
| Certifications | UL, CE, CSA, Class I Division 2 |
| Lifecycle Status | Active Mature |
| Typical Applications | Process Control, Variable Speed Drives, Industrial Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1769-OF4CI used for?
A1: The 1769-OF4CI is an analog current output module used for transmitting analog control signals to industrial devices such as variable frequency drives, valves, and process instruments.
Q2: How many output channels does the 1769-OF4CI provide?
A2: The module includes 4 independent analog current output channels.
Q3: What output signal ranges are supported by the 1769-OF4CI?
A3: The module supports 0–20 mA and 4–20 mA current output ranges commonly used in industrial process control systems.
Q4: Which controllers are compatible with the 1769-OF4CI?
A4: The module is compatible with Allen-Bradley CompactLogix controllers and MicroLogix 1500 systems using the 1769 Compact I/O platform.
Q5: What is the resolution of the 1769-OF4CI module?
A5: The module features 16-bit resolution for accurate analog signal output and process control performance.
Q6: Can the 1769-OF4CI be mounted on a DIN rail?
A6: Yes. The module supports both DIN rail mounting and panel mounting for flexible industrial installation.
Q7: Is the 1769-OF4CI suitable for industrial environments?
A7: Yes. The module is designed for industrial automation environments and includes certifications such as UL, CE, CSA, and Class I Division 2.
Q8: What are the common applications of the 1769-OF4CI?
A8: Common applications include process automation, motor speed control, valve positioning, industrial monitoring systems, and analog signal transmission in manufacturing environments.
