Technical Specifications
| Parameter | Specification |
|---|---|

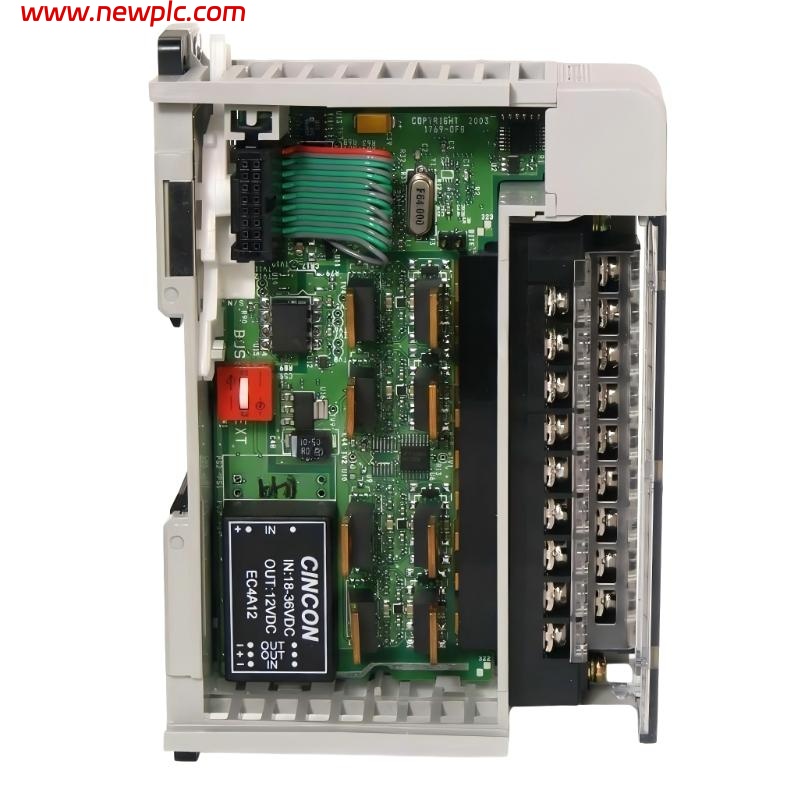

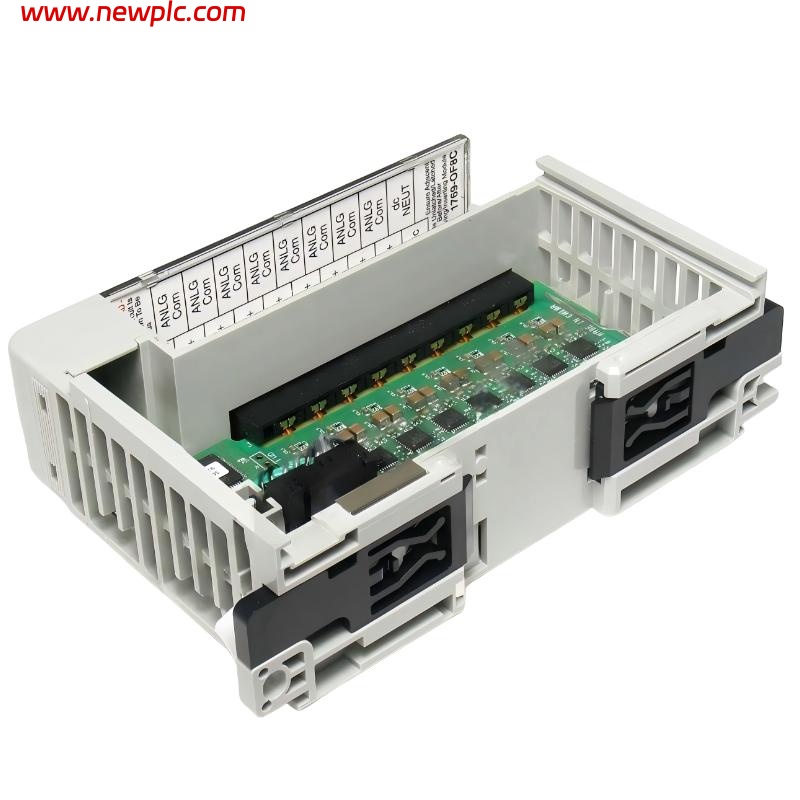

| Product Name | Allen-Bradley CompactLogix Analog Voltage Output Module |
| Model Number | 1769-OF8V |
| Module Type | Analog output module (voltage output) |
| Output Channels | 8 single-ended channels |
| Output Signal Type | Voltage only |
| Voltage Output Range | ±10 VDC, 0–10 VDC, 0–5 VDC, 1–5 VDC |
| Full-Scale Range | Up to ±10.5 VDC (extended range) |
| Resolution | 16-bit (bipolar) |
| Accuracy | Approx. ±0.5% full scale @ 25°C |
| Conversion Time | Max. 5 ms (all channels) |
| Step Response | < 2.9 ms to 63% |
| Load Requirement | ≥ 1 kΩ (typical voltage output load) |
| Backplane Current | Approx. 145 mA @ 5 VDC |
| Power Dissipation | Approx. 2.1–2.2 W |
| Isolation Voltage | 500 VAC / 710 VDC (group-to-bus) |
| Mounting Type | DIN rail or panel mount |
| Slot Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 118 × 87 × 35 mm |
| Weight | Approx. 1.0 kg |
| Enclosure Type | Open-style module |
FAQ
FAQ
Q1. What is the 1769-OF8V used for?
It is used to output precise analog voltage signals to control devices such as drives, valves, and actuators.
Q2. How many output channels does it provide?
It provides 8 independent analog voltage output channels.
Q3. Does it support current output?
No, this model is designed for voltage output only.
Q4. What voltage ranges are supported?
It supports ±10V, 0–10V, 0–5V, and 1–5V configurations.
Q5. What is the resolution of the module?
It provides 16-bit resolution for accurate signal control.
Q6. What is the response speed?
The step response is less than 2.9 ms, ensuring fast signal updates.
Q7. Does it require external power?
No, it is powered via the CompactLogix backplane.
Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix 1500 systems.
