Technical Specifications
| Parameter | Specification |
|---|---|

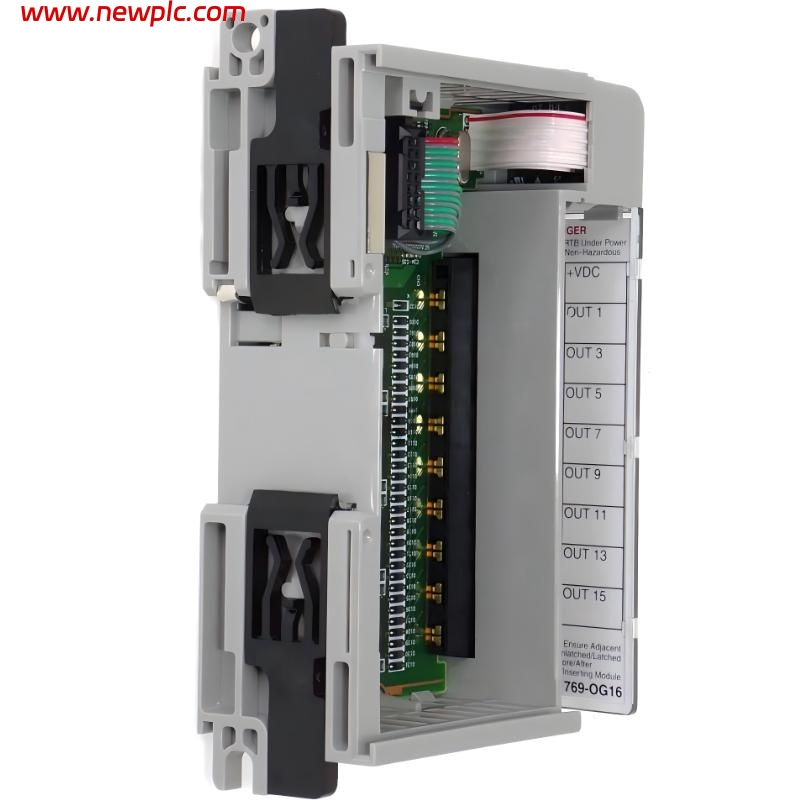

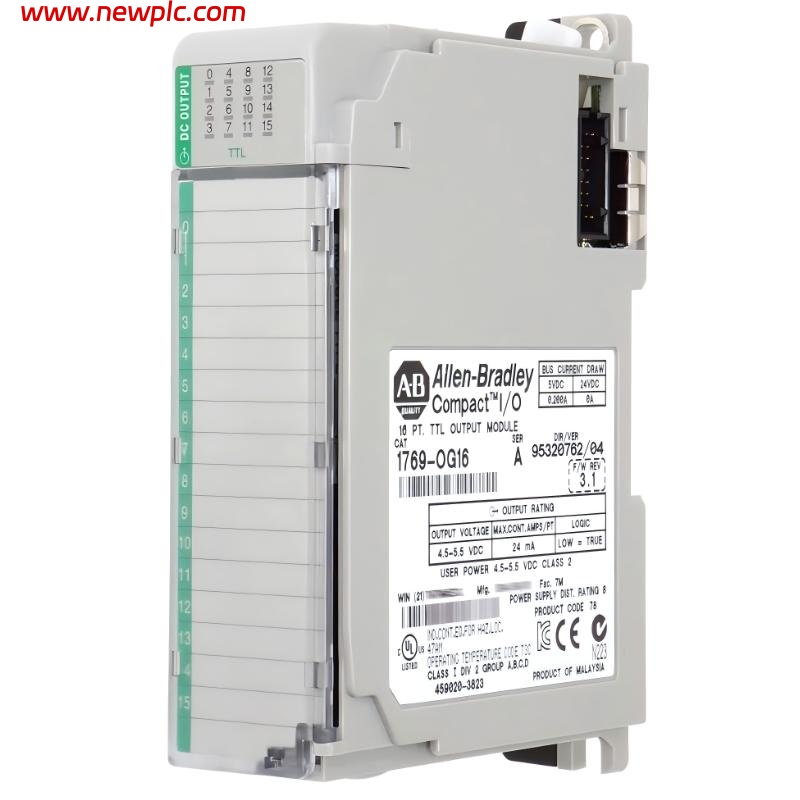

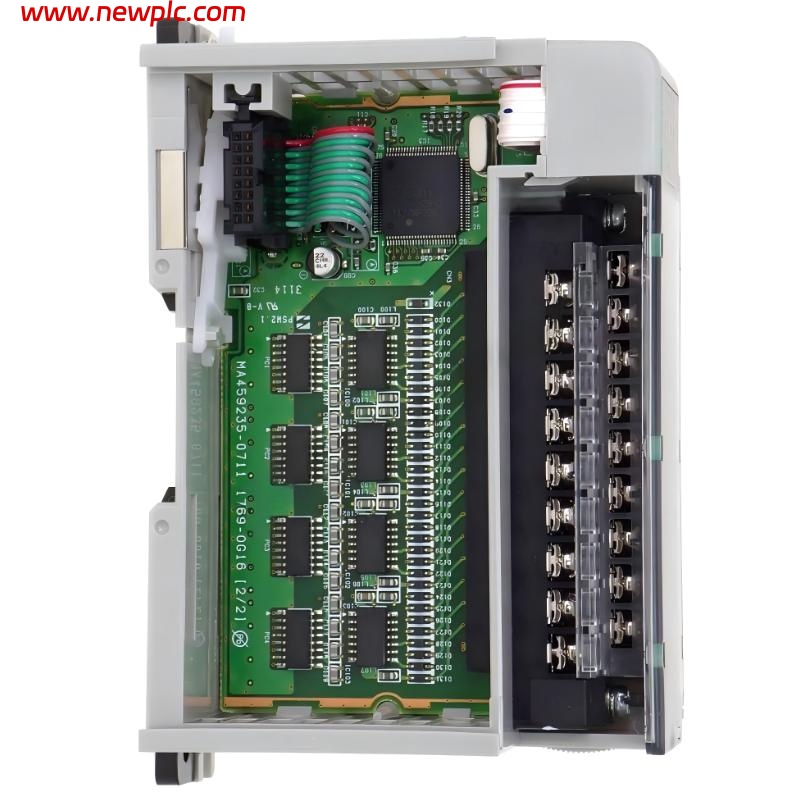

| Product Name | Allen-Bradley CompactLogix TTL DC Output Module |
| Model Number | 1769-OG16 |
| Module Type | Digital DC output module (TTL level) |
| Output Channels | 16 outputs |
| Output Signal Type | 5 VDC TTL output |
| Output Voltage Range | 4.5–5.5 VDC |
| Output Technology | TTL (low-voltage logic-level outputs) |
| Signal Ripple | ≤ 50 mV peak-to-peak |
| Output Delay | Approx. 0.25 ms ON/OFF |
| Isolation Voltage | 1200 VAC for 2 s or 1697 VDC |
| Backplane Current | Approx. 150 mA @ 5.1 VDC (typical) |
| Power Dissipation | Approx. 3.5 W max (typical) |
| Load Type | Logic-level devices (TTL-compatible inputs) |
| Mounting Type | DIN rail or panel mount |
| Slot Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 118 × 35 × 87 mm |
| Weight | 0.27 kg (approx.) |
| Enclosure Type | Open-style module |
FAQ
FAQ
Q1. What is the 1769-OG16 used for?
It is used to provide TTL-level digital outputs for interfacing with low-voltage logic devices and electronic circuits.
Q2. What type of output does this module provide?
It provides 5V DC TTL (Transistor-Transistor Logic) outputs.
Q3. How many output channels are available?
It offers 16 digital output channels.
Q4. Can it drive standard 24V industrial loads directly?
No, it is designed for 5V logic-level devices, not for direct control of 24V loads.
Q5. What is the output voltage range?
The output operates within 4.5–5.5 VDC.
Q6. What makes this module different from OB or OV series?
Unlike standard DC output modules, it outputs TTL-level signals for electronic or interface applications.
Q7. What is the response time of the outputs?
The output switching time is approximately 0.25 ms.
Q8. What systems is it compatible with?
It is compatible with CompactLogix controllers and can be used as expansion I/O in MicroLogix 1500 systems.
