Technical Specifications
| Parameter | Specification |
|---|---|

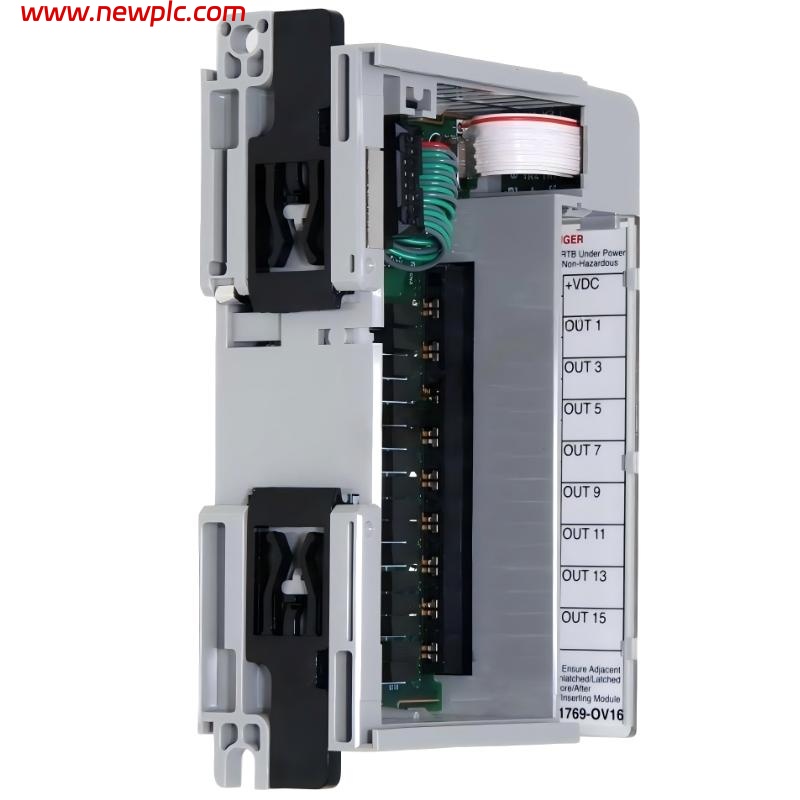

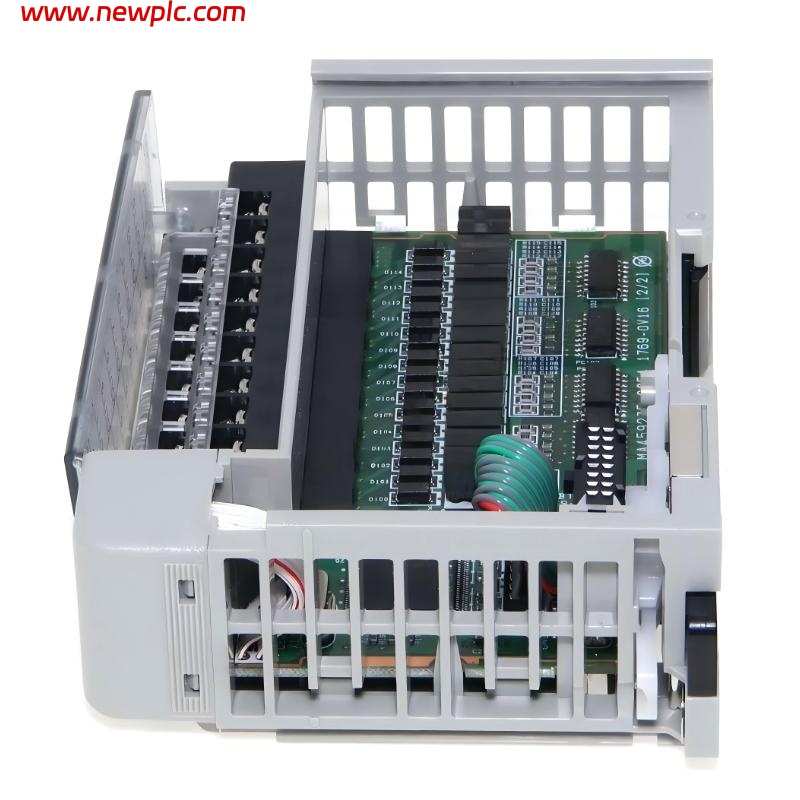

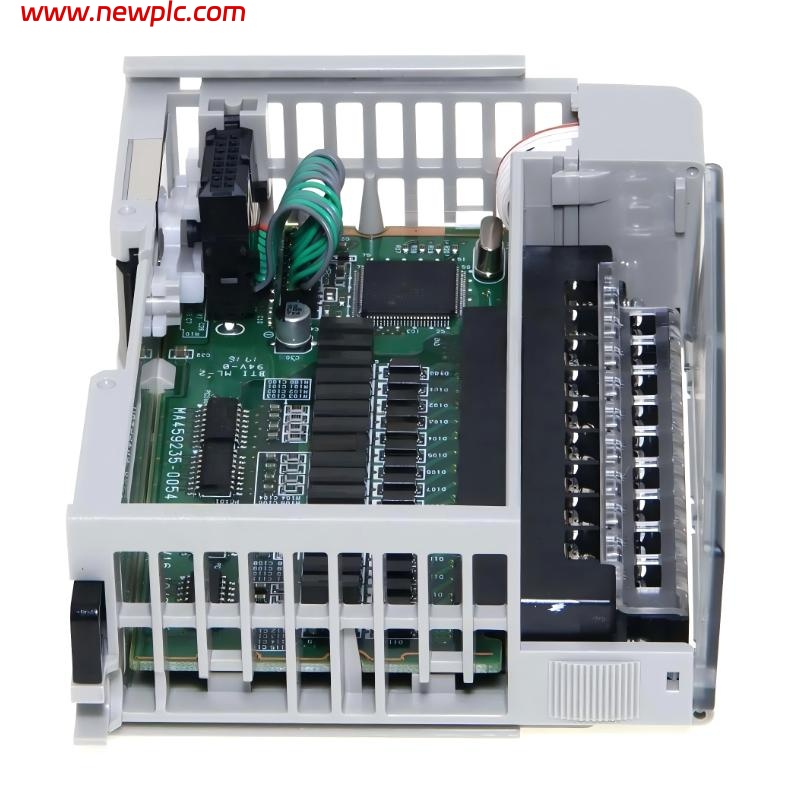

| Product Name | Allen-Bradley CompactLogix DC Output Module |
| Model Number | 1769-OV16 |
| Module Type | Digital DC output module (sinking output) |
| Output Channels | 16 outputs |
| Output Voltage Range | 20.4–26.4 VDC |
| Output Technology | Transistor (sinking outputs, low-side switching) |
| Load Type | DC loads (relays, solenoids, indicators) |
| Max Continuous Current | 0.5 A per point (up to 1.0 A @ lower temp) |
| Output Configuration | Current sinking (low true) |
| Backplane Current | Approx. 200 mA @ 5.1 VDC |
| Isolation Voltage | 1200 VAC for 1 s or 1697 VDC |
| Off-State Leakage Current | ≤ 0.5 mA |
| Mounting Type | DIN rail or panel mount |
| Slot Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 118 × 35 × 87 mm (approx.) |
| Weight | 0.27 kg (approx.) |
| Enclosure Type | Open-style module |
FAQ
FAQ
Q1. What is the 1769-OV16 used for?
It is used to control DC field devices such as relays, solenoids, and indicator lights using sinking outputs.
Q2. What type of output does this module provide?
It provides transistor-based sinking (low-side switching) DC outputs.
Q3. How many output channels does it have?
It offers 16 digital DC output channels.
Q4. What is the operating voltage range?
It operates within a 20.4–26.4 VDC range, typically used in 24V systems.
Q5. What is meant by “sinking output”?
Sinking output means the module switches the negative side of the circuit, requiring sourcing field devices.
Q6. What is the maximum current per output?
Each channel supports up to 0.5 A under normal operating conditions.
Q7. Does it include built-in protection?
Basic protection is included, but external protection (such as fuses or suppression devices) is recommended.
Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix 1500 systems.
