Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PLC-5 1771 I/O |

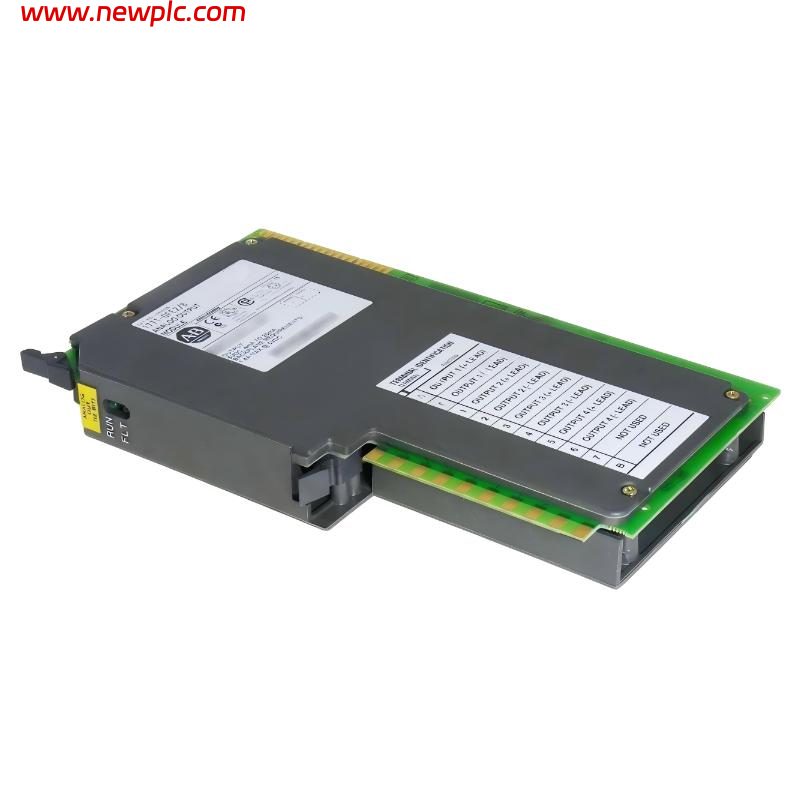

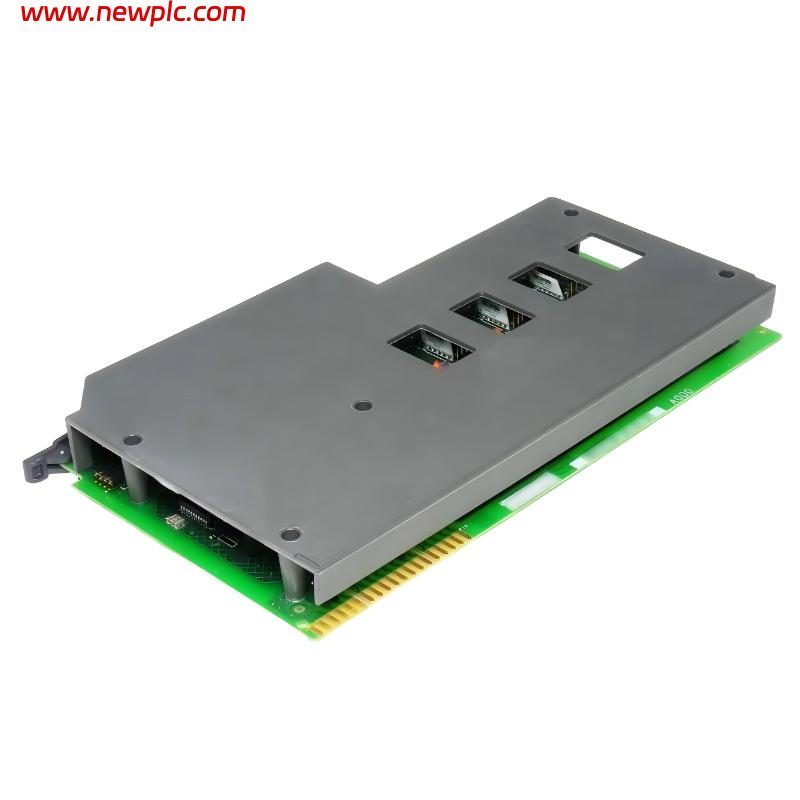

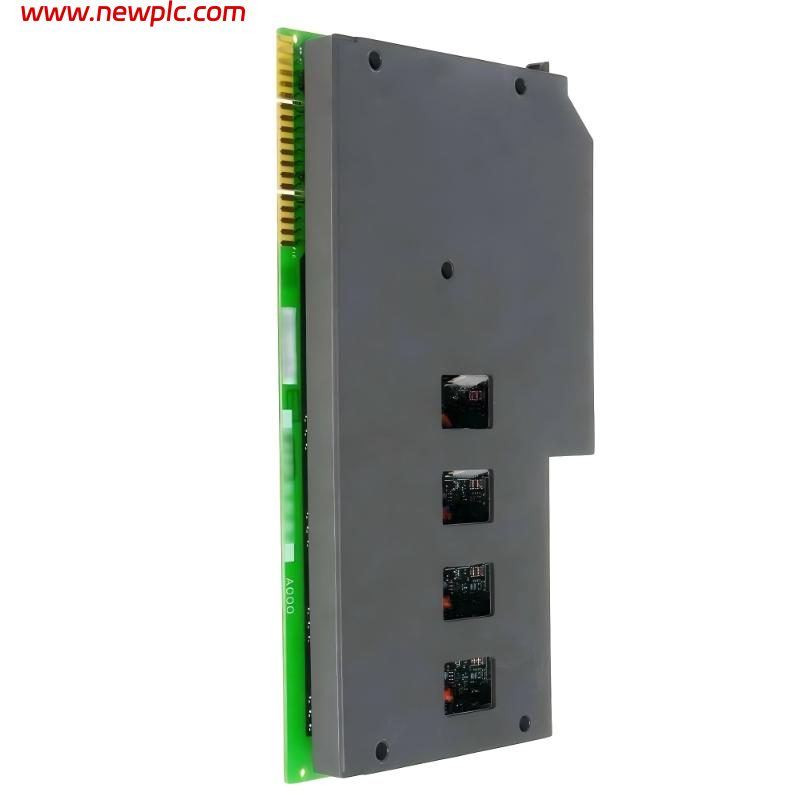

| Model Number | 1771-OFE2/B |
| Product Type | Analog Output Module |
| Output Channels | 2 Analog Outputs |
| Output Signal Types | Voltage and Current |
| Voltage Output Range | -10 to +10V DC |
| Current Output Range | 4 to 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% Full Scale |
| Converter Type | Digital-to-Analog Converter (DAC) |
| Update Time | Approx. 8 ms |
| Backplane Current Draw | Approx. 1.5 A at 5V DC |
| Power Dissipation | Approx. 7.5 W |
| Isolation Voltage | 500V DC |
| Compatible Chassis | 1771 PLC-5 I/O Chassis |
| Compatible Wiring Arm | 1771-WH |
| Addressing Modes | 1/2 Slot, 1 Slot, 2 Slot |
| Mounting Type | Rack Mount |
| Status Indicators | Module Active LED |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions | Approx. 26 x 15 x 5 cm |
| Weight | Approx. 0.45 – 0.68 kg |
| Certifications | UL, CE, CSA |
| Typical Applications | Process Control, Analog Signal Control, Industrial Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1771-OFE2/B used for?
A1: The 1771-OFE2/B is an analog output module used in PLC-5 systems for controlling industrial devices that require voltage or current analog signals.
Q2: How many output channels does the 1771-OFE2/B provide?
A2: The module includes 2 independent analog output channels.
Q3: What output signal ranges are supported by the 1771-OFE2/B?
A3: The module supports voltage outputs from -10 to +10V DC and current outputs from 4 to 20 mA.
Q4: Which PLC systems are compatible with the 1771-OFE2/B?
A4: The module is compatible with Allen-Bradley PLC-5 systems using 1771 I/O chassis platforms.
Q5: What resolution does the 1771-OFE2/B provide?
A5: The module features 12-bit analog resolution for accurate process control and analog signal generation.
Q6: What wiring arm is required for the 1771-OFE2/B?
A6: The module uses the Allen-Bradley 1771-WH wiring arm for field wiring connections.
Q7: What mounting method does the 1771-OFE2/B use?
A7: The module is designed for rack mounting in Allen-Bradley 1771 PLC chassis systems.
Q8: What are the common applications of the 1771-OFE2/B?
A8: Common applications include process automation, variable speed drive control, valve positioning, temperature control systems, and industrial analog output control.
