Technical Specifications
| Parameter | Specification |
|---|---|

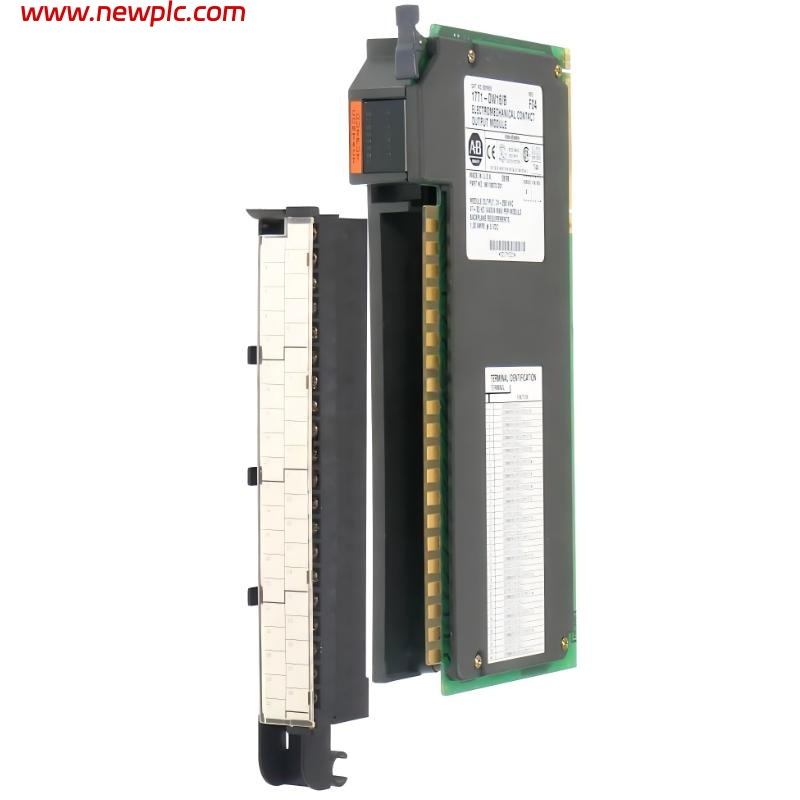

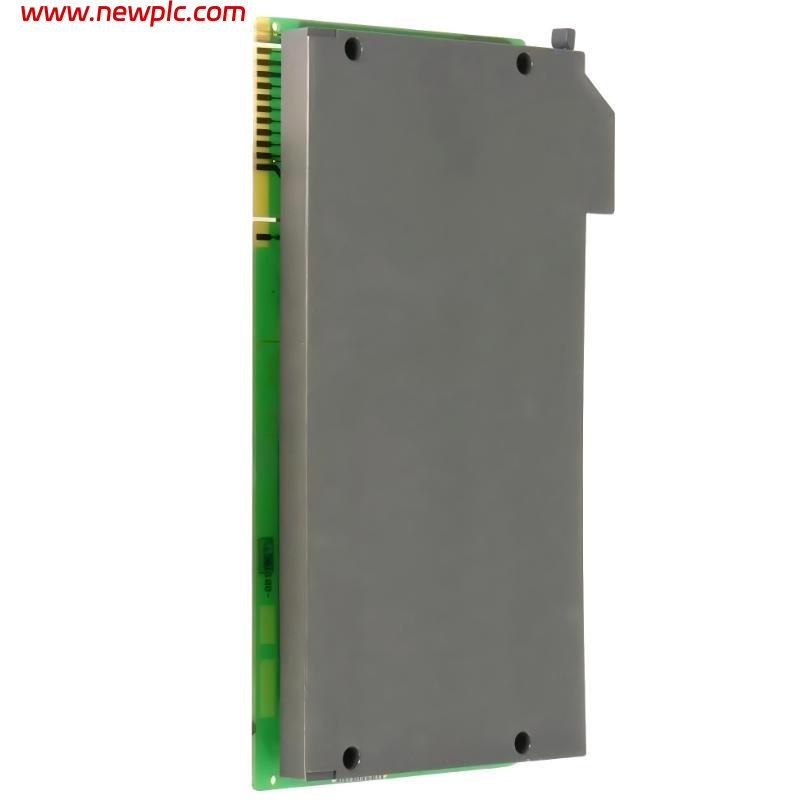

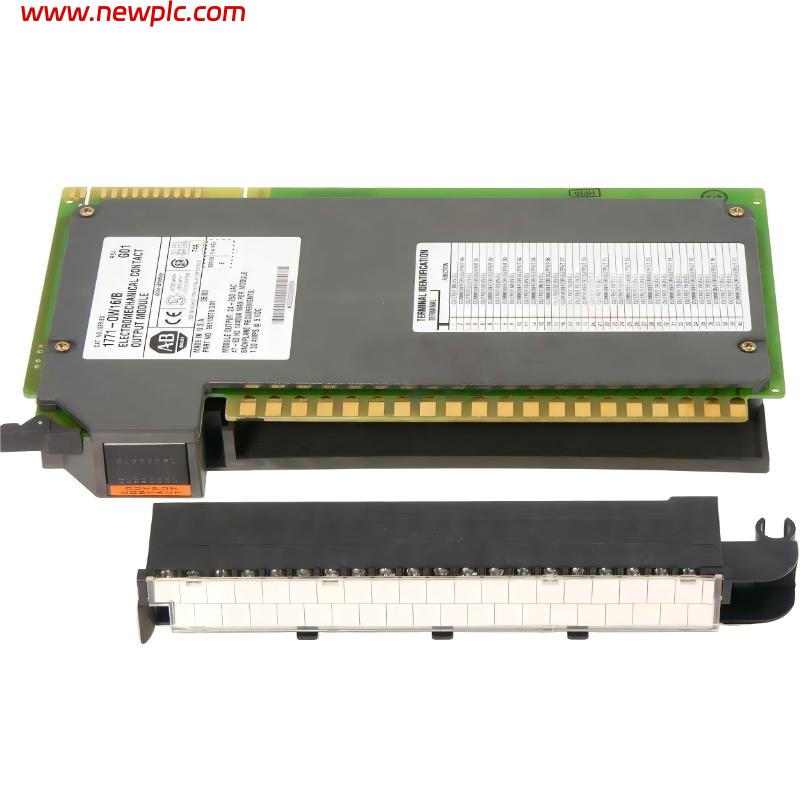

| Product Name | Allen-Bradley 1771-OW16 Relay Output Module |
| Product Type | PLC Relay Output Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 Series) |
| Number of Outputs | 16 Points |
| Output Type | Electromechanical Relay (Dry Contact) |
| Contact Rating | Up to 2 A per point |
| Switching Voltage | Up to 250 V AC / 30 V DC |
| Output Configuration | Individually isolated relay outputs |
| Mechanical Life | ~10 million operations (typical) |
| Electrical Life | Depends on load conditions |
| Turn-On Time | ~10 ms (typical) |
| Turn-Off Time | ~10 ms (typical) |
| Backplane Current | 350 mA @ 5 V DC |
| Power Dissipation | Up to 12 W |
| Wiring Arm | 1771-WD |
| Mounting Type | Installed in 1771 I/O chassis |
| Operating Temperature | 0°C to 60°C |
| Dimensions (L × W × H) | 152 mm × 102 mm × 279 mm |
| Weight | 1.0 kg (approx. 2.2 lbs) |
| Lifecycle Status | Discontinued (legacy PLC-5 system) |
FAQ
FAQ
Q1. What is the 1771-OW16 used for?
It is used to switch external AC or DC loads using relay contacts in PLC-5 systems.
Q2. How many outputs does it provide?
It provides 16 relay output channels.
Q3. What type of output does it use?
It uses electromechanical dry contact relays.
Q4. What voltage can it switch?
It can switch up to 250 V AC or 30 V DC.
Q5. What is the current rating per output?
Up to 2 A per output point.
Q6. What is the switching speed?
Approximately 10 ms for both ON and OFF operations.
Q7. What are the physical dimensions?
Approximately 152 mm × 102 mm × 279 mm.
Q8. What is the weight of the module?
Approximately 1.0 kg (about 2.2 lbs).
