Technical Specifications
| Parameter | Specification |
|---|---|

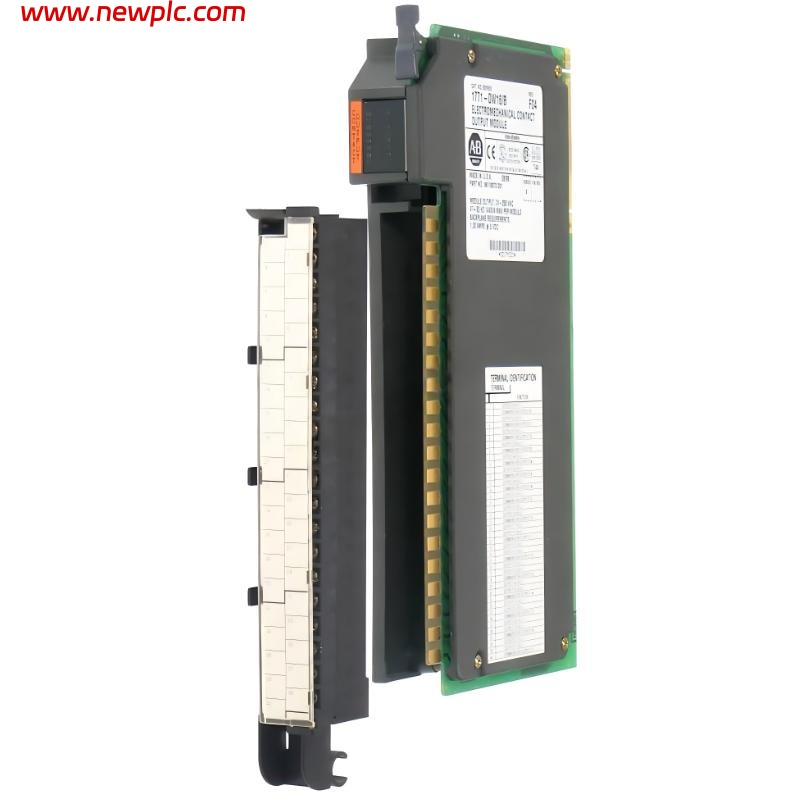

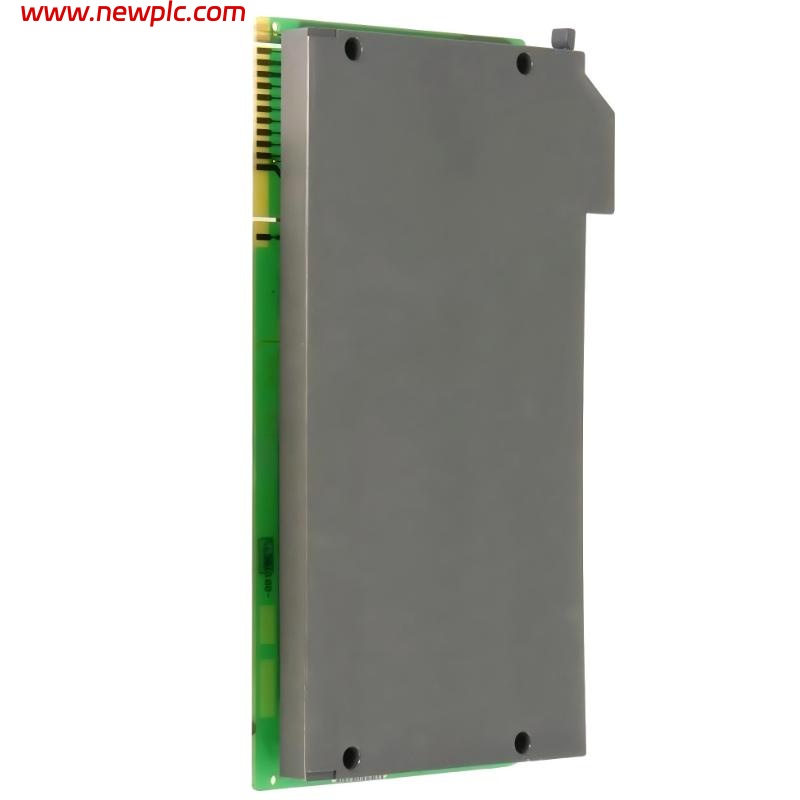

| Product Name | Allen-Bradley 1771-OWNA Relay Output Module |
| Product Type | PLC Relay Output Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 Series) |
| Number of Outputs | 32 Points |
| Output Type | Electromechanical Relay (Dry Contact) |
| Contact Rating | Up to 1.0 A per point |
| Switching Voltage | Up to 125 V AC / 30 V DC |
| Output Configuration | High-density grouped relay outputs |
| Mechanical Life | ~10 million operations (typical) |
| Electrical Life | Depends on load conditions |
| Turn-On Time | ~10 ms (typical) |
| Turn-Off Time | ~10 ms (typical) |
| Backplane Current | 400 mA @ 5 V DC |
| Power Dissipation | Up to 14 W |
| Wiring Arm | 1771-WN |
| Mounting Type | Installed in 1771 I/O chassis |
| Operating Temperature | 0°C to 60°C |
| Dimensions (L × W × H) | 178 mm × 51 mm × 279 mm |
| Weight | 0.9 kg (approx. 2.0 lbs) |
| Lifecycle Status | Discontinued (legacy PLC-5 system) |
FAQ
FAQ
Q1. What is the 1771-OWNA used for?
It is used to control multiple AC or DC loads using relay outputs in PLC-5 systems.
Q2. How many output channels does it provide?
It provides 32 relay output points.
Q3. What type of output does it use?
It uses electromechanical dry contact relays.
Q4. What voltage can it switch?
It can switch up to 125 V AC or 30 V DC.
Q5. What is the maximum current per output?
Up to 1.0 A per output point.
Q6. What is the switching speed?
Approximately 10 ms for ON and OFF operations.
Q7. What are the physical dimensions?
Approximately 178 mm × 51 mm × 279 mm.
Q8. What is the weight of the module?
Approximately 0.9 kg (about 2.0 lbs).
