Technical Specifications
| Parameter | Specification |
|---|---|

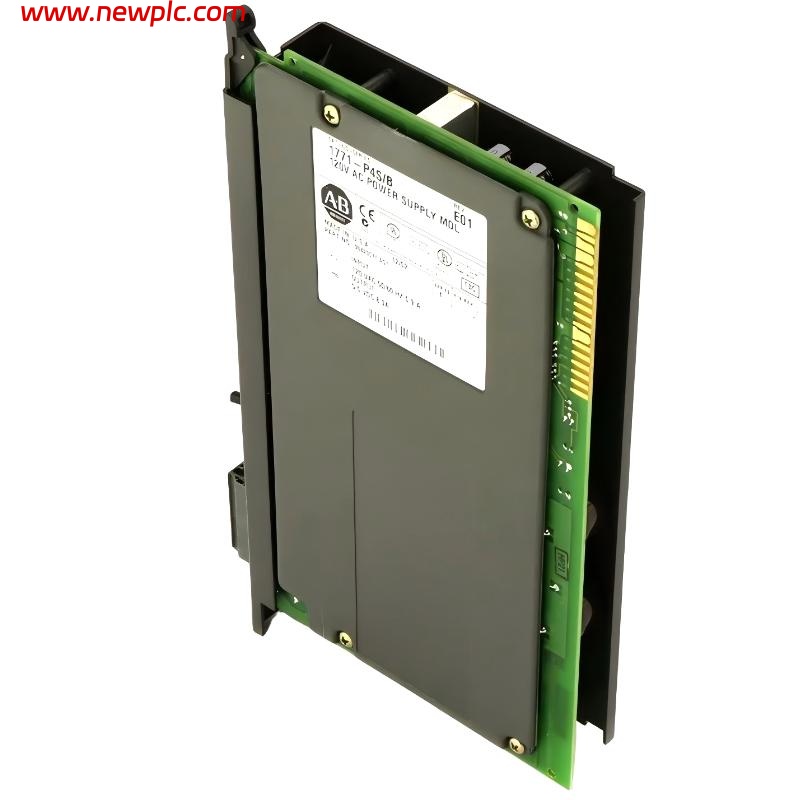

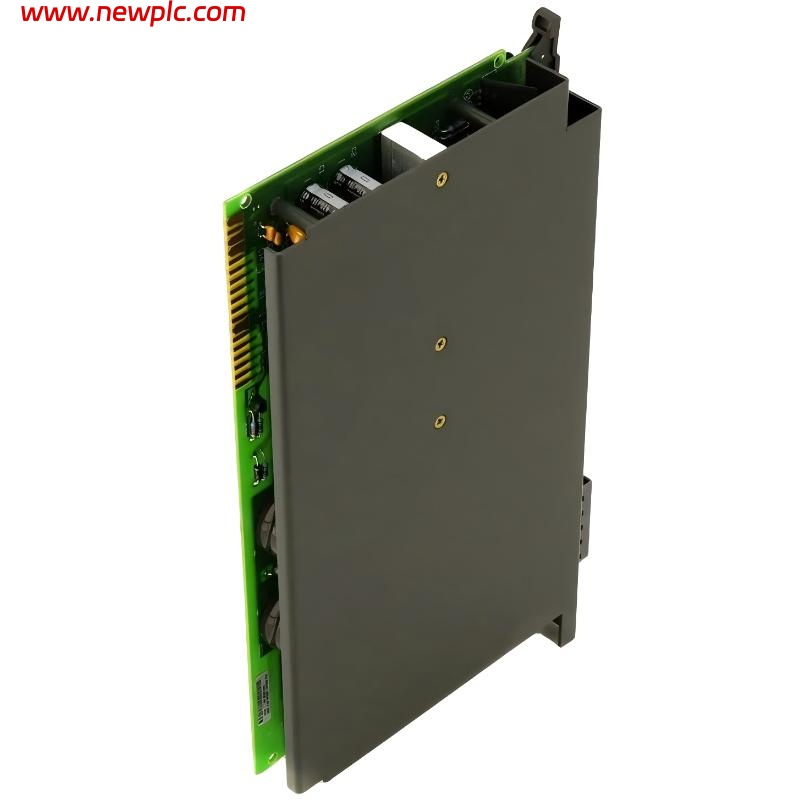

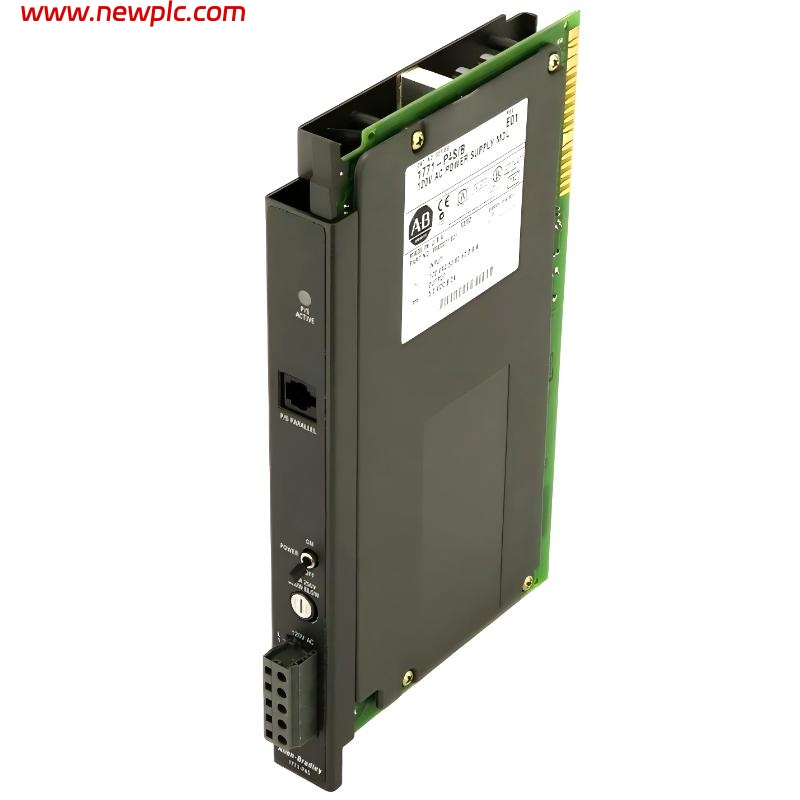

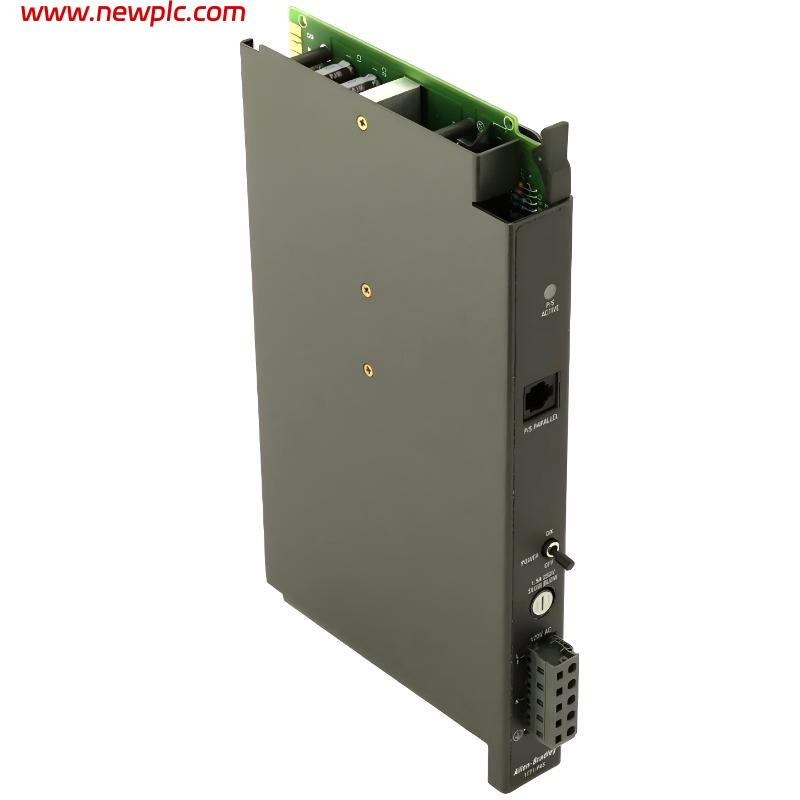

| Product Name | Allen-Bradley 1771-P4S Power Supply Module |
| Product Type | PLC Power Supply Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 Series) |
| Input Voltage | 97–132 V AC (nominal 120 V AC) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 5 V DC (backplane supply) |
| Output Current | Up to 8 A |
| Power Rating | Approx. 40 W |
| Fuse | 1.5 A, 250 V slow-blow (replaceable) |
| Slot Requirement | Single-slot module |
| Parallel Operation | Supports parallel connection (up to 16 A with two units) |
| Compatible Chassis | 1771-A1B, A2B, A3B, A4B |
| Backplane Function | Supplies power to all installed I/O modules |
| Operating Temperature | 0°C to 60°C |
| Dimensions (L × W × H) | 305 mm × 254 mm × 229 mm |
| Weight | 2.27 kg (approx. 5.0 lbs) |
| Lifecycle Status | Discontinued (since March 31, 2021) |
FAQ
FAQ
Q1. What is the 1771-P4S used for?
It supplies 5V DC power to the backplane of a PLC-5 1771 I/O chassis.
Q2. What is the output capacity?
It delivers up to 8 A at 5 V DC.
Q3. Can two power supplies be used together?
Yes, two units can be connected in parallel to increase output capacity.
Q4. What input voltage does it require?
It operates on 97–132 V AC, typically 120 V AC.
Q5. Which chassis is it compatible with?
It works with 1771-A1B, A2B, A3B, and A4B I/O chassis.
Q6. How many slots does it occupy?
It occupies one slot in the 1771 chassis.
Q7. What are the physical dimensions?
Approximately 305 mm × 254 mm × 229 mm.
Q8. What is the weight of the module?
Approximately 2.27 kg (about 5.0 lbs).
