Technical Specifications
| Parameter | Specification |
|---|---|

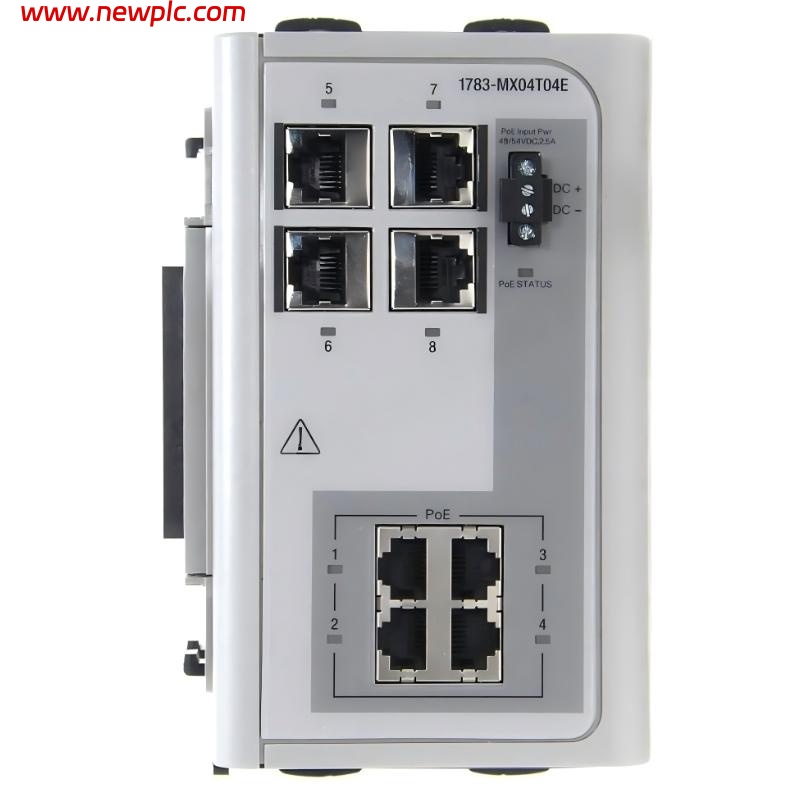

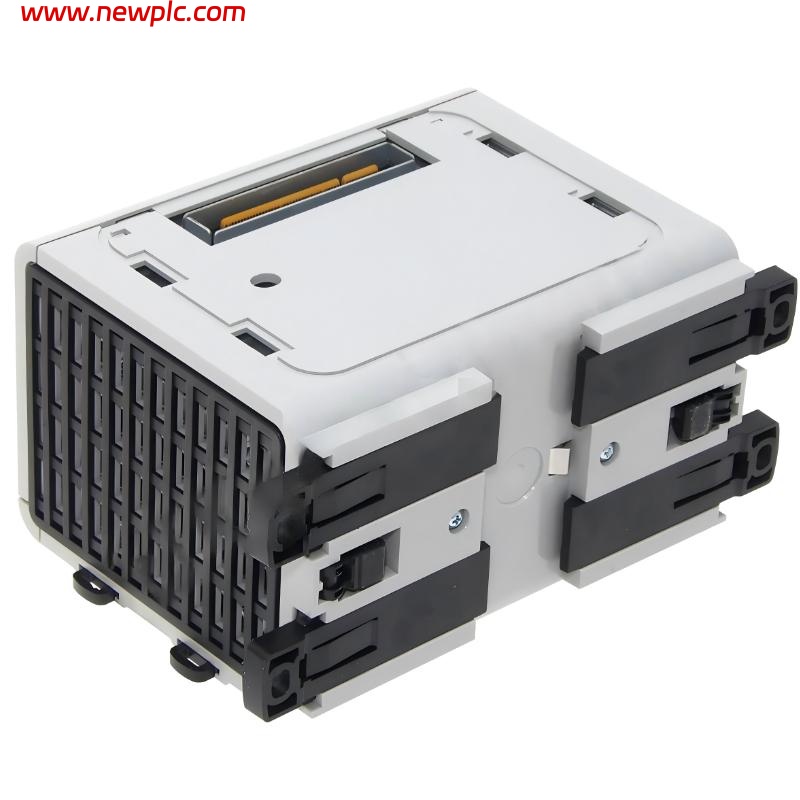

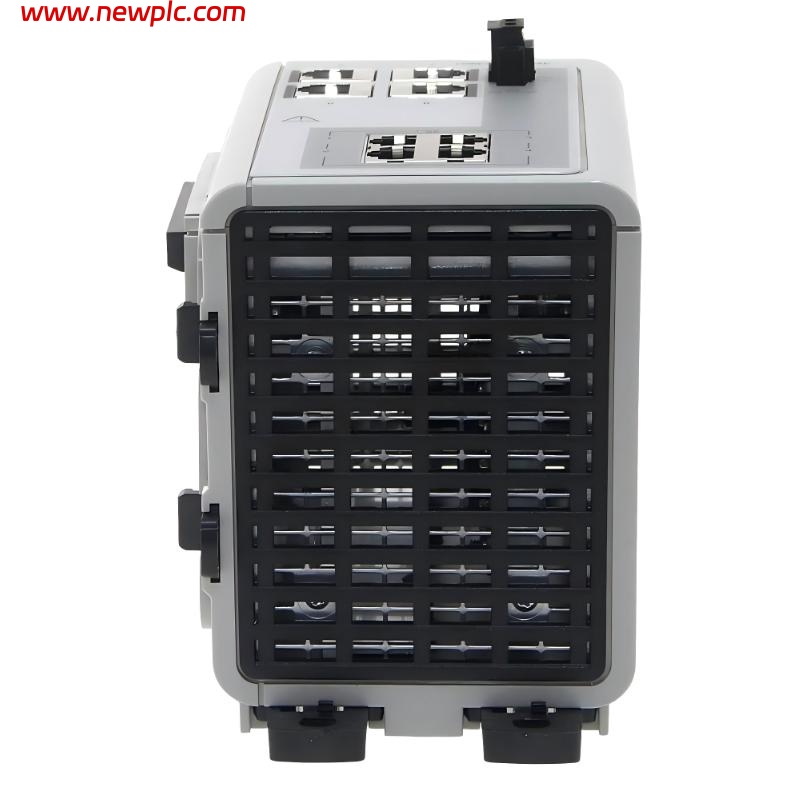

| Product Name | Allen-Bradley 1783-MX04T04E Stratix 8000 Expansion Module |
| Product Type | Industrial Ethernet Switch Expansion Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 8000 |
| Function | Adds copper Ethernet and PoE ports to Stratix 8000 switch chassis |
| Port Configuration | 4 × 10/100 Mbps RJ45 + 4 × 10/100 Mbps PoE ports |
| Total Ports | 8 ports (4 standard + 4 PoE) |
| Network Type | Industrial Ethernet / EtherNet/IP |
| PoE Capability | Yes (IEEE 802.3af Power over Ethernet) |
| Power Budget (PoE) | Up to ~62 W PoE output capability (module dependent) |
| Power Input | Supplied via Stratix 8000 backplane |
| Power Consumption | ~7–8 W typical |
| Backplane Interface | Stratix 8000 modular expansion slot |
| Mounting Type | Chassis-mounted (Stratix 8000 system) |
| Enclosure Rating | Industrial (open-style chassis system) |
| Operating Temperature | -40°C to +60°C |
| Dimensions (H × W × D) | 148 mm × 98 mm × 117 mm |
| Weight | ~1.2 kg |
| Lifecycle Status | Discontinued |
FAQ
FAQ
Q1. What is the 1783-MX04T04E used for?
It is used as an expansion module for Stratix 8000 switches, adding Ethernet and PoE ports for industrial network devices.
Q2. How many ports does it provide?
It provides 8 total ports: 4 standard Fast Ethernet ports and 4 PoE-enabled ports.
Q3. Does it support Power over Ethernet (PoE)?
Yes, it supports PoE on 4 ports for powering field devices like cameras or access points.
Q4. Is it a standalone switch?
No, it only works as an expansion module inside a Stratix 8000 switch chassis.
Q5. What is the operating temperature range?
It operates from -40°C to +60°C.
Q6. What is its power consumption?
Around 7–8 watts depending on load conditions.
Q7. What are its physical dimensions?
Approximately 148 mm × 98 mm × 117 mm.
Q8. What is the weight?
About 1.2 kg.
