Technical Specifications
| Parameter | Specification |
|---|---|

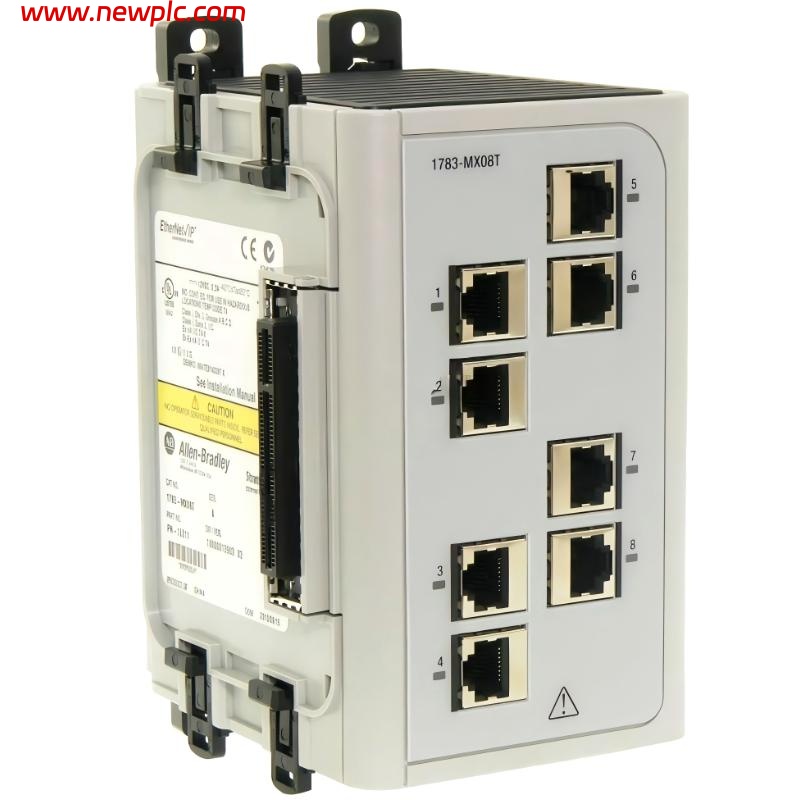

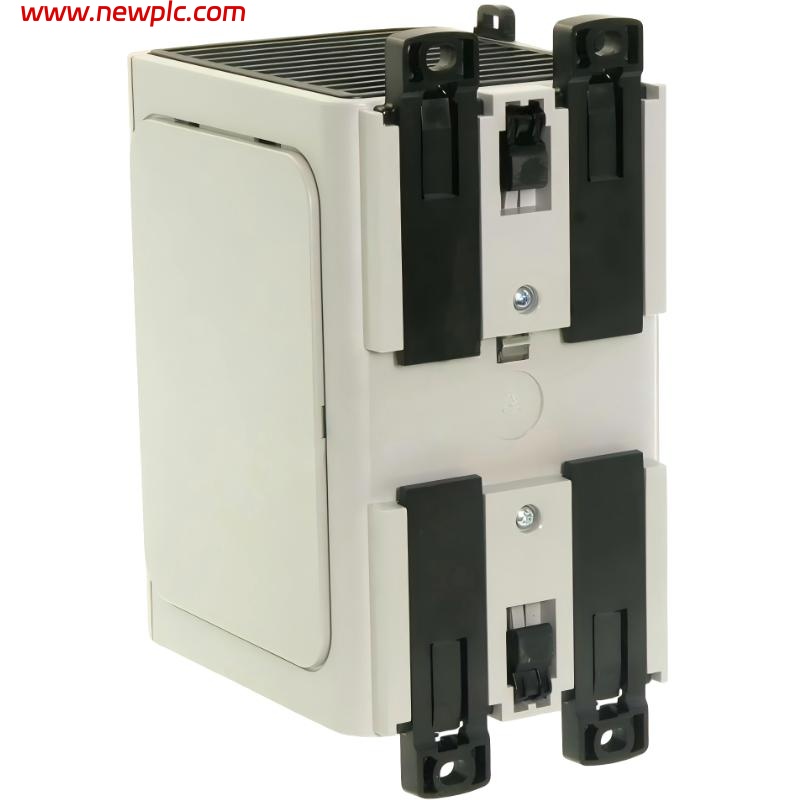

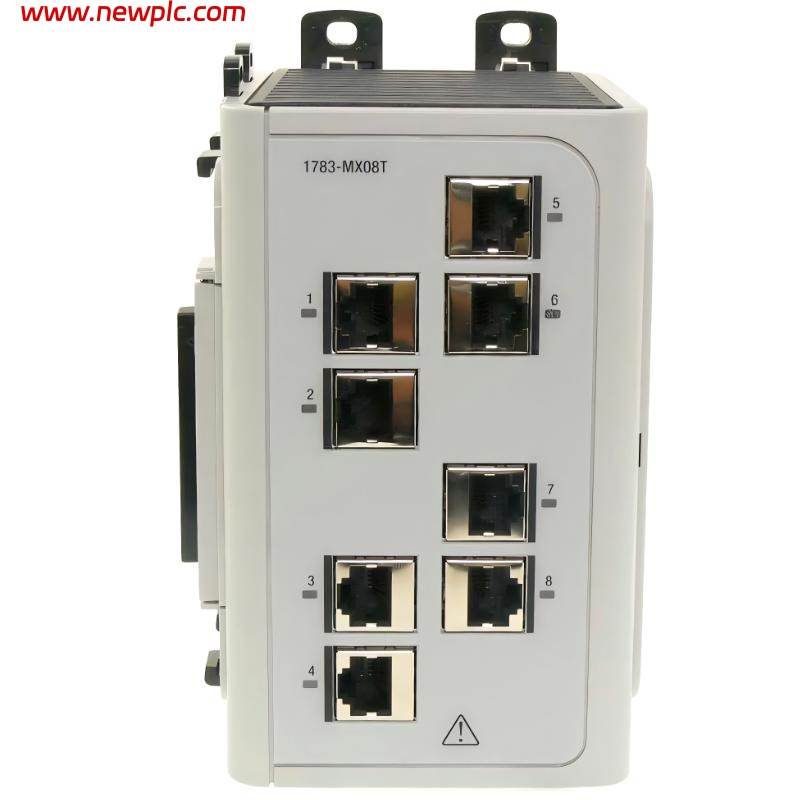

| Product Name | Allen-Bradley 1783-MX08T Stratix 8000 Copper 8-Port Expansion Module |
| Product Type | Industrial Ethernet Switch Expansion Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 8000 |
| Function | Adds 8 copper Ethernet ports to Stratix 8000 base switch |
| Port Type | 8 × 10/100 Mbps RJ45 Ethernet ports |
| Network Standard | IEEE 802.3 / EtherNet/IP compatible |
| Backplane Interface | Stratix 8000 modular backplane connection |
| Power Supply | Powered via switch backplane (3.3 V DC) |
| Power Consumption | Max ~2.8 W |
| Backplane Current | ~1.7 A @ 3.3 V DC |
| Isolation Voltage | 75 V continuous (expansion to network channels) |
| Mounting Type | Plug-in expansion module (Stratix 8000 chassis) |
| Enclosure Type | Open-style industrial module |
| Operating Temperature | -40°C to +60°C |
| Environmental Rating | Industrial (factory automation use) |
| Dimensions (H × W × D) | 98.1 mm × 148 mm × 117.5 mm |
| Weight | ~0.94 kg (approx. 2.06 lbs) |
FAQ
FAQ
Q1. What is the 1783-MX08T used for?
It is used to expand a Stratix 8000 switch by adding 8 additional copper Ethernet ports.
Q2. Can it operate as a standalone switch?
No, it only works as an expansion module and must be installed in a Stratix 8000 chassis.
Q3. What type of ports does it provide?
It provides 8 Fast Ethernet (10/100 Mbps) RJ45 copper ports.
Q4. Does it support Gigabit Ethernet?
No, it supports only 10/100 Mbps speeds.
Q5. What is the power consumption?
Approximately 2.8 W maximum.
Q6. What is the operating temperature range?
It operates from -40°C to +60°C in industrial environments.
Q7. What are the physical dimensions?
About 98.1 mm × 148 mm × 117.5 mm.
Q8. What is the weight?
Approximately 0.94 kg (about 2.06 lbs).
