Technical Specifications
| Parameter | Specification |
|---|---|

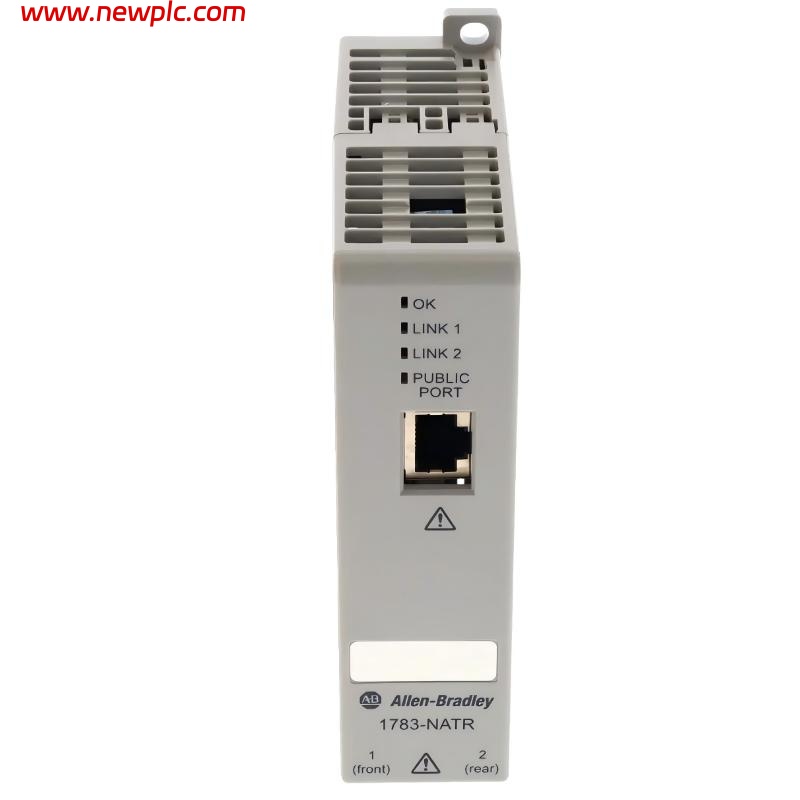

| Product Name | Allen-Bradley 1783-NATR NAT Device (Network Address Translation Router) |
| Product Type | Industrial NAT / Ethernet Router Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix / EtherNet/IP Networking |
| Function | Provides Network Address Translation between industrial and enterprise networks |
| Network Type | EtherNet/IP, TCP/IP |
| Ports | 2 × 10/100/1000 Mbps RJ45 Ethernet ports |
| Port Role | WAN / LAN segmentation (configurable) |
| Routing Feature | NAT (Network Address Translation), port forwarding |
| Firewall Functions | Basic traffic filtering and segmentation |
| Management | Web interface, SNMP, Studio 5000 integration |
| VLAN Support | Yes (802.1Q tagging supported) |
| Power Supply | 24 V DC (external input) |
| Power Consumption | ~5–7 W typical |

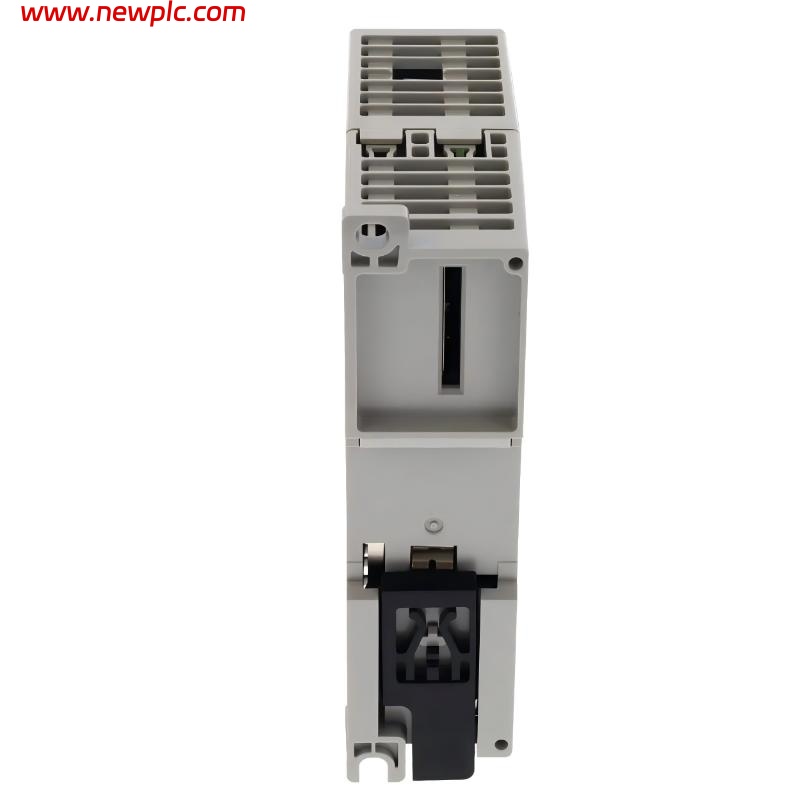

| Mounting Type | DIN rail |
| Enclosure Rating | IP30 industrial enclosure |
| Operating Temperature | -25°C to +60°C |
| Configuration Storage | Internal flash memory |
| Dimensions (H × W × D) | 114 mm × 45 mm × 99 mm |
| Weight | ~0.3 kg (approx. 0.66 lbs) |
| Lifecycle Status | Active (widely used in Rockwell industrial networks) |
FAQ
FAQ
Q1. What is the 1783-NATR used for?
It is used to connect two different IP networks by performing Network Address Translation in industrial automation systems.
Q2. How many ports does it have?
It has 2 Gigabit Ethernet RJ45 ports.
Q3. What is its main function?
Its main function is to isolate and connect control networks with enterprise networks while preserving IP structure.
Q4. Does it support routing or only NAT?
It primarily supports NAT and basic routing functions for industrial segmentation.
Q5. Can it be used with EtherNet/IP devices?
Yes, it is designed for EtherNet/IP industrial communication environments.
Q6. What is the power requirement?
It requires a 24 V DC power supply.
Q7. What are its physical dimensions?
Approximately 114 mm × 45 mm × 99 mm.
Q8. What is the weight of the device?
Approximately 0.3 kg (about 0.66 lbs).
