Technical Specifications
| Parameter | Description |
|---|---|

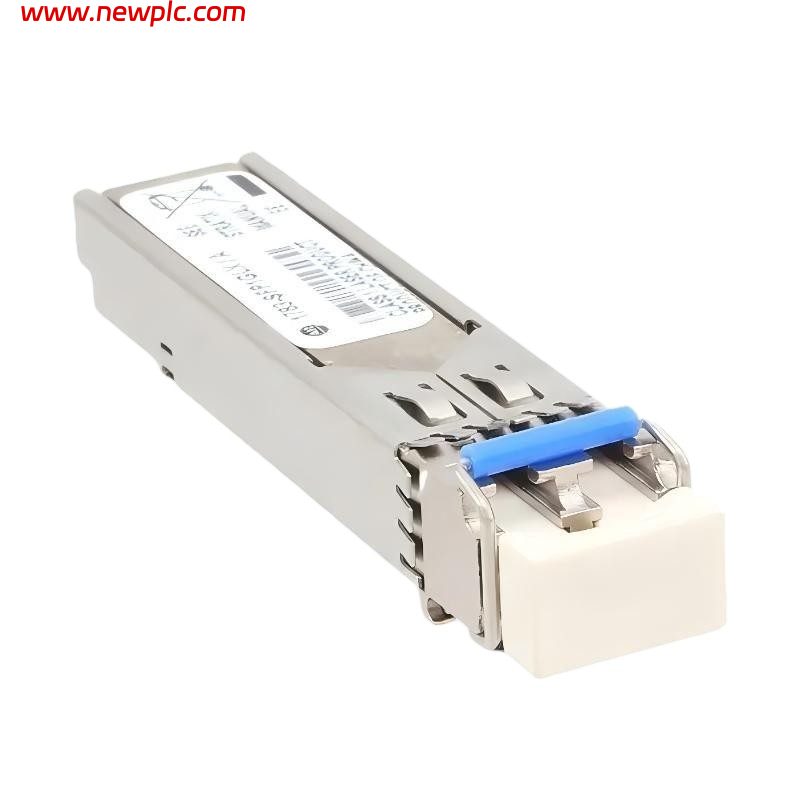

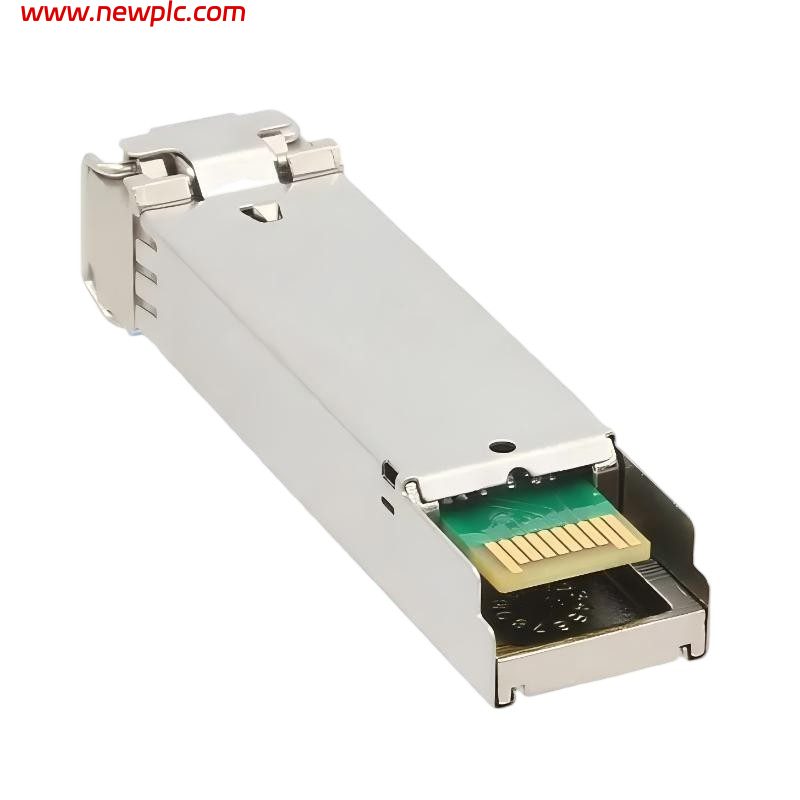

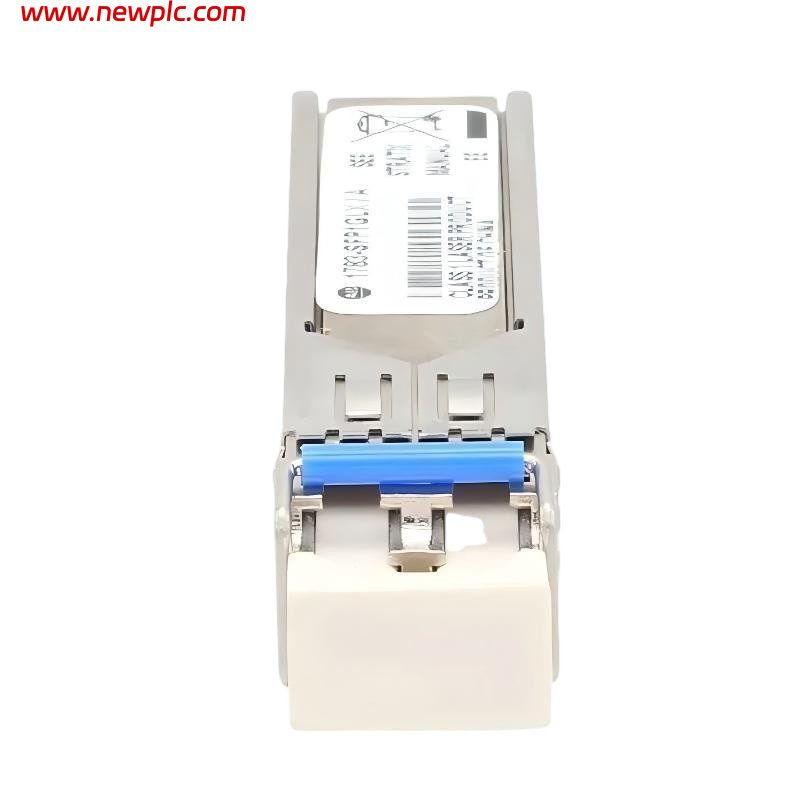

| Product Model | Allen-Bradley 1783-SFP1GLX |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | Stratix® Ethernet Accessories |
| Product Type | Gigabit SFP Fiber Transceiver Module |
| Function | Provides Gigabit Ethernet connectivity over single-mode fiber for Stratix managed and unmanaged industrial Ethernet switches |
| Application | Industrial Ethernet, EtherNet/IP networks, factory automation, process control, and long-distance fiber communication |
| Ethernet Standard | 1000BASE-LX/LH |
| Data Rate | 1000 Mbps (1 Gbps) |
| Fiber Type | Single-mode fiber (SMF) |
| Maximum Transmission Distance | 10 km |
| Optical Wavelength | 1310 nm |
| Fiber Connector | Duplex LC |
| Interface Type | Hot-pluggable SFP (Small Form-factor Pluggable) |
| Digital Optical Monitoring (DOM) | Supported |
| Network Compatibility | Gigabit Ethernet |
| Operating Voltage | 3.3 VDC (supplied by host switch) |
| Mounting Method | Installed in compatible SFP slot |
| Compatible Products | Stratix 5400, Stratix 5700, Stratix 8000, Stratix 8300, and other compatible Rockwell Automation switches |
| Compliance | IEEE 802.3z 1000BASE-LX/LH, SFP MSA |
| Lifecycle Status | Active |
| Dimensions | 56.5 × 13.4 × 8.5 mm |
| Weight | Approx. 0.02 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-SFP1GLX used for?
A: The 1783-SFP1GLX is used to provide Gigabit fiber-optic communication for Stratix industrial Ethernet switches, enabling reliable long-distance network connections in industrial automation systems.
Q2: What type of fiber does the 1783-SFP1GLX support?
A: It is designed for single-mode fiber (SMF) and complies with the 1000BASE-LX/LH Gigabit Ethernet standard. It uses duplex LC connectors for fiber connections.
Q3: What is the maximum transmission distance of the 1783-SFP1GLX?
A: The module supports transmission distances of up to 10 km over compatible single-mode fiber cables, making it suitable for long-range industrial network installations.
Q4: Does the 1783-SFP1GLX support hot swapping?
A: Yes. The module is hot-pluggable, allowing installation or replacement without powering down the compatible switch, provided system maintenance procedures are followed.
Q5: Which devices are compatible with the 1783-SFP1GLX?
A: It is compatible with several Rockwell Automation Stratix switch families, including Stratix 5400, 5700, 8000, and 8300, as well as other compatible devices equipped with supported SFP slots.
Q6: What are the dimensions and weight of the 1783-SFP1GLX?
A: The module measures approximately 56.5 × 13.4 × 8.5 mm and weighs approximately 0.02 kg, making it a compact solution for industrial fiber networking.
Q7: Does the 1783-SFP1GLX support Digital Optical Monitoring (DOM)?
A: Yes. The module supports Digital Optical Monitoring (DOM), allowing users to monitor optical parameters such as transmit power, receive power, temperature, and voltage for improved network diagnostics.
Q8: What should be checked before installing the 1783-SFP1GLX?
A: Before installation, verify that the switch supports Gigabit SFP modules, confirm the use of single-mode fiber with LC connectors, inspect the fiber cable condition, clean the optical connectors, and ensure the transmission distance does not exceed 10 km.
