Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Allen-Bradley 1783-SFP1GSX |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | Stratix® Ethernet Accessories |

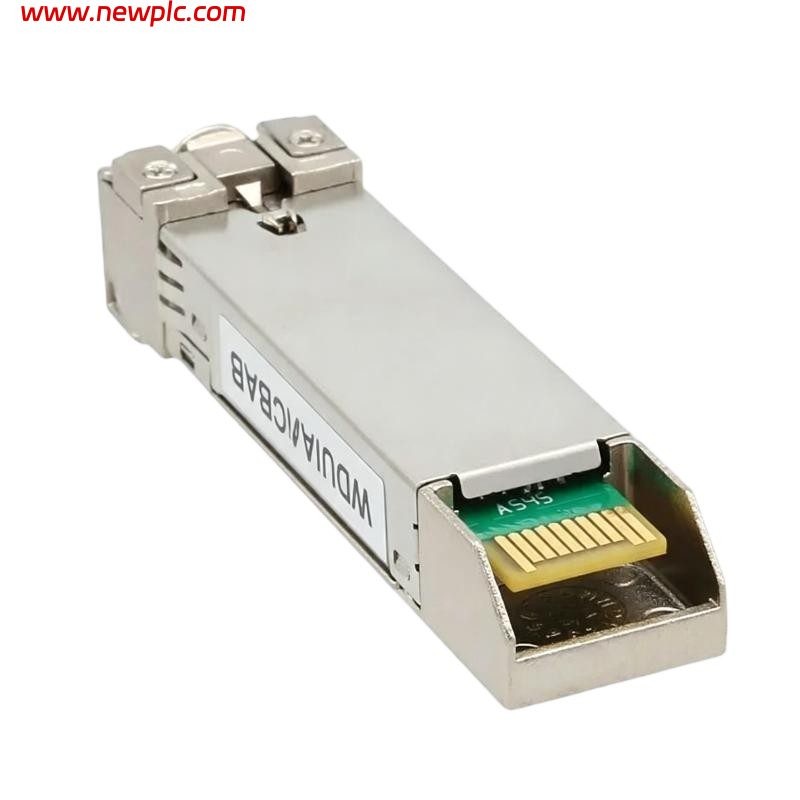

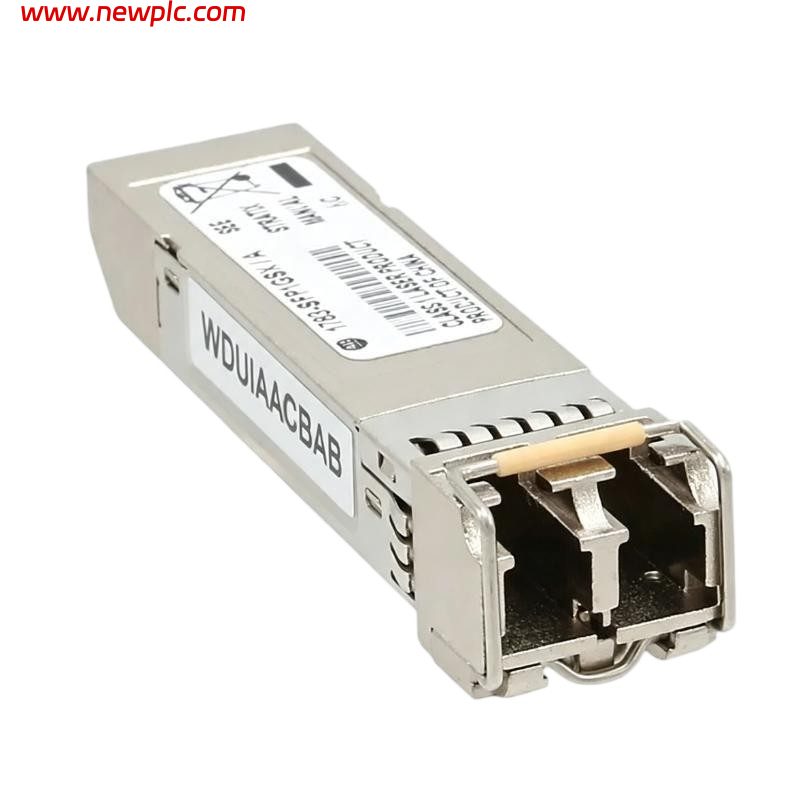

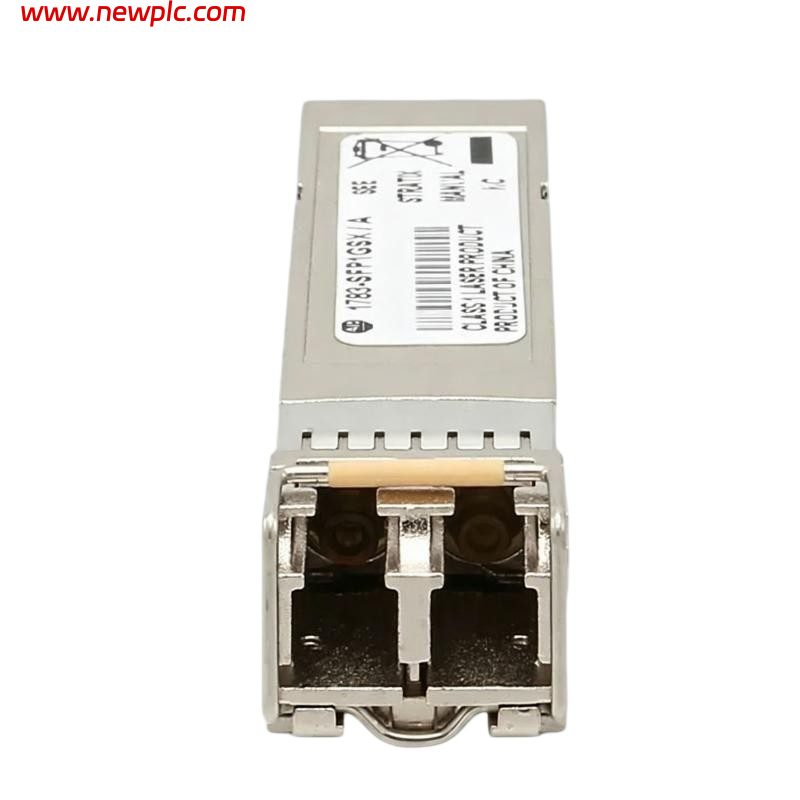

| Product Type | Gigabit SFP Fiber Transceiver Module |
| Function | Provides Gigabit Ethernet connectivity over multimode fiber for Stratix industrial Ethernet switches |
| Application | Industrial Ethernet, EtherNet/IP networks, factory automation, process control, and high-speed fiber communication |
| Ethernet Standard | IEEE 802.3z 1000BASE-SX |
| Data Rate | 1000 Mbps (1 Gbps) |
| Fiber Type | Multimode Fiber (MMF) |
| Maximum Transmission Distance | Up to 550 m (depending on fiber type and modal bandwidth) |
| Optical Wavelength | 850 nm |
| Fiber Connector | Duplex LC |
| Interface Type | Hot-pluggable SFP (Small Form-factor Pluggable) |
| Digital Optical Monitoring (DOM) | Supported |
| Network Compatibility | Gigabit Ethernet |
| Operating Voltage | 3.3 VDC (supplied by the host switch) |
| Compatible Products | Stratix 5400, Stratix 5700, Stratix 5200, Stratix 8000, Stratix 8300, and other compatible Stratix switches |
| Compliance | IEEE 802.3z, SFP Multi-Source Agreement (MSA) |
| Lifecycle Status | Active |
| Dimensions | 56.5 × 13.4 × 8.5 mm |
| Weight | Approx. 0.02 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-SFP1GSX used for?
A: The 1783-SFP1GSX is used to provide Gigabit fiber-optic communication for Stratix industrial Ethernet switches, enabling reliable, high-speed network connections between industrial devices over multimode fiber.
Q2: What type of fiber does the 1783-SFP1GSX support?
A: It is designed for multimode fiber (MMF) and complies with the 1000BASE-SX Gigabit Ethernet standard. It uses a duplex LC connector for optical connections.
Q3: What is the maximum transmission distance of the 1783-SFP1GSX?
A: The module supports transmission distances from 220 m to 550 m, depending on the multimode fiber core size and modal bandwidth. For example, it supports up to 550 m when used with 50/125 µm OM2 fiber (500 MHz/km).
Q4: Does the 1783-SFP1GSX support hot swapping?
A: Yes. The module is hot-pluggable, allowing installation or replacement while the host switch remains powered, provided appropriate maintenance procedures are followed.
Q5: Which devices are compatible with the 1783-SFP1GSX?
A: It is compatible with a range of Rockwell Automation Stratix switches, including Stratix 5200, 5400, 5700, 8000, and 8300 models equipped with supported Gigabit SFP slots.
Q6: What are the dimensions and weight of the 1783-SFP1GSX?
A: The module measures approximately 56.5 × 13.4 × 8.5 mm and weighs approximately 0.02 kg, making it compact and easy to install in industrial networking equipment.
Q7: Does the 1783-SFP1GSX support Digital Optical Monitoring (DOM)?
A: Yes. The module supports Digital Optical Monitoring (DOM), enabling real-time monitoring of optical parameters such as transmit power, receive power, module temperature, and supply voltage for proactive network maintenance.
Q8: What should be checked before installing the 1783-SFP1GSX?
A: Verify that the host switch supports Gigabit SFP modules, confirm the use of multimode fiber with duplex LC connectors, inspect and clean fiber connectors, ensure the cable length is within the supported distance, and verify that the optical specifications match the network design.
