Technical Specifications
| Parameter | Specification |
|---|---|

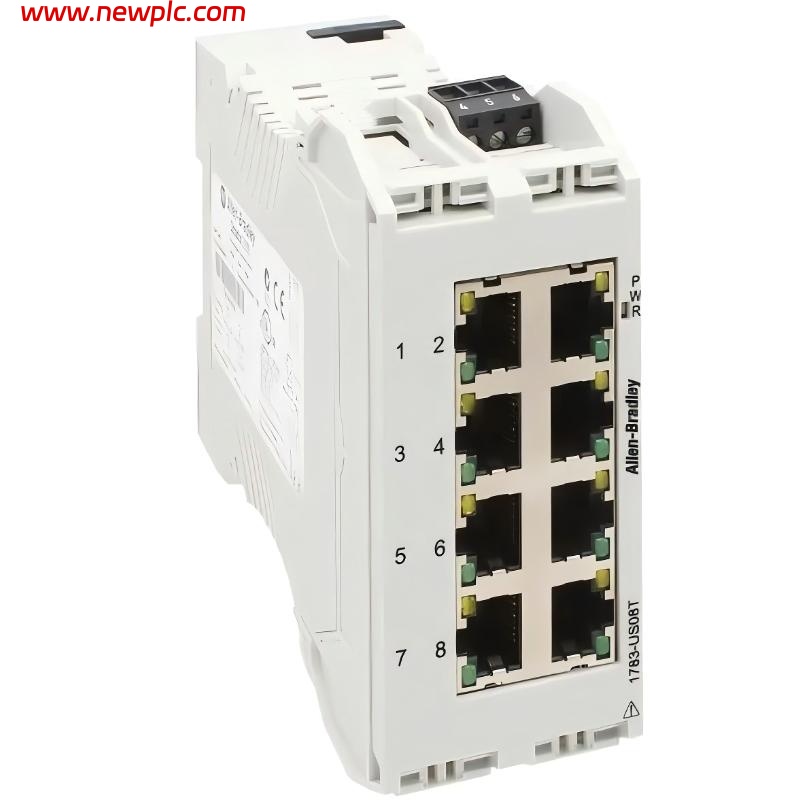

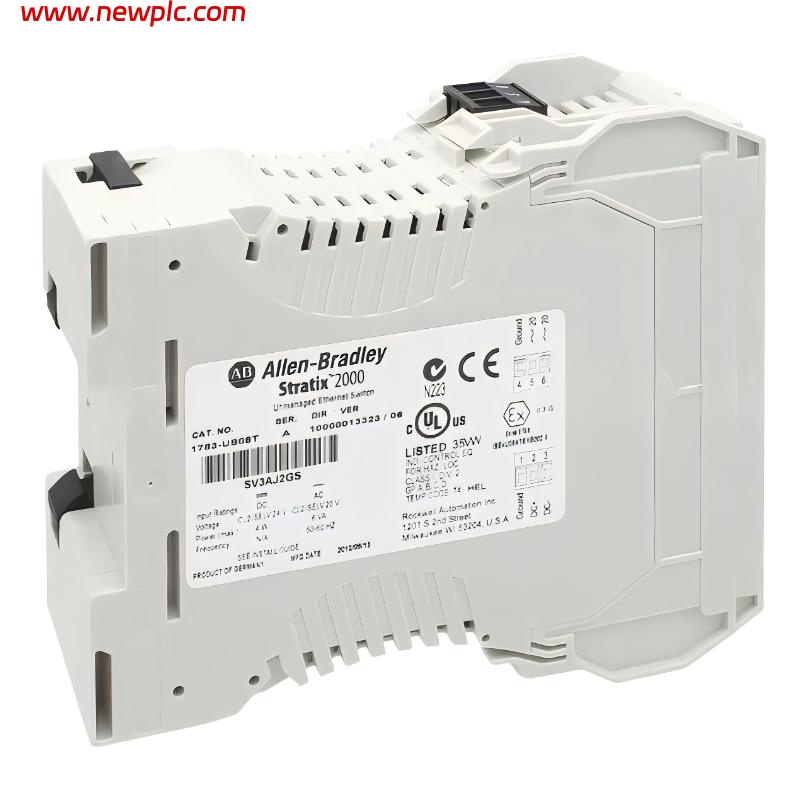

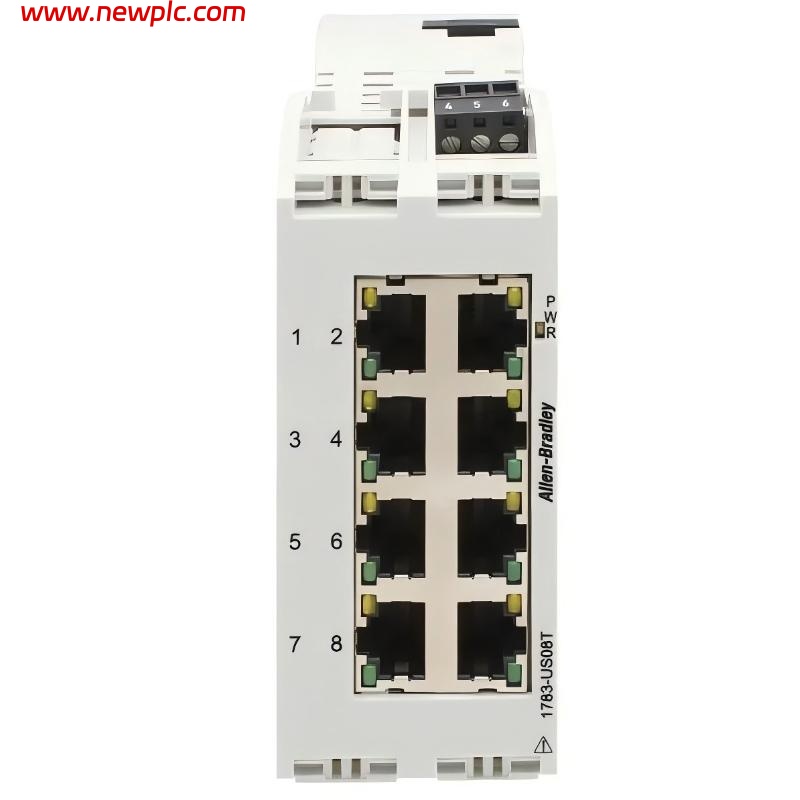

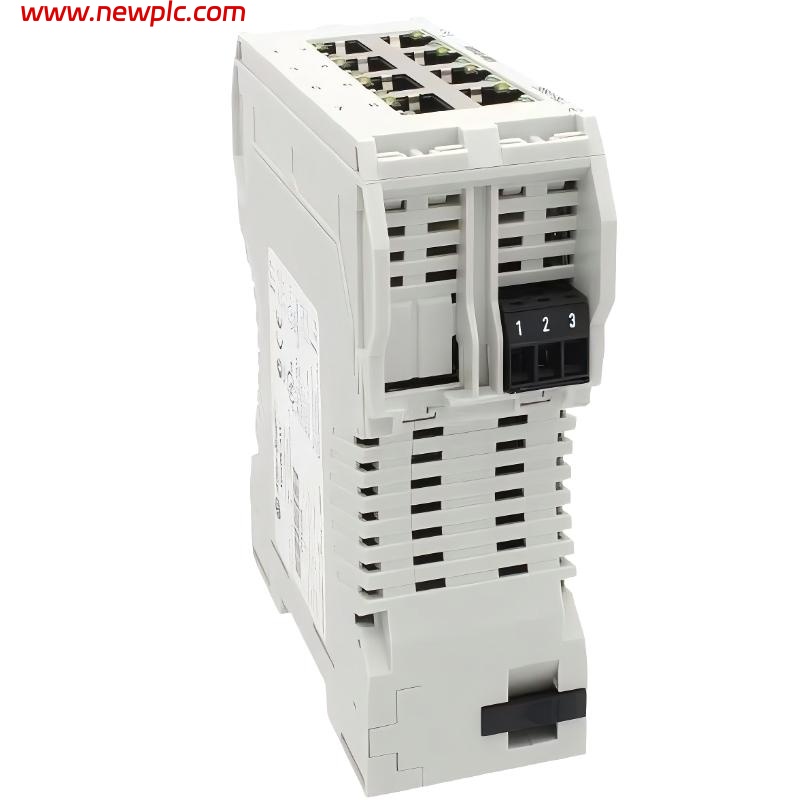

| Product Name | Allen-Bradley 1783-US08T Stratix 2000 Unmanaged Ethernet Switch |
| Product Type | Industrial Unmanaged Ethernet Switch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 2000 |
| Function | Provides basic Ethernet connectivity for industrial automation devices |
| Total Ports | 8 × 10/100 Mbps RJ45 |
| Port Type | Copper Ethernet (auto-negotiation, auto MDI/MDI-X) |
| Network Type | Industrial Ethernet / EtherNet/IP |
| Switch Type | Unmanaged (plug-and-play operation) |
| Input Voltage | 10–24 V AC / 10–35 V DC |
| Power Consumption | ~4 W max |
| Inrush Current | ~2.2 A max |
| MAC Address Table | Up to 8K addresses |
| Isolation Voltage | 30 V continuous |
| Mounting Type | DIN rail |
| Enclosure Rating | IP20 (open-type industrial) |
| Operating Temperature | 0°C to 60°C |
| Dimensions (L × W × H) | 127 mm × 45 mm × 110 mm |
| Weight | ~1.0 kg |
| Lifecycle Status | Discontinued (replacement: 1783-USP8T) |
FAQ
FAQ
Q1. What is the 1783-US08T used for?
It is used to provide simple, unmanaged Ethernet connectivity between PLCs, HMIs, drives, and other industrial devices.
Q2. How many ports does it have?
It has 8 Fast Ethernet (10/100 Mbps) RJ45 copper ports.
Q3. Is it a managed switch?
No, it is an unmanaged switch with plug-and-play operation and no configuration required.
Q4. Does it support fiber or SFP ports?
No, it only supports copper Ethernet ports and does not include SFP slots.
Q5. What is the power requirement?
It supports both AC (10–24 V) and DC (10–35 V) input power.
Q6. What is the operating temperature range?
It operates in industrial environments from 0°C to 60°C.
Q7. What are the physical dimensions?
Approximately 127 mm × 45 mm × 110 mm.
Q8. What is the weight?
Approximately 1.0 kg.
