Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Allen-Bradley 1783-US4T1F Stratix 2000 Unmanaged Ethernet Switch |
| Product Type | Industrial Unmanaged Ethernet Switch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 2000 |
| Function | Provides basic Ethernet connectivity for industrial devices |

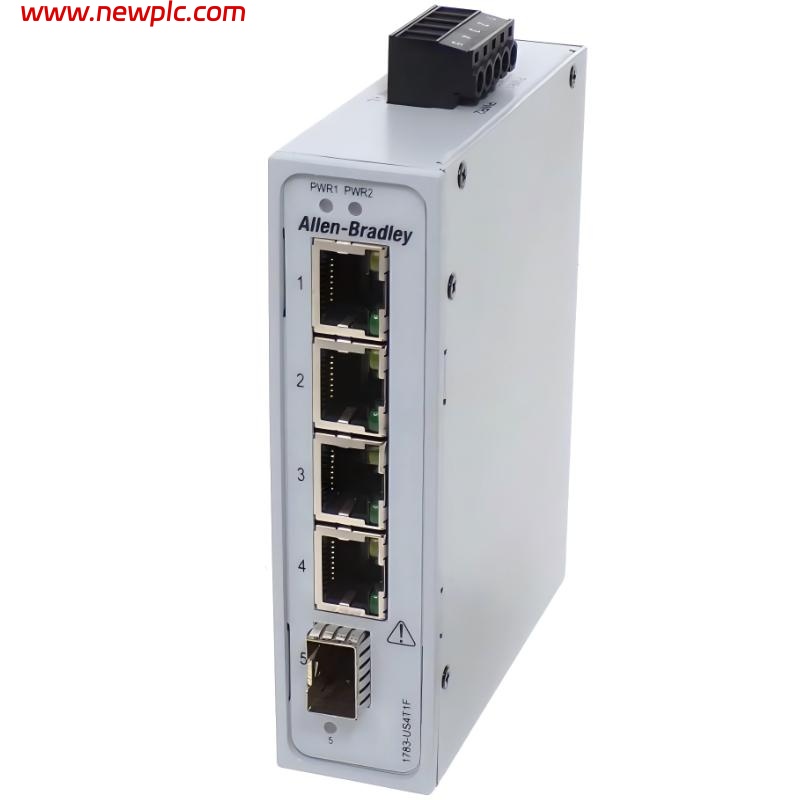

| Total Ports | 5 ports |
| Copper Ports | 4 × 10/100 Mbps RJ45 |
| Fiber Port | 1 × 100 Mbps Multimode fiber (SC/SFP depending on configuration) |
| Network Type | EtherNet/IP / Industrial Ethernet |
| Switch Type | Unmanaged (plug-and-play, no configuration required) |

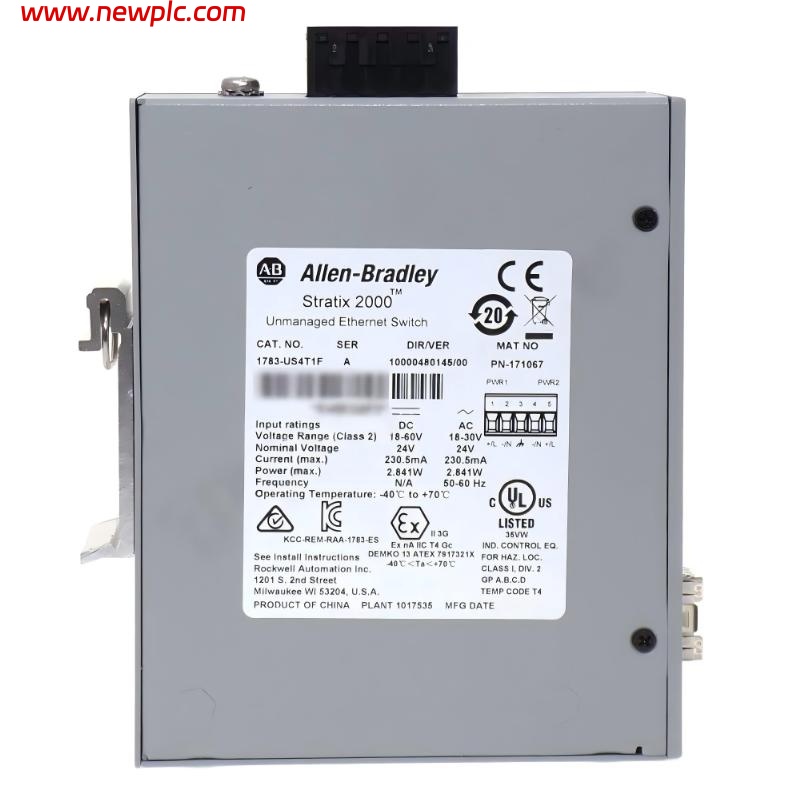

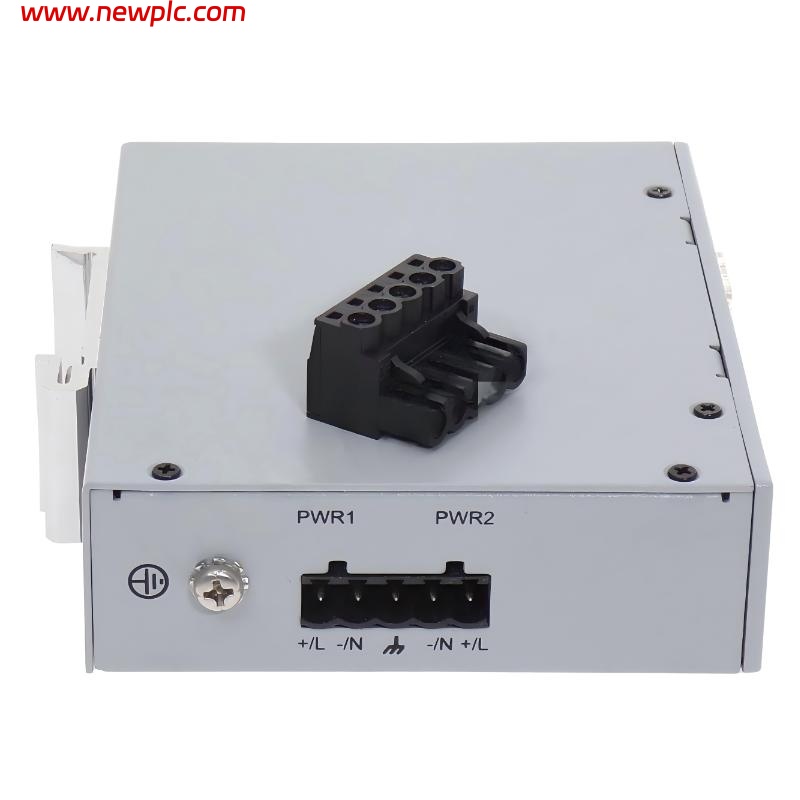

| Power Supply | 18–60 V DC / 18–30 V AC (typical industrial input range) |
| Power Consumption | ~2.8 W max |
| Inrush Current | ~2.2 A |
| Isolation Voltage | 30 V continuous |
| MAC Address Table | ~2K–8K entries (family dependent) |

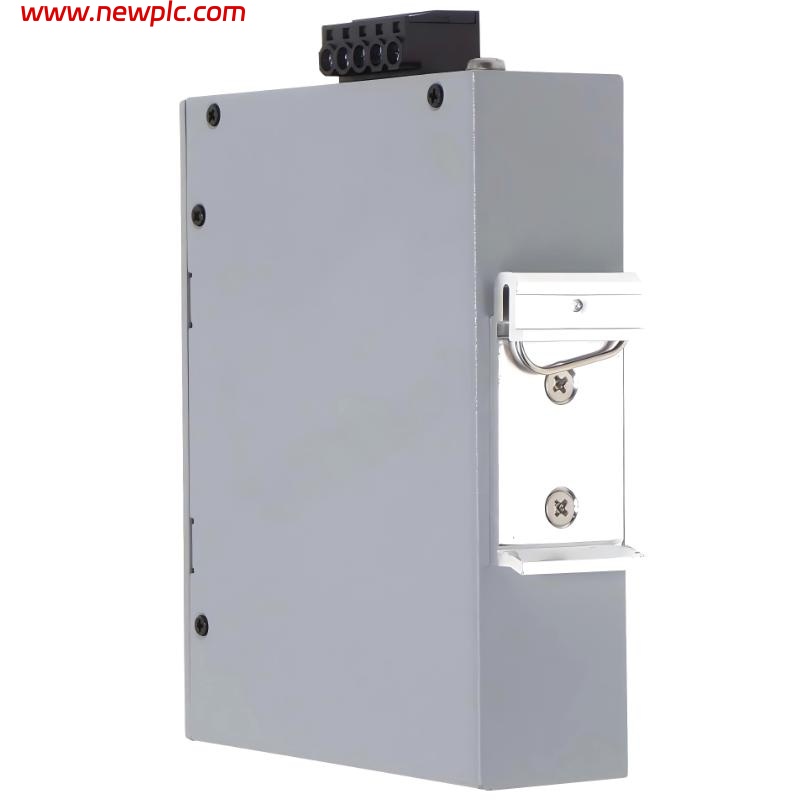

| Mounting Type | DIN rail |
| Enclosure Rating | IP20 |
| Operating Temperature | -40°C to +70°C |
| Dimensions (H × W × D) | 114.5 mm × 29.6 mm × 68 mm |
| Weight | ~0.5 kg |
| Lifecycle Status | Discontinued (Stratix 2000 family end-of-life) |
FAQ
FAQ
Q1. What is the 1783-US4T1F used for?
It is used to provide simple Ethernet connectivity in small industrial automation networks such as PLCs, HMIs, and drives.
Q2. How many ports does it have?
It has 5 total ports: 4 copper Fast Ethernet ports and 1 multimode fiber port.
Q3. Is it a managed switch?
No, it is an unmanaged plug-and-play industrial switch.
Q4. What type of fiber does it support?
It supports 100 Mbps multimode fiber connectivity.
Q5. What is the power requirement?
It operates on a wide industrial DC/AC input range (typically 18–60 V DC or 18–30 V AC).
Q6. What is its operating temperature range?
It operates from -40°C to +70°C.
Q7. What are its physical dimensions?
Approximately 114.5 × 29.6 × 68 mm.
Q8. What is its weight?
Approximately 0.5 kg.
