Technical Specifications
| Parameter | Specification |
|---|---|

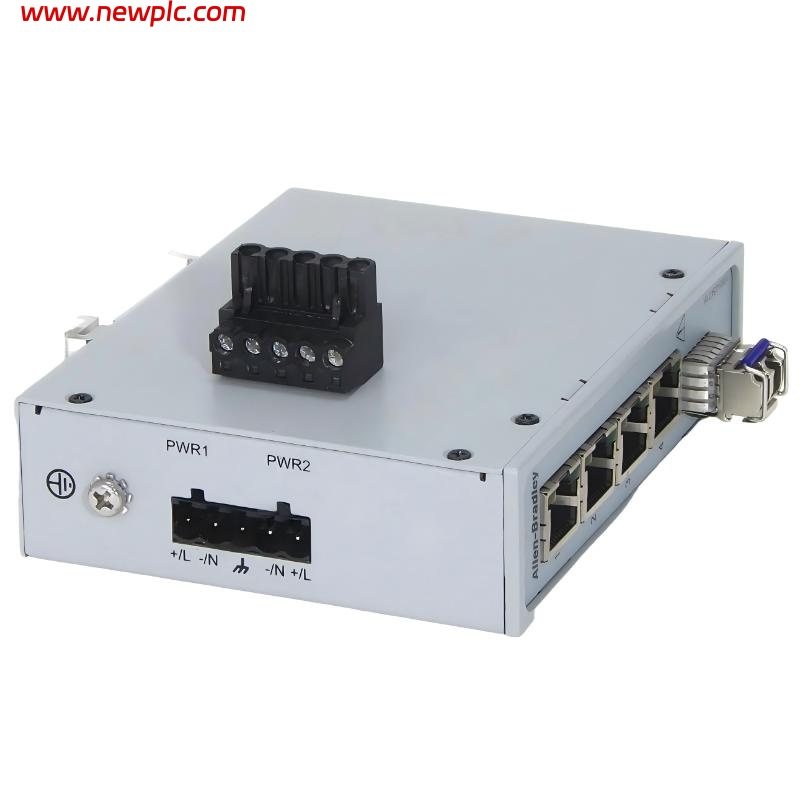

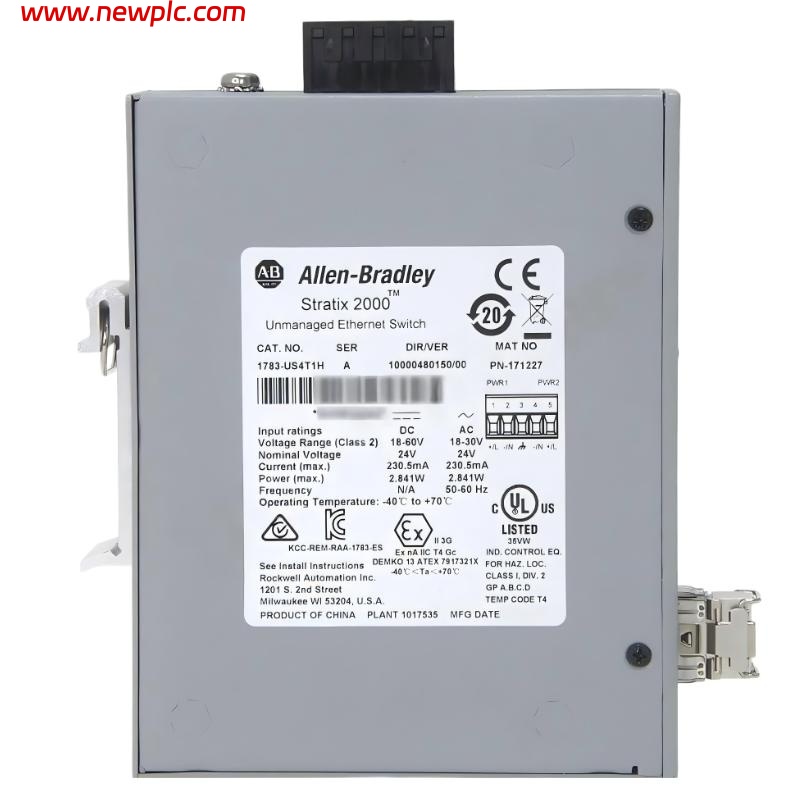

| Product Name | Allen-Bradley 1783-US4T1H Stratix 2000 Unmanaged Ethernet Switch |
| Product Type | Industrial Unmanaged Ethernet Switch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 2000 |
| Function | Provides basic Ethernet connectivity for small industrial control networks |

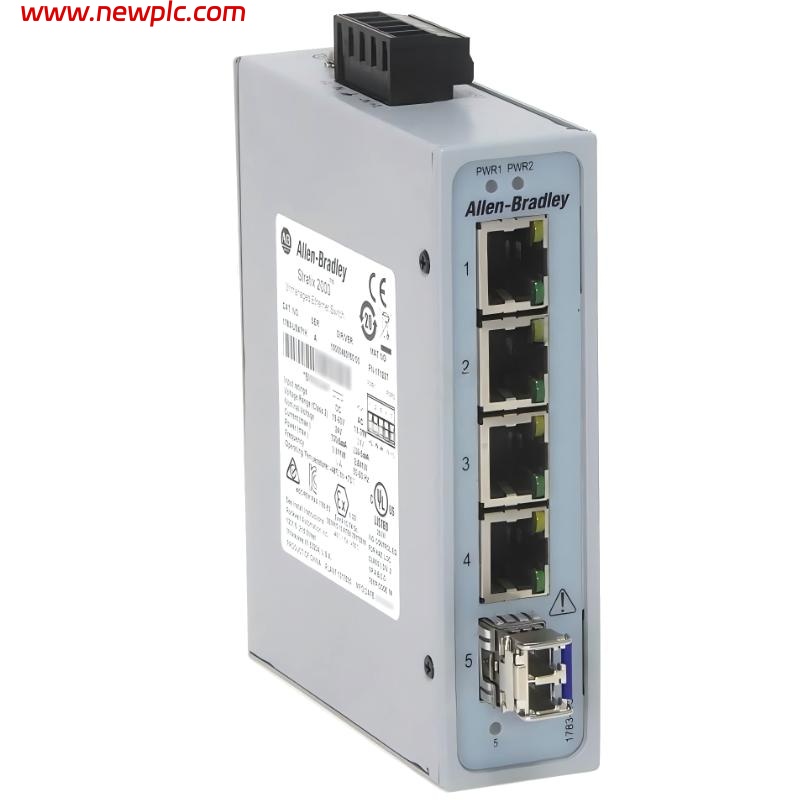

| Total Ports | 5 ports |
| Copper Ports | 4 × 10/100 Mbps RJ45 |
| Fiber Port | 1 × 100 Mbps single-mode fiber (preinstalled module) |
| Network Type | EtherNet/IP / Industrial Ethernet |
| Switch Type | Unmanaged (plug-and-play, no configuration required) |
| Power Supply | 12–48 V DC / 18–30 V AC (industrial input range) |
| Power Consumption | ~3.4 W max |
| Inrush Current | ~1.69 A |
| Isolation Voltage | 30 V continuous |
| MAC Address Table | Up to ~8K entries (family-dependent) |

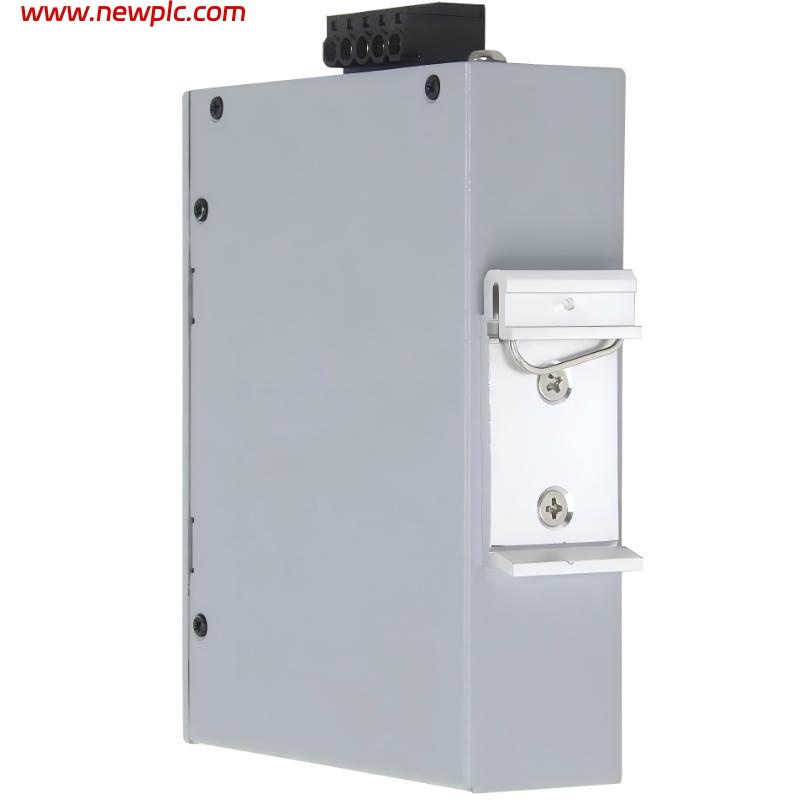

| Mounting Type | DIN rail |
| Enclosure Rating | IP20 |
| Operating Temperature | -40°C to +70°C |
| Dimensions (H × W × D) | 114.5 mm × 76.8 mm × 29.6 mm |
| Weight | ~1.36 kg (approx. 3.0 lbs) |
FAQ
FAQ
Q1. What is the 1783-US4T1H used for?
It is used to provide simple Ethernet connectivity in industrial automation systems, typically connecting PLCs, HMIs, and field devices.
Q2. How many ports does it have?
It has 5 ports: 4 Fast Ethernet RJ45 ports and 1 single-mode fiber port.
Q3. Is it a managed switch?
No, it is an unmanaged plug-and-play switch with no configuration required.
Q4. Does it support fiber communication?
Yes, it includes one preinstalled single-mode 100 Mbps fiber port.
Q5. What is the power requirement?
It operates on 12–48 V DC or 18–30 V AC industrial power input.
Q6. What is the operating temperature range?
It operates from -40°C to +70°C, suitable for harsh industrial environments.
Q7. What are its physical dimensions?
Approximately 114.5 mm × 76.8 mm × 29.6 mm.
Q8. What is the weight?
Approximately 1.36 kg (about 3.0 lbs).
