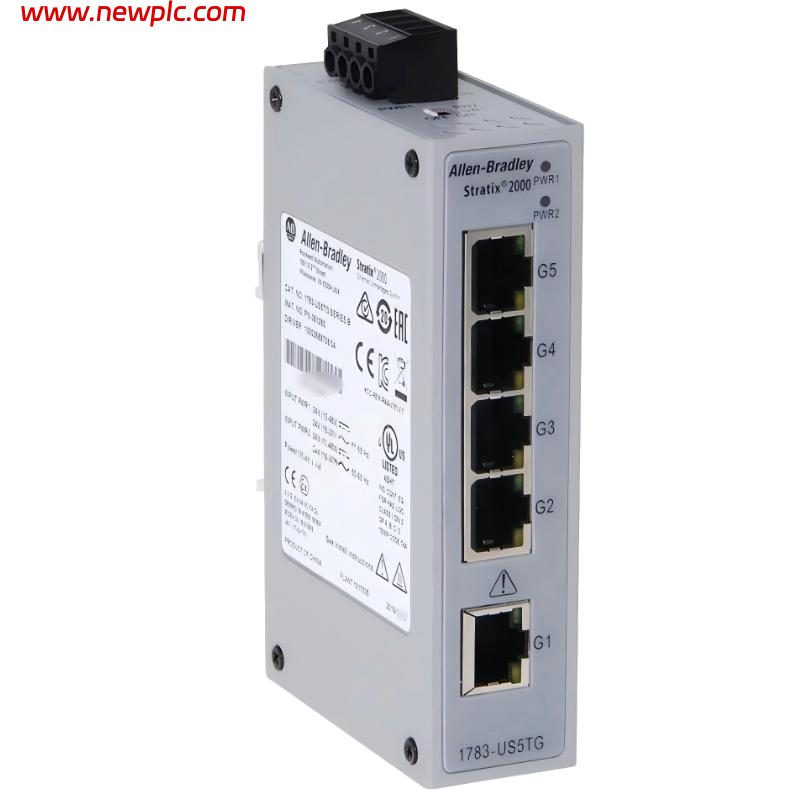

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Stratix 2000 |
| Model Number | 1783-US5TG/B |
| Product Type | Unmanaged Industrial Ethernet Switch |
| Total Ports | 5 Ports |
| Port Type | 5 x 10/100/1000 Mbps RJ45 Copper Ports |
| Communication Speed | 10/100/1000 Mbps Auto-Negotiation |
| Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Switching Method | Store-and-Forward |
| MAC Address Capacity | 8K MAC Addresses |
| Packet Buffer Memory | 1 Mb |
| Power Input Range | 12 to 48V DC / 18 to 30V AC |
| Nominal Input Voltage | 24V AC/DC |
| Redundant Power Inputs | Yes |
| Power Consumption | Approx. 4.5 W |
| Current Consumption | Approx. 250 mA @ 24V DC |
| Isolation Voltage | 50V Continuous |
| Alarm Relay Output | Yes |
| Network Cabling | CAT5e or Better |
| Mounting Type | DIN Rail Mount |
| Enclosure Material | Industrial Metal Housing |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | IEC 60068-2-27 |
| Vibration Resistance | IEC 60068-2-6 |
| Dimensions | Approx. 114.5 x 76.8 x 29.6 mm |
| Weight | Approx. 0.45 kg |
| Certifications | UL, CE, CSA, ATEX, IECEx, RoHS |
| Revision Series | Series B |
| Lifecycle Status | Discontinued |
| Replacement Model | 1783-USP5TG |
| Typical Applications | Industrial Ethernet Networking, PLC Communication, Factory Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-US5TG/B used for?
A1: The 1783-US5TG/B is an unmanaged industrial Ethernet switch designed for connecting PLCs, HMIs, drives, industrial PCs, and other Ethernet-enabled automation devices in industrial networks.

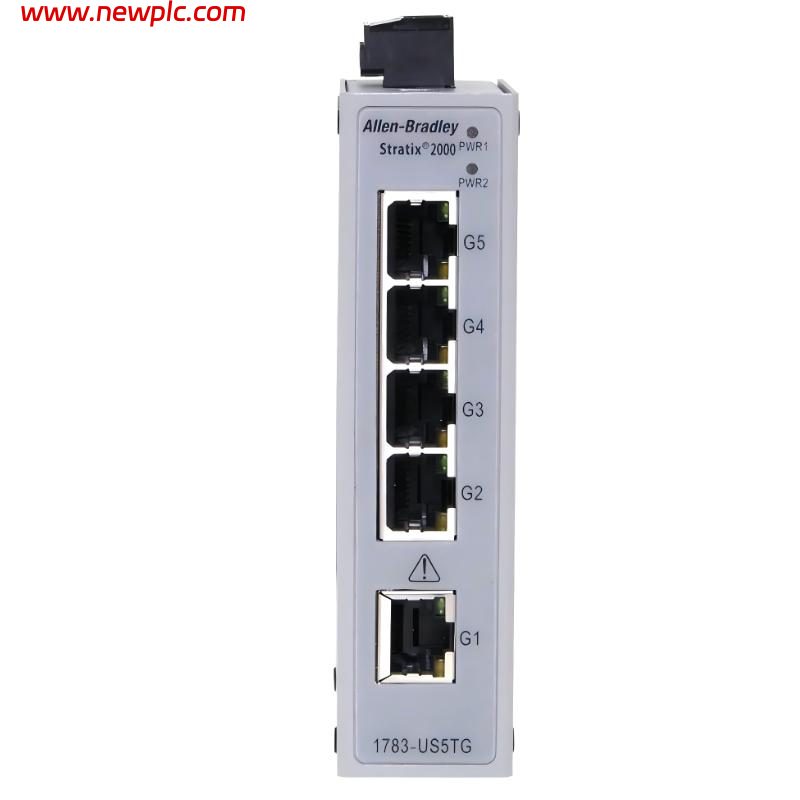

Q2: How many Ethernet ports does the 1783-US5TG/B provide?
A2: The switch includes 5 Gigabit RJ45 copper ports supporting 10/100/1000 Mbps Ethernet communication.
Q3: Is the 1783-US5TG/B a managed or unmanaged switch?
A3: The 1783-US5TG/B is an unmanaged Ethernet switch designed for plug-and-play industrial networking applications without advanced configuration requirements.
Q4: What power supply does the 1783-US5TG/B require?
A4: The switch supports both DC and AC power input, including 12 to 48V DC and 18 to 30V AC operation.

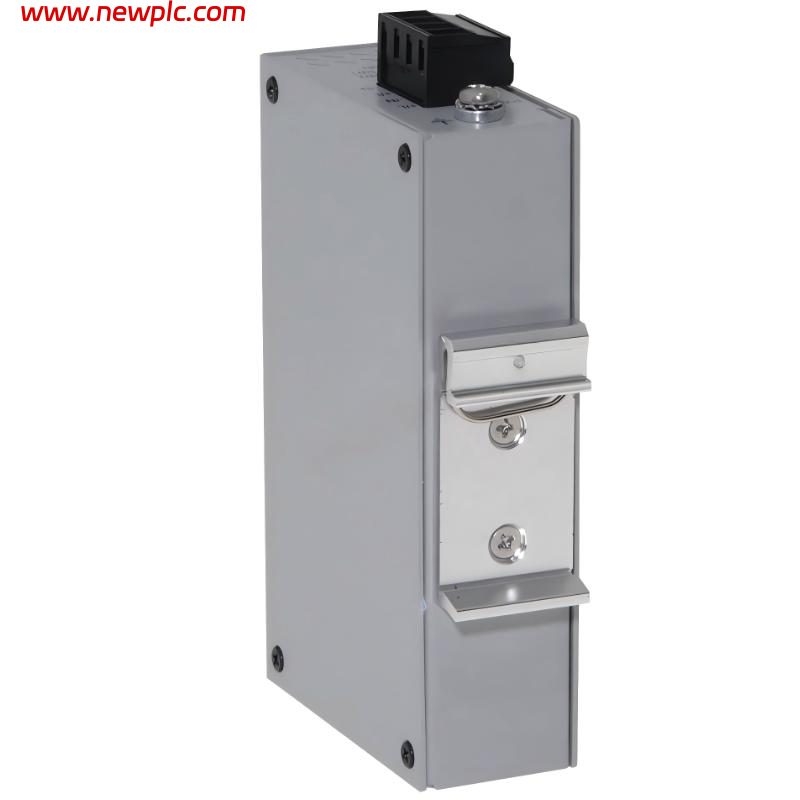

Q5: Can the 1783-US5TG/B be mounted on a DIN rail?
A5: Yes. The switch is designed for DIN rail mounting inside industrial automation cabinets and control panels.
Q6: Is the 1783-US5TG/B suitable for harsh industrial environments?
A6: Yes. The switch features an industrial-grade IP30 metal enclosure and supports operating temperatures from -40°C to 75°C.
Q7: Is the 1783-US5TG/B still available from Rockwell Automation?
A7: No. Rockwell Automation has discontinued the 1783-US5TG/B, and the recommended replacement model is the 1783-USP5TG.
Q8: What are the common applications of the 1783-US5TG/B?
A8: Common applications include factory automation, PLC communication, machine networking, industrial Ethernet expansion, and control cabinet networking.
