Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Stratix 2000 |
| Model Number | 1783-US7T1F/B |
| Product Type | Unmanaged Industrial Ethernet Switch |

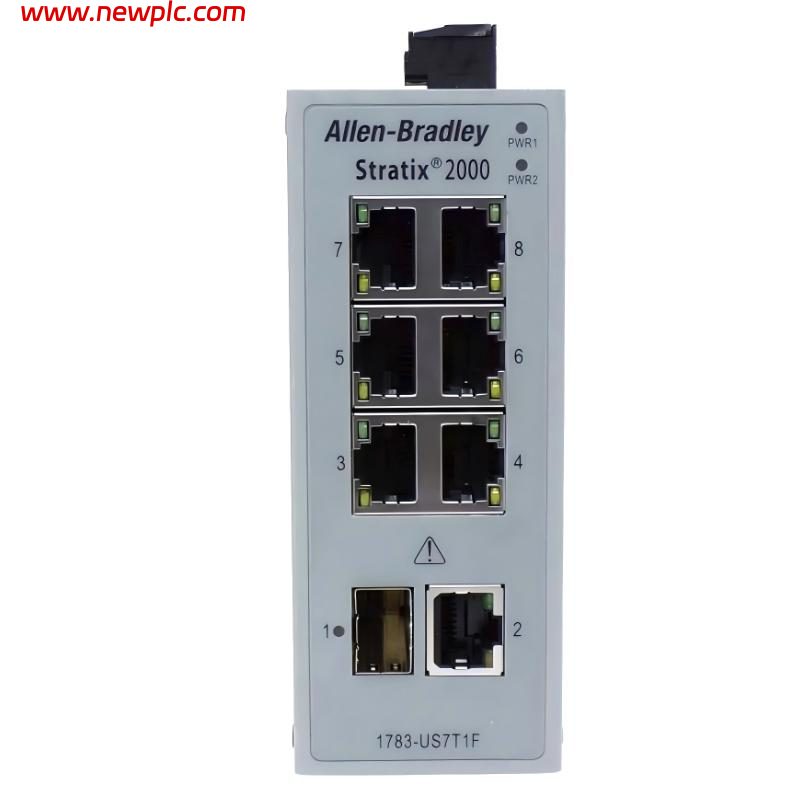

| Total Ports | 8 Ports |
| Copper Ports | 7 x 10/100 Mbps RJ45 Ports |
| Fiber Ports | 1 x 100Base-FX Multimode Fiber Port |
| Fiber Connector Type | LC Connector |
| Communication Speed | 10/100 Mbps |
| Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Switching Method | Store-and-Forward |
| MAC Address Capacity | 1K MAC Addresses |
| Packet Buffer Memory | 448 KB |

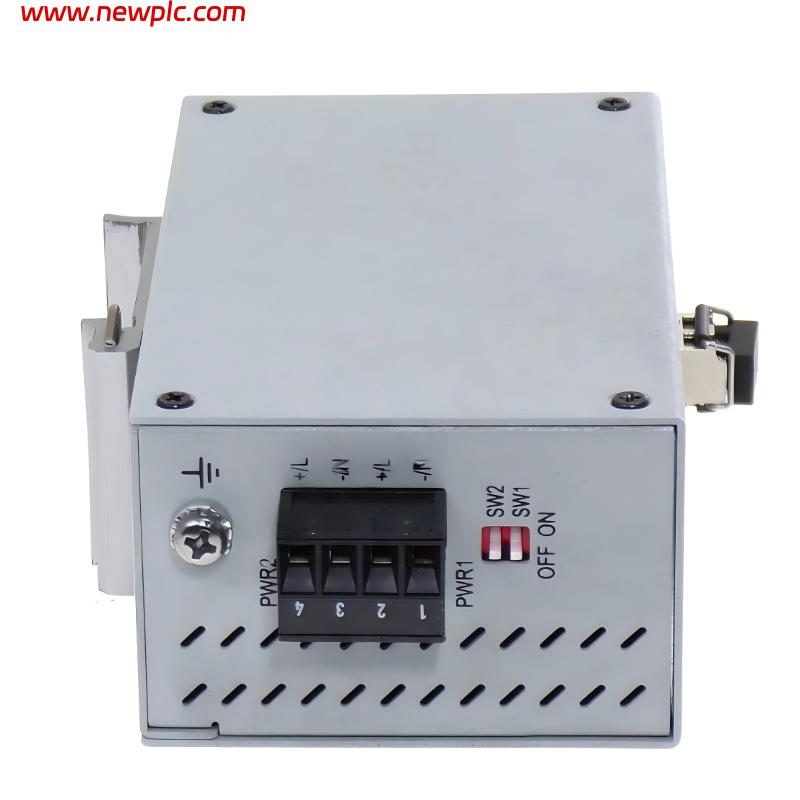

| Power Input Range | 18 to 60V DC / 18 to 30V AC |
| Nominal Input Voltage | 24V AC/DC |
| Redundant Power Inputs | Yes |
| Power Consumption | Approx. 4.6 W |
| Power Dissipation | Approx. 5.9 W |
| Isolation Voltage | 30V Continuous |
| Alarm Relay Output | Yes |
| Network Cabling | CAT5e or Better |
| Fiber Transmission Distance | Up to 2 km |

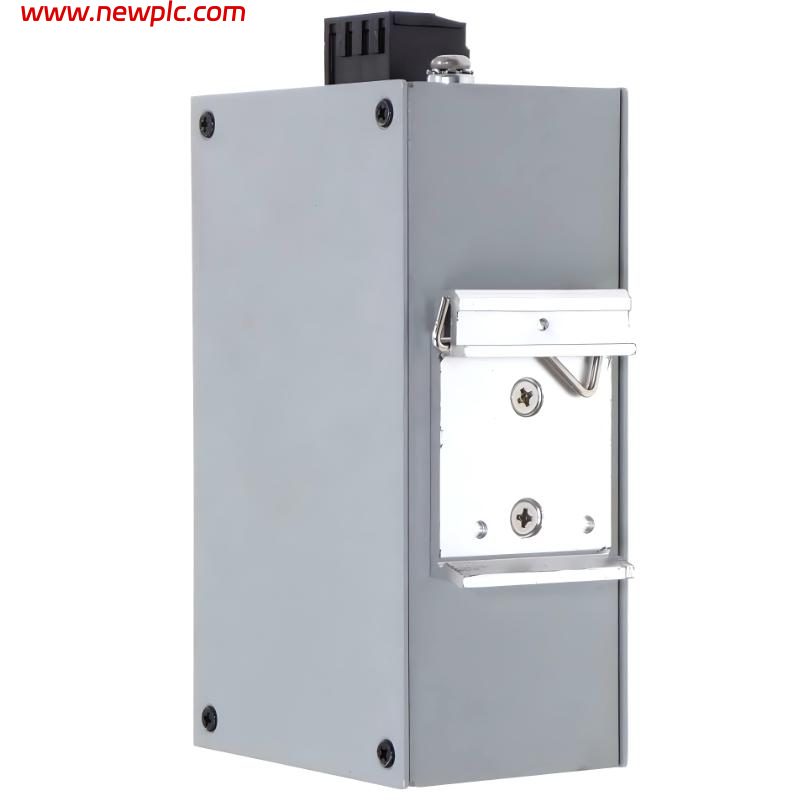

| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style Industrial Housing |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 15 G Operating |
| Vibration Resistance | 2 G at 10 to 150 Hz |
| Dimensions | Approx. 135 x 115.8 x 53.6 mm |
| Weight | Approx. 0.7 kg |
| Certifications | UL, CE, CSA, RoHS |
| Revision Series | Series B |
| Lifecycle Status | Active Mature |
| Typical Applications | Industrial Ethernet Networking, PLC Communication, Fiber Integration |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-US7T1F/B used for?
A1: The 1783-US7T1F/B is an unmanaged industrial Ethernet switch used for connecting PLCs, HMIs, drives, and other industrial automation devices in Ethernet networks with multimode fiber connectivity.
Q2: How many ports does the 1783-US7T1F/B provide?
A2: The switch includes 8 total ports, consisting of seven 10/100 Mbps RJ45 copper ports and one 100Base-FX multimode fiber port.
Q3: What type of fiber connection does the 1783-US7T1F/B use?
A3: The switch uses a 100Base-FX multimode fiber port with an LC fiber connector for industrial fiber optic communication.
Q4: What power supply is required for the 1783-US7T1F/B?
A4: The switch supports both AC and DC power input, including 18 to 60V DC and 18 to 30V AC operation with a nominal 24V input.
Q5: Is the 1783-US7T1F/B a managed or unmanaged switch?
A5: The 1783-US7T1F/B is an unmanaged Ethernet switch designed for plug-and-play industrial networking without advanced configuration requirements.
Q6: Can the 1783-US7T1F/B be mounted on a DIN rail?
A6: Yes. The switch is designed for DIN rail mounting inside industrial automation cabinets and control panels.
Q7: Is the 1783-US7T1F/B suitable for harsh industrial environments?
A7: Yes. The switch features an industrial-grade IP30 enclosure and supports operating temperatures from -40°C to 70°C.
Q8: What are the common applications of the 1783-US7T1F/B?
A8: Common applications include factory automation, PLC communication, industrial Ethernet networking, machine control systems, and fiber optic network expansion.
