Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Stratix 2000 |
| Model Number | 1783-US8T/B |

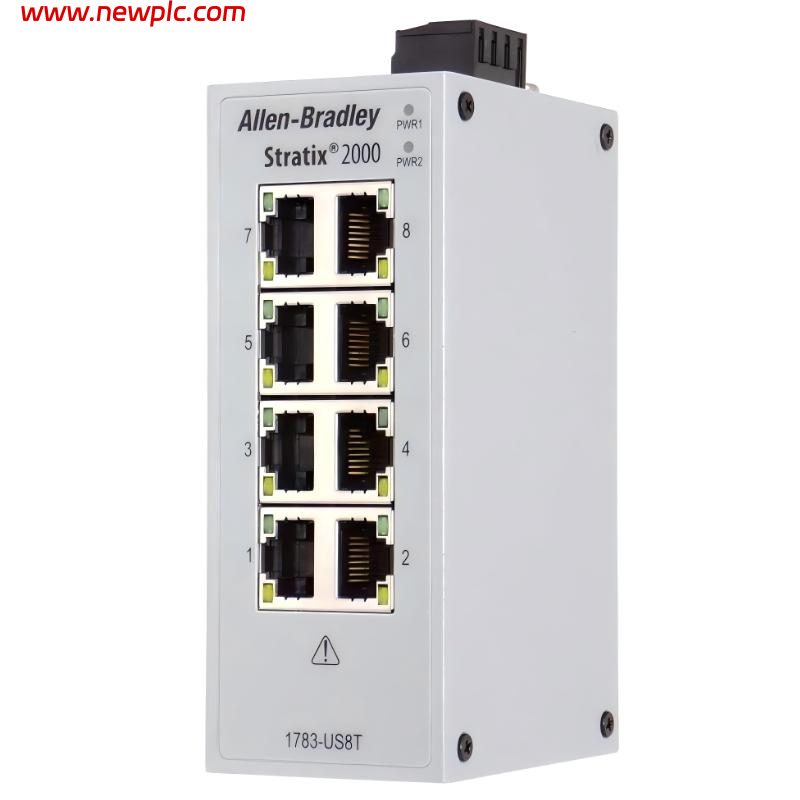

| Product Type | Unmanaged Industrial Ethernet Switch |
| Total Ports | 8 Ports |
| Port Type | 8 x 10/100 Mbps RJ45 Copper Ports |
| Communication Speed | 10/100 Mbps Auto-Negotiation |
| Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Switching Method | Store-and-Forward |
| MAC Address Capacity | 8K MAC Addresses |
| Packet Buffer Memory | 1 Mb |

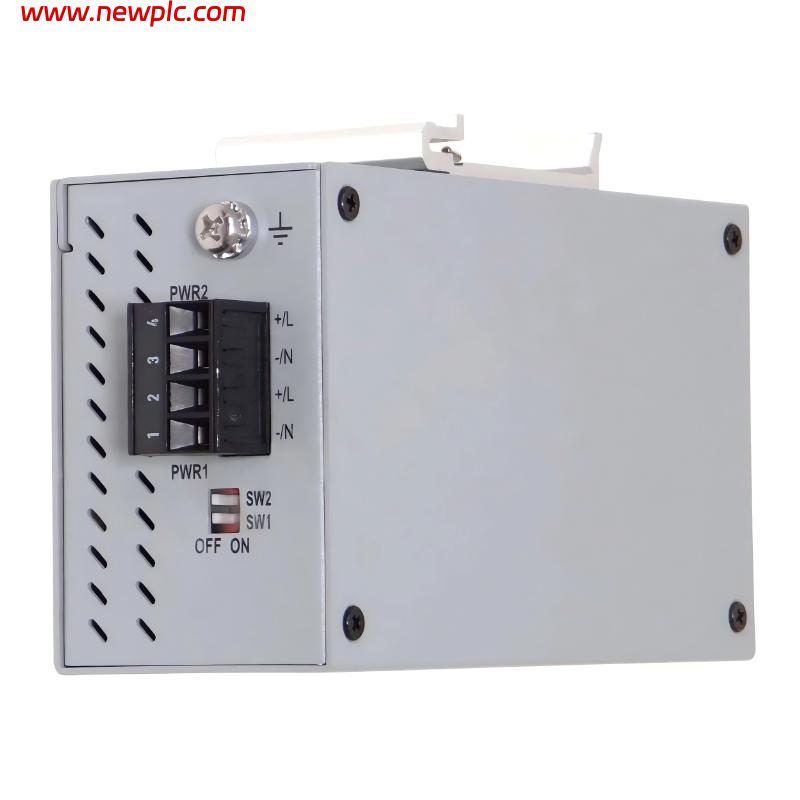

| Power Input Range | 18 to 60V DC / 18 to 30V AC |
| Nominal Input Voltage | 24V AC/DC |
| Redundant Power Inputs | Yes |
| Maximum Power Consumption | Approx. 4.6 W |
| Current Consumption | Approx. 361 mA |
| Inrush Current | Max. 2.2 A |
| Isolation Voltage | 30V Continuous |
| Alarm Relay Output | Yes |
| Network Cabling | CAT5e or Better |

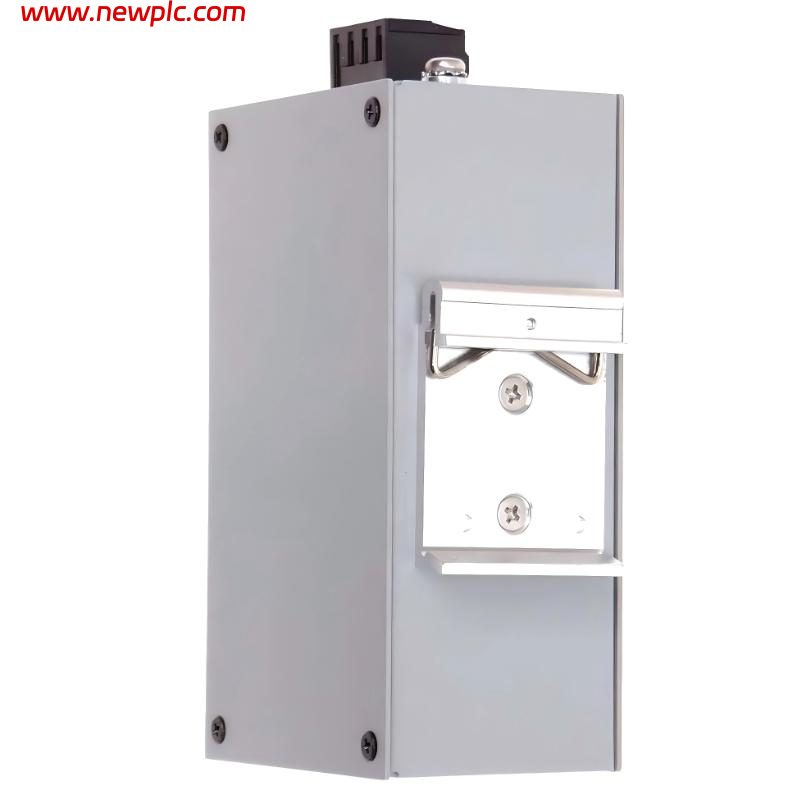

| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style Industrial Housing |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Non-Operating |
| Vibration Resistance | 2 G at 10 to 500 Hz |
| Dimensions | Approx. 114.5 x 76.8 x 45.6 mm |
| Weight | Approx. 0.5 – 0.7 kg |
| Certifications | UL, CE, CSA, RoHS |
| Revision Series | Series B |
| Lifecycle Status | Active Mature |
| Typical Applications | Industrial Ethernet Networking, PLC Communication, Machine Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-US8T/B used for?
A1: The 1783-US8T/B is an unmanaged industrial Ethernet switch designed for connecting PLCs, HMIs, drives, and industrial automation devices within Ethernet networks.
Q2: How many Ethernet ports does the 1783-US8T/B provide?
A2: The switch includes 8 RJ45 copper Ethernet ports supporting 10/100 Mbps communication speeds.
Q3: Is the 1783-US8T/B a managed or unmanaged switch?
A3: The 1783-US8T/B is an unmanaged Ethernet switch designed for simple plug-and-play industrial networking applications.
Q4: What power supply does the 1783-US8T/B require?
A4: The switch supports both AC and DC power input, including 18 to 60V DC and 18 to 30V AC operation with a nominal 24V input.
Q5: Can the 1783-US8T/B be mounted on a DIN rail?
A5: Yes. The switch is designed for DIN rail mounting inside industrial automation cabinets and control panels.
Q6: Is the 1783-US8T/B suitable for industrial environments?
A6: Yes. The switch features an industrial-grade enclosure and supports operation in demanding industrial environments with extended environmental ratings.
Q7: What communication speed does the 1783-US8T/B support?
A7: The switch supports auto-negotiating 10/100 Mbps Ethernet communication on all ports.
Q8: What are the common applications of the 1783-US8T/B?
A8: Common applications include factory automation, PLC communication, machine networking, industrial Ethernet expansion, and industrial control cabinet networking.
