Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | ControlNet Communication Cards |

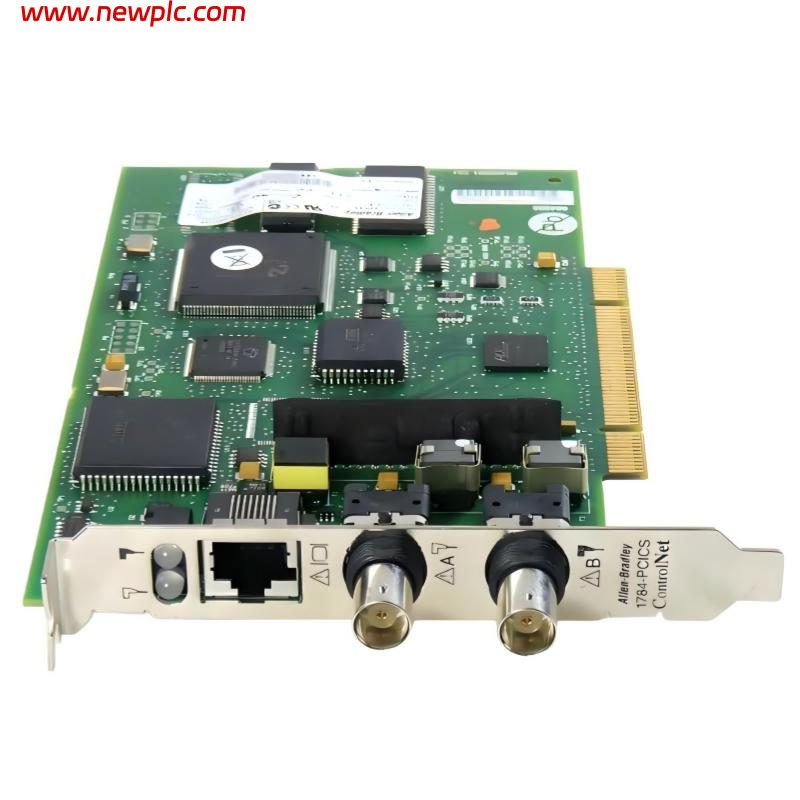

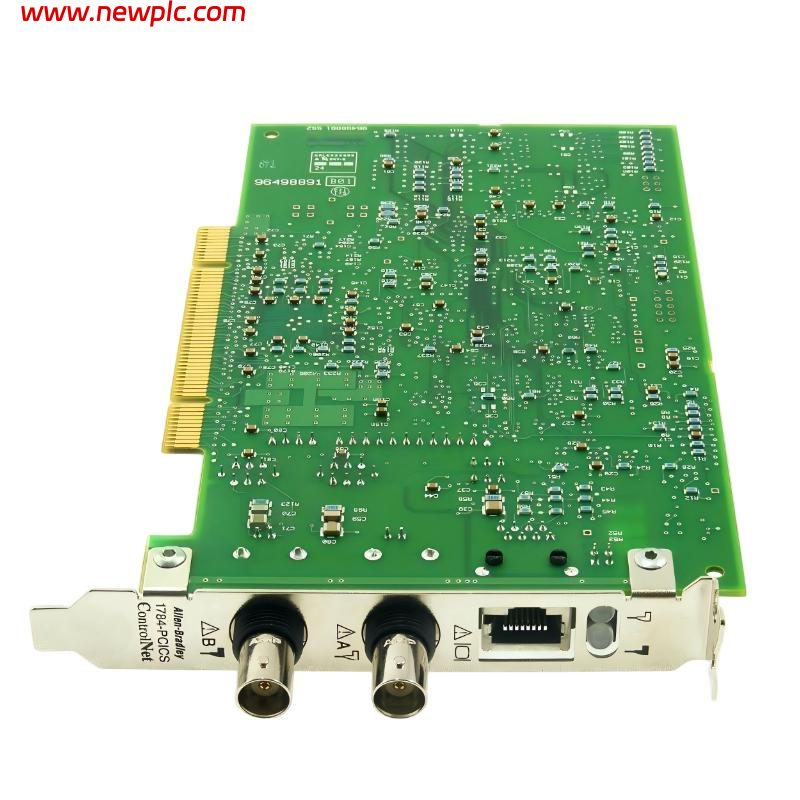

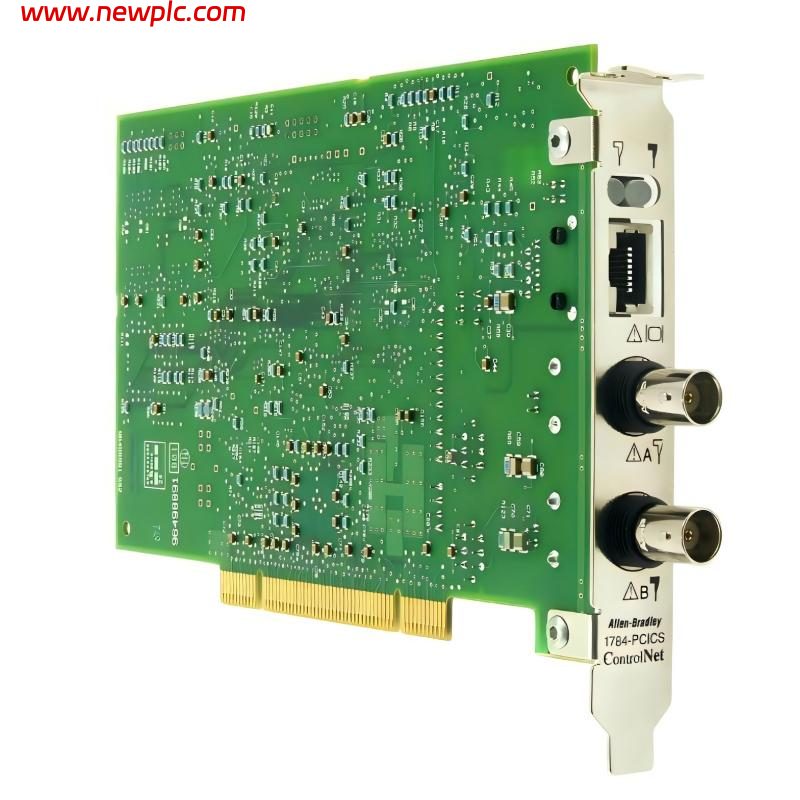

| Model Number | 1784-PCICS |
| Product Type | ControlNet PCMCIA Communication Card |
| Communication Network | ControlNet |
| Card Type | PCMCIA Type II |
| Communication Speed | 5 Mbps |
| Network Connectors | 2 x BNC Connectors |
| Supported Media | RG-6 Quad Shield Coaxial Cable |
| Redundant Media Support | Yes |
| Compatible Computers | Laptop and Portable PCs with PCMCIA Slot |
| Compatible Software | RSLinx, RSNetWorx for ControlNet |
| Supported Operating Systems | Windows-Based Systems |
| Power Supply | Powered Through PCMCIA Slot |
| LED Indicators | Module Status and Network Activity |
| Isolation Voltage | 500V |
| Installation Type | Portable PC Communication Interface |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 2 G at 10 to 500 Hz |
| Certifications | UL, CE |
| Lifecycle Status | Discontinued |
| Dimensions | Approx. 119 x 54 x 16 mm |
| Weight | Approx. 0.12 kg |
| Typical Applications | ControlNet Communication, PLC Programming, Industrial Network Diagnostics |
FAQ
FAQ
Q1: What is the Allen-Bradley 1784-PCICS used for?
A1: The 1784-PCICS is a PCMCIA communication card used to connect laptops and portable computers to ControlNet industrial networks for programming, diagnostics, and monitoring.
Q2: What type of communication network does the 1784-PCICS support?
A2: The card supports ControlNet industrial communication networks operating at 5 Mbps.
Q3: What type of computer slot is required for the 1784-PCICS?
A3: The module requires a PCMCIA Type II slot, commonly found on industrial laptops and older portable computers.
Q4: What connectors are included on the 1784-PCICS?
A4: The card includes two BNC connectors for ControlNet coaxial media connections and redundant network support.
Q5: Which software packages are compatible with the 1784-PCICS?
A5: The card is commonly used with RSLinx and RSNetWorx for ControlNet software applications.
Q6: Is the 1784-PCICS still available from Rockwell Automation?
A6: No. The 1784-PCICS has been discontinued, but refurbished and surplus units are still available from industrial automation suppliers.
Q7: What are the common applications of the 1784-PCICS?
A7: Common applications include ControlNet network diagnostics, PLC programming, industrial communication troubleshooting, and portable engineering workstation connectivity.
Q8: Does the 1784-PCICS support redundant media communication?
A8: Yes. The card supports redundant ControlNet media connections through its dual BNC connectors for improved network reliability.
