Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Data Highway Plus Communication Cards |

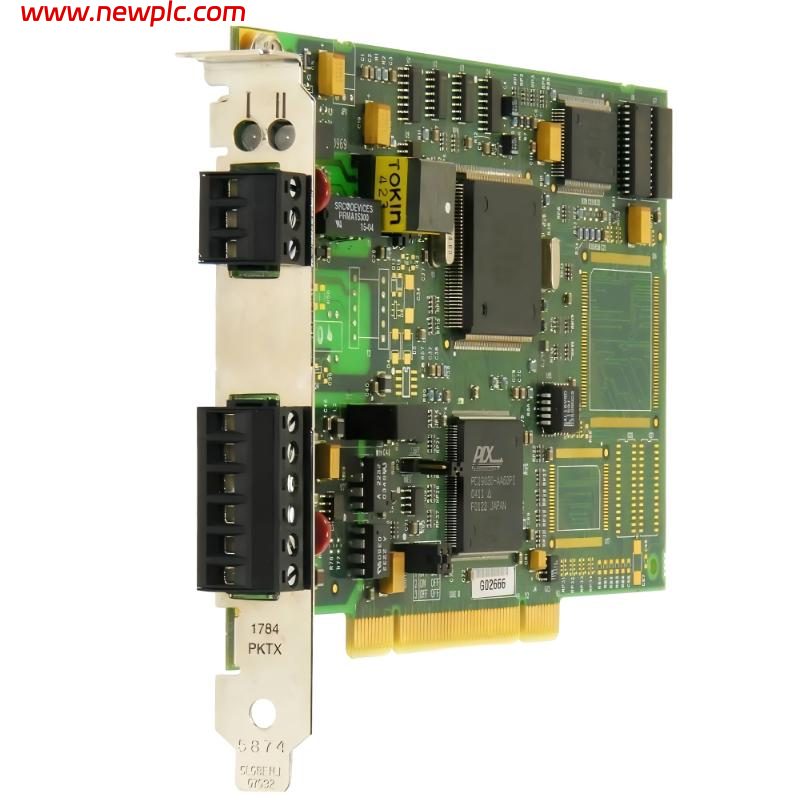

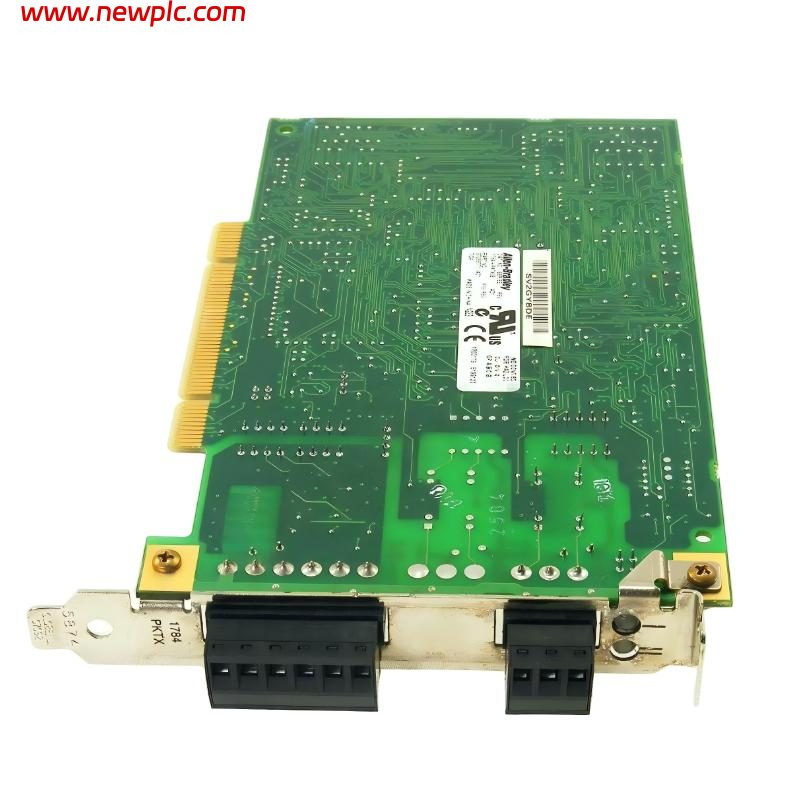

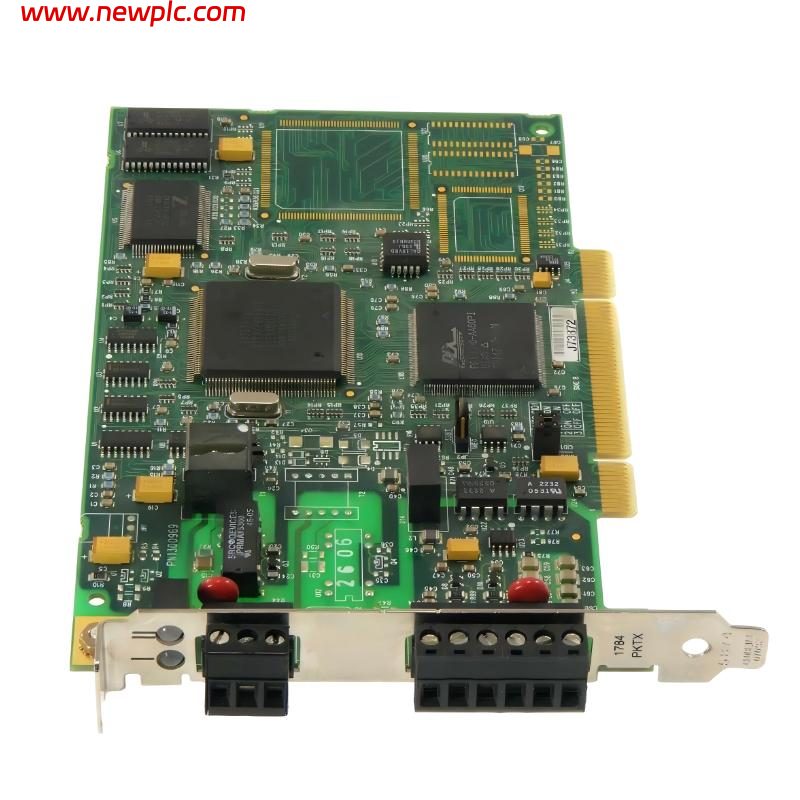

| Model Number | 1784-PKTX |
| Product Type | PCI Communication Interface Card |
| Communication Networks | Data Highway Plus (DH+), DH-485, Remote I/O (RIO) |
| Bus Interface | PCI 2.3 Compliant |
| Communication Channels | Single Channel |
| Channel Configuration | Channel 1A: DH+ / RIO, Channel 1C: DH-485 |
| Communication Speed | 57.6 kbps, 115.2 kbps, 230.4 kbps |
| DH-485 Communication Rate | Up to 19.2 kbps |
| Network Connectors | 3-Pin Phoenix Connector and 6-Pin Phoenix Connector |
| Supported Controllers | PLC-5, PLC-5/250, SLC 5/01, SLC 5/02, SLC 5/03, SLC 5/04 |
| Remote I/O Scanner Support | Yes |
| Compatible Software | RSLinx, RSLogix 5, RSLogix 500 |
| Supported Operating Systems | Windows 95, Windows NT |
| Status Indicators | 1 Diagnostic/Status LED Per Channel |
| Power Supply | Powered Through PCI Bus |
| Required External Power | None |
| Maximum Modules Per System | 4 |
| Coating Type | Conformal Coated |
| Installation Type | Internal PCI Interface Card |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 2 G at 10 to 500 Hz |
| Dimensions | Approx. 115 x 317 x 160 mm |
| Weight | Approx. 0.1 – 0.26 kg |
| Lifecycle Status | Discontinued |
| Typical Applications | PLC Programming, DH+ Communication, Remote I/O Access, Industrial Diagnostics |
FAQ
FAQ
Q1: What is the Allen-Bradley 1784-PKTX used for?
A1: The 1784-PKTX is a PCI communication interface card used to connect industrial computers to Allen-Bradley DH+, DH-485, and Remote I/O networks for PLC programming and diagnostics.
Q2: Which communication networks are supported by the 1784-PKTX?
A2: The card supports Data Highway Plus (DH+), DH-485, and Remote I/O (RIO) industrial communication networks.
Q3: What type of computer slot does the 1784-PKTX require?
A3: The module is designed for installation in a PCI 2.3 compliant slot on an industrial or desktop computer.
Q4: Which Allen-Bradley controllers are compatible with the 1784-PKTX?
A4: The card is compatible with PLC-5, PLC-5/250, and SLC 500 family controllers including SLC 5/01 through SLC 5/04 processors.
Q5: What communication channels are available on the 1784-PKTX?
A5: The card provides Channel 1A for DH+ and Remote I/O communication and Channel 1C for DH-485 communication.
Q6: Is the 1784-PKTX still available from Rockwell Automation?
A6: No. Rockwell Automation officially discontinued the 1784-PKTX on March 31, 2022.
Q7: What software can be used with the 1784-PKTX?
A7: The card is commonly used with Rockwell Automation software including RSLinx, RSLogix 5, and RSLogix 500 for PLC communication and troubleshooting.
Q8: What are the common applications of the 1784-PKTX?
A8: Common applications include PLC programming, industrial communication, Remote I/O access, DH+ networking, factory automation diagnostics, and legacy Allen-Bradley system maintenance.
